XIR-2364FV-B

Eyemax XIR-2364FV-B HD SDI 1080p 2MP IR Bullet Camera With 12 COB IR 6 50 mm Varifocal Lens

XIR-2364FV-B

Original price was: $249.99.Current price is: $185.95.

In stock

Original price was: $249.99.Current price is: $185.95.

Eyemax XIR-2364FV-B HD-SDI 1080P 2MP IR Bullet Camera With 12 COB IR 6~50MM Varifocal Lens.

  • 1/2.9” Sony CMOS
  • 6 ~ 50 mm Auto-Iris Varifocal Lens

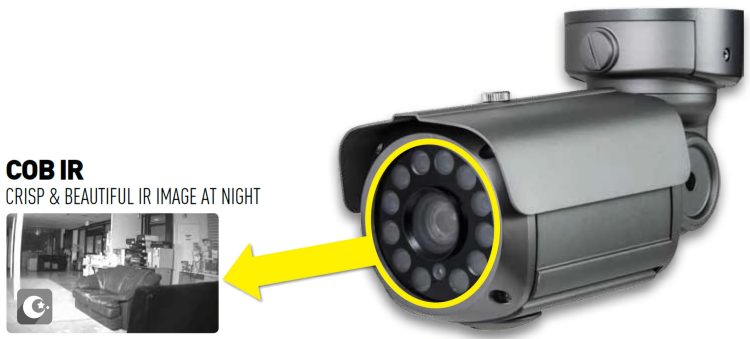

  • 0 Lux at IR On (12 pcs of COB IR LED)
  • Upgraded Waterproof Housing (IP68 Rating)
  • Smart IR
  • DNR (Digital Noise Reduction)
  • True Day and Night (ICR)
  • RS-485 Option

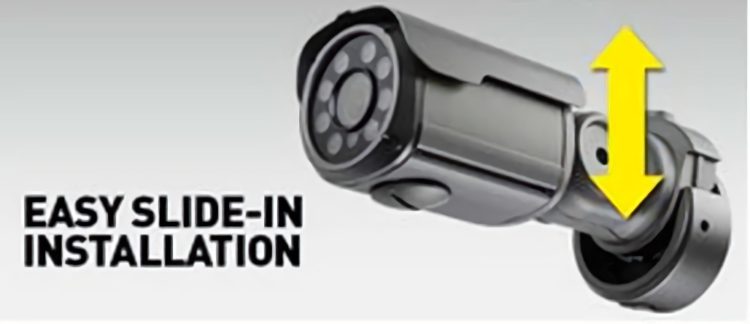

  • Easy Installation
  • DC 12V or AC 24V Dual Power

Compare

Description

Eyemax XIR-2364FV-B HD-SDI 1080p (2MP) IR bullet camera is an excellent surveillance solution for commercial or residential use. This powerful camera features a 12 COB IR (infrared) array, a 6 to 50 mm auto-iris Varifocal lens, and an upgraded IP68 ingress protection housing. The XIR-2364FV-B offers outstanding image quality, even in low-light conditions, with its 0 Lux at IR On (12 pcs of COB IR LED).

The HD-SDI XIR-2364FV-B 1080p (2MP) resolution of the XIR-2364FV-B delivers amazing clarity and detail for all of your surveillance needs. The 12 COB IR LED array produces high-quality images even in total darkness, ensuring you never miss any suspicious activity. Additionally, the 6 to 50 mm Varifocal lens allows you to easily adjust the angle and direction of the camera for your desired coverage area.

The XIR-2364FV-B also boasts an upgraded IP68 ingress protection housing for reliable performance in extreme weather conditions. The camera is also designed with an RS-485 option for convenient control and monitoring. And with the dual power input of DC 12V or AC 24V, you can always ensure that your surveillance system is operating properly.

Overall, the XIR-2364FV-B HD-SDI 1080p (2MP) IR bullet camera is an ideal solution for any surveillance needs. With its superior image quality, adjustable Varifocal lens, and rugged housing, this camera ensures that you get the most out of your surveillance system. Additionally, the dual power input and RS-485 option give you more flexibility and convenience in managing your system.

All in all, the XIR-2364FV-B HD-SDI 1080p (2MP) IR bullet camera is a powerful and reliable surveillance solution. It offers superior image quality, adjustable lenses, durable housing, and flexible installation options. Whether you’re looking for a reliable and convenient solution for your home or business, the XIR-2364FV-B is an excellent choice for all your surveillance needs.

Data Sheet

Download

Eyemax XIR-2364FV-B HD SDI 1080p 2MP IR Bullet Camera With 12 COB IR 6 50 mm Varifocal Lens Datasheet.

Brochure

Download

Eyemax XIR-2364FV-B HD SDI 1080p 2MP IR Bullet Camera With 12 COB IR 6 50 mm Varifocal Lens Brochure

Resolution1080p, 720p, 720p CROP
Sensor1/2.9 inch Sony CMOS
Total Pixels2000(H) × 1241(V) = 2,482,000
Effective Pixels1944(H) × 1092(V) = 2,122,648
Scanning SystemProgressive
S/N (Y Signal)More than 52 dB (AGC Off)
Video OutputSDI/CVBS: 1.0 Vp-p (75 ohm)
Min. IlluminationIR Product: 0 Lux at IR On
General Product: 1 Lux at F1.2/0.1 Lux (B/W)
White BalanceAuto / Auto Ext / Preset / Manual
ShutterAuto/Manual (1/30 sec ~ 1/60,000 sec)
BrightnessAdjustable (0 ~ 20 Step)
Sens UpOFF / × 2 / × 3 / × 4 / × 5 / × 6 / × 7 / × 8
DNROFF / Low / Middle / High
BacklightOFF / WDR / BLC / HLM
ACEOFF / Low / Middle / High
Day & NightAuto (Day <–> Night Time Change), Color, B/W, Extern, MDIR (Search Option)
PrivacyOFF / ON (16 Zone)
MotionOFF / SET
Digital Zoom0 ~ 127
FlipOFF / ON
FreezeOFF / ON
LanguageEnglish, Chinese, Chinese (S), Japanese, Korean
SharpnessAdjustable (0 ~ 10 Step)
DefogOFF / SET
Communication PortRS-485 (Pelco-D)
Smart IRAdjustable (0 ~ 20 Step)
Operating Temp / Humidity30 to 80% relative humidity and temperatures between 14 °F (-10 °C) and 122 °F (50 °C).
Storage Temp / Humidity20 to 90% relative humidity and temperatures between -4 °F (-20 °C) and 140 °F (60 °C)
PowerDC 12V/AC 24V Dual Power
Signal TransmissionThe distant difference is occurred according to cable option and other circumstances. (Coaxial Cable 300M)

Additional information

Weight5 lbs
Dimensions18 × 16 × 8 in
