UIU-P4122
Original price was: $175.99.$104.95Current price is: $104.95.
UIU-P4122 EX-SDI Turret Camera
- 4MP 1440p video at 30 fps
- 2.8 mm or 4.0 mm fixed lens
- IP67 housing with 50 ft (ca. 15 m) IR
- Gray or white finish
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
Description

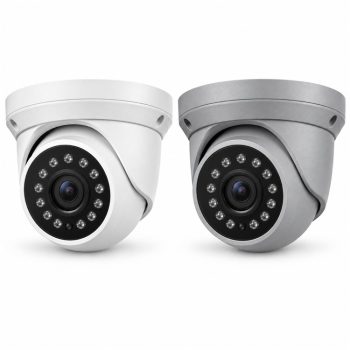

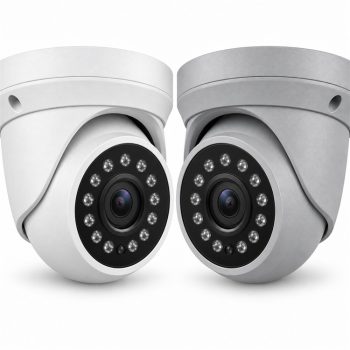

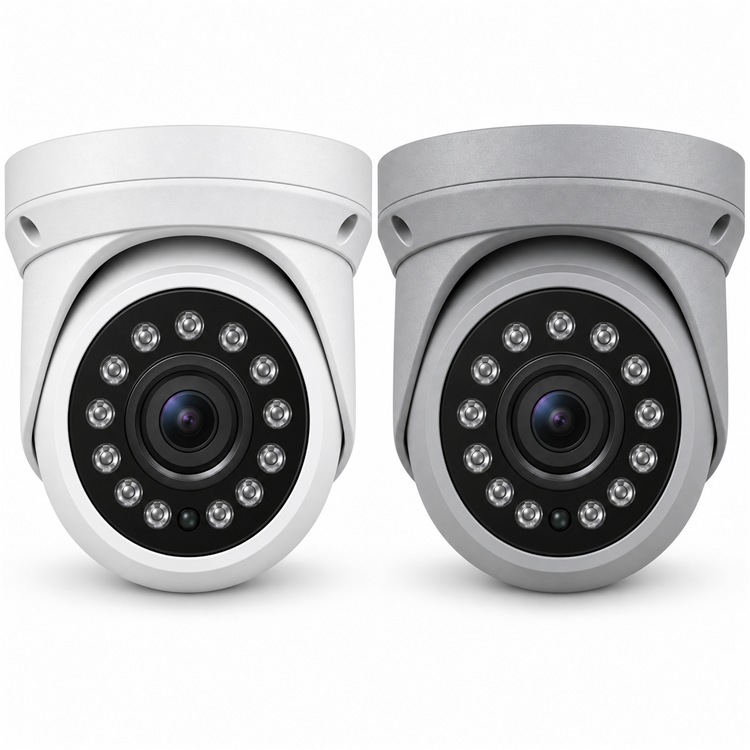

The Eyemax UIU-P4122 EX-SDI turret camera delivers 4MP 1440p video at up to 30 fps. This 4MP EX-SDI security camera uses a Sony IMX335 progressive-scan CMOS sensor for clear footage. As an outdoor turret IR camera and 4MP EX-SDI turret camera, it supports 2.8 mm or 4.0 mm fixed-lens options.
This outdoor turret IR camera uses 20 infrared LEDs to illuminate scenes up to 50 feet (ca. 15 m) away. Therefore, Smart IR balances brightness as people approach the lens, helping keep faces visible at night. Moreover, the weather-resistant design protects the electronics from rain. Its IP67 housing supports reliable indoor or outdoor installation.
In addition, the Eyemax UIU-P4122 turret camera provides WDR, DNR, ACE, BLC, HLC, defog, and Sens-up controls. Installers can adjust brightness, sharpness, motion detection, privacy masks, and image flip. As a result, these tools help produce a balanced picture at entrances, offices, parking areas, and storefronts.
The 4MP EX-SDI turret camera sends video up to 500 meters over suitable 5C-HFBT coaxial cable. Furthermore, it supports HD-SDI transmission up to 100 meters. A CVBS output simplifies setup and service, while 12V DC power fits many existing coaxial surveillance systems. Therefore, installers can reuse compatible infrastructure during many system upgrades.
Meanwhile, the 4MP EX-SDI security camera delivers a signal-to-noise ratio above 52 dB when automatic gain control is off. Flexible picture controls let technicians tune each scene without replacing compatible coaxial cabling or recording equipment. In addition, picture adjustments help maintain detail when lighting conditions change throughout the day.
Choose a gray or white housing to match the installation, then choose the fixed-lens coaxial camera for the required field of view. The compact turret form makes aiming straightforward. Overall, the UIU-P4122 EX-SDI turret camera is a practical fixed lens coaxial camera for compatible surveillance upgrades.
| Resolution | 1440P |
| Lens | Fixed lens 2.8 mm / 4 mm |
| Sensor | 1/2.8-inch SONY CMOS (IMX-335) |
| Pixels | Total : 2704(H) × 2104(V) = 5.69M / Effective : 2616(H) × 1964(V) = 5.14M |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Frame Rate | 4MP@30fps |
| Video Output | SMPTE274M EX-SDI (CVBS) |
| Min.Illumination | 0 Lux at IR On (IR LED 20) |
| White Balance | Auto / Auto Ext / Preset / Manual |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/30,000sec) / FLICKER |
| Function | DNR / ACE / WDR / BLC / HLC / Sens_up / Privacy / Flip / Motion / Defog / RS-485 / Sharpness / Smart IR / Brightness |
| Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| IR Distance | 15M |
| Temperature/Humidity | Operating 14°F (−10°C) ~ 122°F (50°C) / 30% ~ 80% RH Storage −4°F (−20°C) ~ 140°F (60°C) / 20% ~ 90% RH |
| Power | DC 12V |

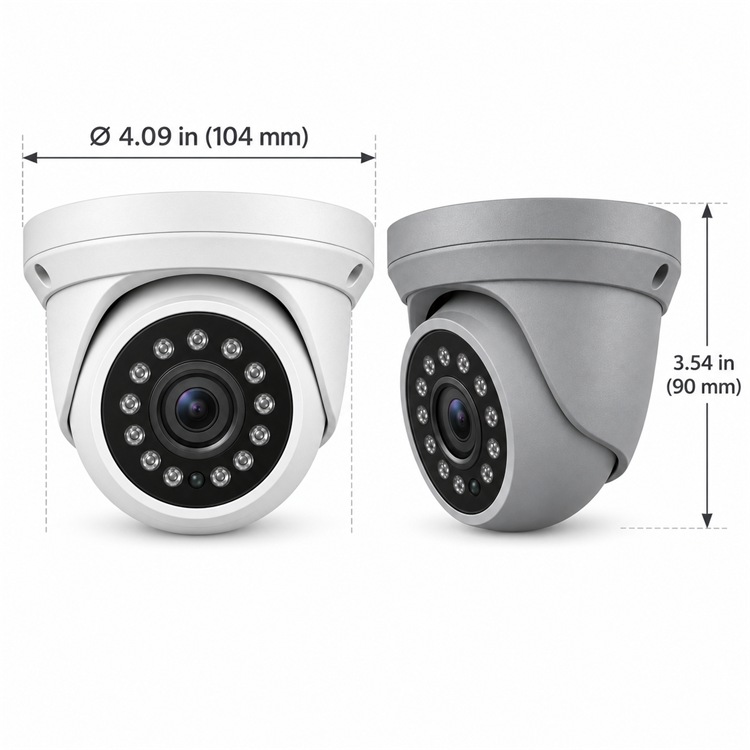

| Dimensions | ∅ 4.09 inches (ca. 10 cm) × 3.54 inches (ca. 9 cm) |
| Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (100M) / EX-SDI (500M)) |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 6 × 5 in |
| Color | Grey, White |
| Lens Size | 2.8mm, 4.0mm |
Brand
Eyemax
