-39%

ACV-8080R

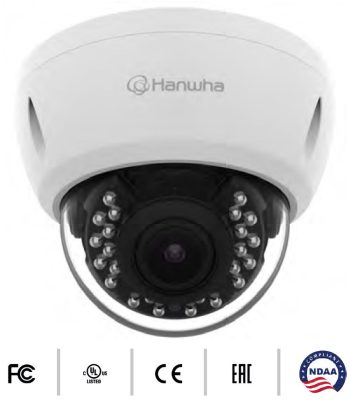

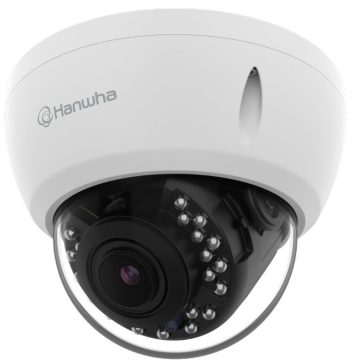

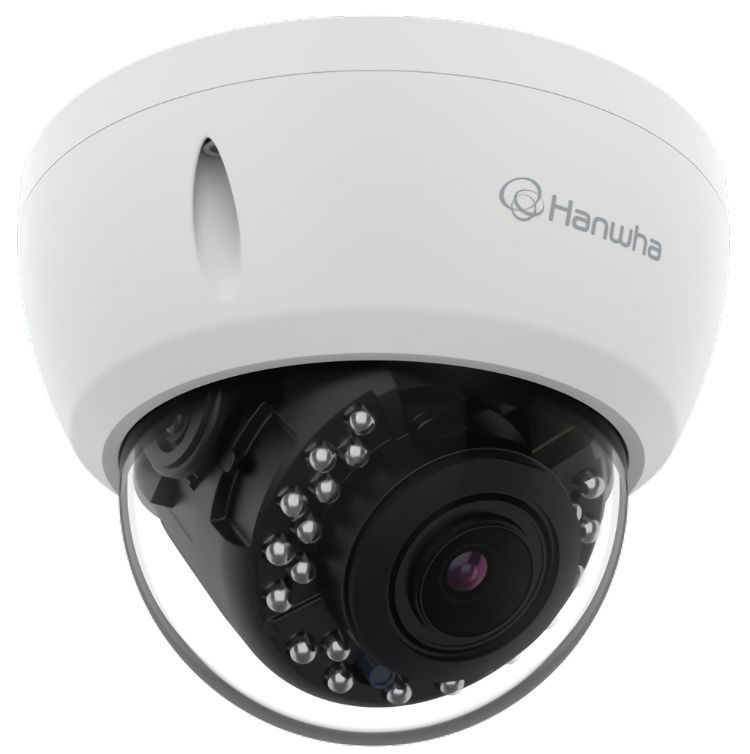

The Hanwha Vision ACV-8080R is a 5MP outdoor analog HD vandal dome security camera belonging to the Wisenet A Series line. It is designed to deliver high-resolution video over existing coaxial cabling infrastructure without requiring an upgrade to an IP network.

ACV-8080R

Original price was: $194.00.Current price is: $118.95.Ea.

In stock

Original price was: $194.00.Current price is: $118.95.Ea.

Hanwha ACV-8080R A-Series 5MP IR Vandal Dome Camera, 3.5-10.5mm Lens

  • 5MP resolution @ 30FPS, 4MP @ CVI
  • 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
  • 4.3mm~10.5mm (2.44x) motorized varifocal
  • Day & Night (ICR), DWDR
  • IR distance 65.62 ft (20 m)
  • IP67, IK10
  • 12V DC power
  • Transmission distance Max.500m
  • Easy installation (plug & play), coaxial control
  • Multi-protocol compatible with AHD, TVI, CVI, CVBS
Hanwha Vision security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

Introducing the Hanwha Vision ACV-8080R, a top-of-the-line 5MP analog HD IR outdoor dome camera from Hanwha Vision. Monitoring and surveillance in any outdoor setting can be provided by this camera. With a 3x motorized Varifocal lens, it can capture images at a smooth 30 frames per second, ensuring clear and crisp footage every time.

Equipped with night vision, the ACV-8080R can capture footage even in low light or complete darkness. A range of up to 20 meters is provided by its high-quality infrared technology. Whether it’s day or night, this camera will ensure that nothing goes unnoticed.

The ACV-8080R also features motion sensing, allowing it to detect any movement within its field of view. This feature is especially useful in high-risk areas, as it can automatically trigger recording or send an alert to the user’s device. Additionally, this camera has pan and tilt capabilities, providing a wider range of coverage and allowing for more dynamic monitoring.

The ACV-8080R is designed for outdoor use and can withstand severe weather and potential damage. With an IP66 and IK10 rating, it is dust-tight, water-resistant, and highly resistant to impact, making it ideal for outdoor installation. It also has a durable casing that can withstand extreme temperatures, ensuring its reliability in any environment.

The versatility of the ACV-8080R is another advantage that sets it apart from other outdoor dome cameras. It can be easily mounted on a ceiling, wall, pole, corner, or parapet, providing flexibility in terms of placement. This allows for a customized monitoring setup, tailored to the unique needs of each user. Overall, the Hanwha Vision ACV-8080R is a top-quality outdoor dome camera that offers exceptional performance, durability, and flexibility, making it an excellent choice for any surveillance system. Provided to you by Collsam Distribution, a trusted provider of top-of-the-line security products.

Datasheet

Download

The Hanwha Vision ACV-8080R is a 5MP outdoor analog HD vandal dome security camera belonging to the Wisenet A Series line. It is designed to deliver high-resolution video over existing coaxial cabling infrastructure without requiring an upgrade to an IP network datasheet.

Video
Imaging Device1/2.5” CMOS
Resolution2592×1944, 2560×1440
Max. Frame rate.Max. 30 fps (@5 MP Max. 20 fps, CVI supports up to 4M)
Min. IlluminationColor : 0.4Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on)
Video OutBNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance300m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)4.3mm~10.5mm (2.44x) motorized varifocal
Max. Aperture Ratio.F1.6
Angular Field of ViewH: 88° (Wide)~34° (Tele)

V: 63° (Wide)~26° (Tele)

D: 112° (Wide)~43° (Tele)

Min. Object Distance.2.62 ft (0.8 m)
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC
Wide Dynamic RangeDWDR
Digital Noise Reduction2D + 3DNR
Gain ControlLOW / MIDDLE / HIGH
White BalanceATW / AWC
Electronic Shutter SpeedAUTO(1/30~1/50,000)
Video RotationMIRROR/V-FLIP/ROTATE
IR Viewable Length20m(65.62ft)
Coaxial ProtocolACP (AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-C (Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity-22 °F (-30 °C) ~ 131°F (55°C) 0~90% RH
Storage Temperature / Humidity-22 °F (-30 °C) ~ 140°F (60°C) 0~90% RH
CertificationIP66, IK10
Input Voltage12VDC
Power ConsumptionMax 7.2W, Typical 5.8W
Mechanical
Color / MaterialWhite / Aluminum / Plastic
Product Dimensions / Weightø 5.20 inches (13.21 cm) x 4.06 inches (10.31 cm), 1.21 lb (0.55 kilogram)
Back boxSBV-A14B
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A)
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
