ACV-8081R

Hanwha Vision ACV-8081R 5MP vandal-resistant dome camera with IR, WDR, 3x zoom, NDAA compliance, and quad-hybrid output.

ACV-8081R

Original price was: $283.00.Current price is: $178.95.Ea.

In stock

Original price was: $283.00.Current price is: $178.95.Ea.

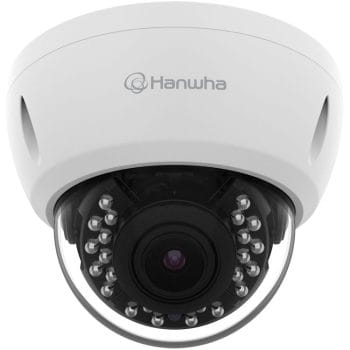

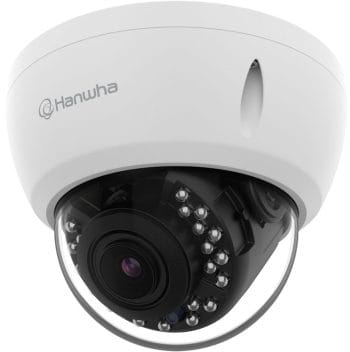

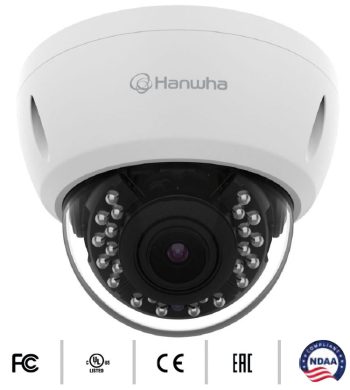

Hanwha ACV-8081R 5MP Multi-protocol IR Vandal Dome Camera 3.5-10.5mm Varifocal Lens

  • 5MP resolution @ 30FPS, 4MP @ CVI
  • 0.08Lux@F1.6(Color), 0Lux(B/W: IR LED on)
  • 3.5mm~10.5mm (3x) motorized varifocal
  • Day and Night (ICR), WDR
  • IR distance 20m(65.62 ft )
  • IP67 Ingress Protection
  • IK10 Vandal Resistance
  • 12V DC power
  • Transmission distance Max.500m
  • Easy installation (plug and play), coaxial control
  • Multi-protocol compatible with AHD, TVI, CVI, CVBS
Hanwha Vision security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The Hanwha Vision ACV-8081R is a powerful 5MP analog HD outdoor dome security camera. It is designed to deliver sharp, reliable surveillance in demanding environments. Built with a rugged vandal-resistant housing, it combines high-resolution imaging with durable protection. Therefore, it makes a strong choice for commercial properties, public spaces, and other high-risk installations.

With 5 megapixels of resolution at up to 30 frames per second, the ACV-8081R captures detailed video that helps improve identification and monitoring. Its 3.5 mm to 10.5 mm motorized varifocal lens provides a flexible 3x optical zoom. As a result, installers can adjust the field of view for wide-area coverage or tighter focus on key zones.

This camera is multi-protocol compatible and supports AHD, TVI, CVI, and CVBS formats. It offers seamless integration with various analog and high-definition video systems over coaxial cabling. That quad-hybrid output makes it especially practical for system upgrades, retrofit projects, and mixed-technology environments where compatibility is essential.

For low-light performance, the ACV-8081R includes built-in infrared LEDs that illuminate scenes up to 65.6 feet (19.99 m). This helps maintain visibility in complete darkness. It also features Wide Dynamic Range to balance challenging backlighting. Furthermore, 2D and 3D noise reduction produce cleaner, more usable footage in dim or grainy conditions.

Engineered for harsh outdoor use, the camera carries IP66/IP67 ingress protection and an IK10-rated vandal-resistant enclosure for dependable operation against weather and tampering. It runs on standard 12V DC power and consumes approximately 7.2 watts. Thus, it is efficient as well as durable.

The ACV-8081R is also fully NDAA compliant, making it suitable for United States federal government and defense applications. With its combination of advanced imaging, flexible compatibility, and rugged construction, this camera is a versatile surveillance solution built for long-term performance.

Datasheet

Download

Hanwha Vision ACV-8081R 5MP vandal-resistant dome camera with IR, WDR, 3x zoom, NDAA compliance, and quad-hybrid output datasheet.

User’s Manual

Download

Hanwha Vision ACV-8081R 5MP vandal-resistant dome camera with IR, WDR, 3x zoom, NDAA compliance, and quad-hybrid output User’s Manual.

Video
Imaging Device1/2.8” CMOS
Resolution2592×1944, 2560×1440
Max. FramerateMax. 30 fps (@ 5 MP Max. 20fps)
Min. IlluminationColor: 0.06Lux (F1.6, 1/30sec) B/W: 0Lux (IR LED on)
Video OutBNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance300m (5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)3.5mm~10.5mm (3x) motorized varifocal
Max. Aperture Ratio.F1.6
Angular Field of ViewH: 82° (Wide) ~ 27° (Tele), V: 60° (Wide) ~ 20° (Tele), D: 105° (Wide) ~ 33° (Tele)
Min. Object Distance.0.8m (2.62ft)
Operational
Day and NightAuto (ICR)
Backlight CompensationBLC, WDR
Wide Dynamic Range95dB
Digital Noise Reduction2D + 3DNR
Gain ControlLOW / MIDDLE / HIGH
White BalanceATW / AWC
Electronic Shutter SpeedAUTO (1/30~1/30,000)
Video RotationMIRROR / V-FLIP / ROTATE
IR Viewable Length25m (82.02ft)
Coaxial ProtocolACP (AHD Coax Protocol), TCP (TVI Coax Protocol), CCP (CVI Coax Protocol), CVBS: Pelco-C (Coaxitron)
RadiometryTemperature Detect Range: None, Temperature Accuracy: None, Temperature Detection: None
Environmental and Electrical
Operating Temperature / Humidity-22°F (-30°C) ~ 131°F (55°C ) / 0~90% RH
Storage Temperature / Humidity -22°F (-30°C )~140°F (60°C) / 0~90% RH
CertificationIP66, IK10
Input Voltage12VDC
Power ConsumptionMax 7.2W, Typical 5.8W
Mechanical
Color / MaterialWhite / Aluminum / Plastic
Product Dimensions / Weightø 5.20 inches (13.21 cm) x 4.06 inches (10.31 cm), 1.21 lb (0.55 kg).
BackboxSBV-A14B
Certifications and Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A)
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
