Name: UAC-D125-AF28M
SKU: UAC-D125-AF28M
Availability: InStock

-56%

Upgrade your surveillance system with the Uniview UAC-D125-AF28M, a 5MP LightHunter HD Fixed IR Vandal Dome Analog Camera. With advanced technology and rugged design, it delivers high-quality footage in any environment. 4-in-1 compatibility and a built-in microphone make it a versatile choice. Get crystal-clear images day and night with LightHunter technology and an IR illuminator. IK10-rated and IP67 weatherproof for ultimate durability. Shop now!

UAC-D125-AF28M

0 out of 5

( There are no reviews yet. )

Original price was: $149.00.Current price is: $64.95.

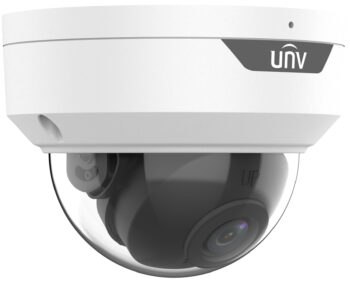

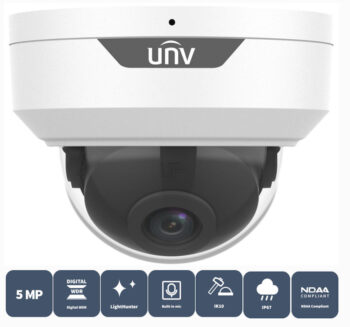

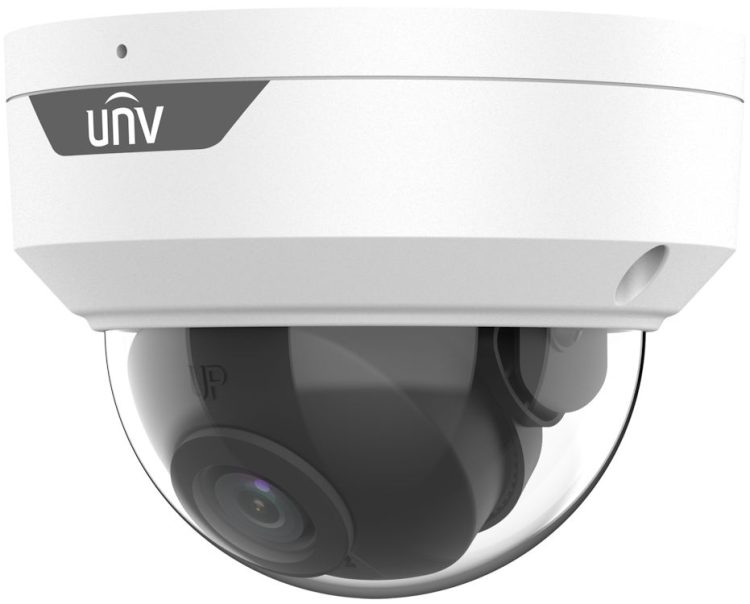

UNV UAC-D125-AF28M 5MP LightHunter HD IR Fixed Dome Analog Camera

High-quality imaging with 5MP resolution
TVI/AHD/CVI/CVBS
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with a high-sensitivity sensor
Supports 180° horizontal/vertical flip
OSD configuration menu, easy to operate
Water- and dust-resistant (IP67) and vandal-resistant (IK10)
OSD configuration menu in 11 languages
Built-in microphone for high-quality audio transmission via coaxial cables
Metal base and metal housing
3-Axis

SKU: UAC-D125-AF28M Categories: 5-Megapixel HD Coaxial Cameras, HD Coaxial Cameras Tags: 1/2.7". 5Megapixel Progressive-scan CMOS Sensor, 3-Axis Construction, 4.0 Megapixel Progressive Scan CMOS Sensor, AWB (Auto White Balance), BLC Backlight compensation, Built-in Microphone, Coaxial Cameras, ColorHunter, D-WDR Digital Wide Dynamic Range, H.265 H.264 and M-JPEG, HD Coaxial Cameras NDAA, HDCVI/AHD/TVI/CVBS IP Camera Auto-detect, IK10 Vandal Resistance, IP67 Ingress Protection, NDAA Compliant;, Ultra 265

Description

Introducing the Uniview UAC-D125-AF28M, a cutting-edge 5MP LightHunter HD Fixed IR Vandal Dome Analog Camera. It is designed to provide high-definition surveillance over traditional coaxial cable setups. In fact, this camera is part of the Uniview Whale Series, and it serves as an excellent upgrade path for legacy BNC systems.

It features advanced modern image technology packed into a rugged, analog form factor. Therefore, this camera brings top-of-the-line surveillance capabilities to traditional setups.

Boasting a 5MP resolution running at 25 frames per second, this camera delivers crisp and clear video output at $2880 \times 1620$ resolution. The 2.8 mm fixed focal lens provides an expansive horizontal field of view. This ensures that no detail goes unnoticed.

Additionally, with built-in LightHunter technology, this camera utilizes a high-sensitivity 1/2.7” CMOS sensor and an $F1.6$ wide aperture. As a result, it retains vivid color details even in low-light conditions as low as 0.005 lux.

This camera also features one IR illuminator, providing smart black-and-white night imaging up to 98 feet (29.87 m) in absolute darkness. So even in the darkest of environments, you can rest assured that this camera will capture clear and detailed video footage. In addition, with its versatile 4-in-1 capability, this camera supports TVI, AHD, CVI, and CVBS video standards. Therefore, integration with nearly any DVR/XVR system is easy.

In addition to its impressive video capabilities, the Uniview UAC-D125-AF28M also comes equipped with a built-in microphone that supports Audio-over-Coax (AoC). This means that crystal-clear synchronized audio can be transmitted alongside video through your existing coaxial cable. Therefore, it is a convenient and cost-effective option for audio surveillance.

Not only is this camera technologically advanced, but it is also built to withstand harsh environments. With an IK10-rated vandal-proof metal housing, it is protected against targeted physical impacts and tampering.

Plus, with an IP67 weatherproof rating, it is completely dust-tight and can survive extreme rain or temporary submersion. For easy installation, it employs a 3-axis gimbal mechanism. This allows installers to flexibly rotate, pan, and tilt the inner camera module.

Datasheet

Download

Upgrade your surveillance system with the Uniview UAC-D125-AF28M, a 5MP LightHunter HD Fixed IR Vandal Dome Analog Camera. With advanced technology and rugged design, it delivers high-quality footage in any environment. 4-in-1 compatibility and a built-in microphone make it a versatile choice. Get crystal-clear images day and night with LightHunter technology and an IR illuminator. IK10-rated and IP67 weatherproof for ultimate durability, datasheet.

Camera
Max Resolution	5 MP
Sensor Size	1/2.7” CMOS
Min. Illumination	0.005 lux (F1.6, AGC ON) 0 lux (IR on)
Lens
Focus	2.8 mm	4.0 mm
Lens Mount	M12
Angle of View (H)	109.1°	91.3°
Angle of View (V)	60.9°	46.1°
Angle of View (D)	126.7°	109.6°
Illuminator
Illuminator Number	One IR illuminator
Illumination Distance	30m
Lifetime	≥ 60000 hours
Video
Resolution	5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Frame Rate	TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, and DWDR
Day/Night	Three modes: Auto (default), Day, and Night
Digital Noise Reduction	2D
White Balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip
Digital Defog	N/A
Audio
Built-in Mic	Support
Camera Audio	TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4 KV for power, 4 KV for video output interfaces
Ingress Protection	IP67 Ingress Protection
IK Rating	IK10 Vandal Resistance
General
Power	DC 12 V ± 25%
Power Consumption	MAX 3.3W
Mount	Wall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount

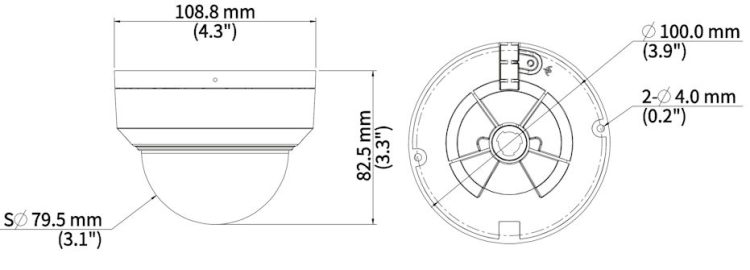

Dimensions (diameter x height)	Φ 4.30 inches (10.92 cm) x 3.27 inches (8.31 cm)
Material	Metal
Weight	0.82 lb (0.37 kg)

Additional information

Weight	2 lbs
Dimensions	6 × 6 × 5 in

Brand

NDAA

NDAA-compliant security products help organizations meet federal procurement requirements for covered telecommunications and video surveillance equipment. Section 889 of the FY2019 National Defense Authorization Act restricts federal procurement and contracting involving certain covered equipment and services. Collsam Security offers government security cameras, compliant NVRs, government security equipment, networking products, access control equipment, and surveillance accessories for professional applications. Government security cameras support federal, state, local, education, healthcare, transportation, and critical infrastructure surveillance projects. Compliant NVRs provide recording, storage, playback, and management for compatible IP camera systems. Government security equipment is available from Collsam Security for professional installations, system upgrades, and government-related security projects.

NDAA-Compliant Security SolutionsNDAA compliance is an important consideration for many federal, state, local government, education, transportation, healthcare, and critical infrastructure security projects.Section 889 RequirementsSection 889 restricts federal agencies from procuring or contracting for systems that use covered telecommunications equipment or services as a substantial or essential component, unless an applicable exception or waiver applies.NDAA-Compliant Security CamerasSecurity cameras identified as NDAA compliant can support government and commercial surveillance projects that require equipment sourced outside the covered categories addressed by Section 889.NDAA-Compliant NVRsNDAA-compliant network video recorders provide recording, storage, playback, and surveillance management for compatible IP camera systems.Government Security EquipmentGovernment security projects may require additional product documentation, manufacturer verification, contract clauses, and agency-specific procurement review.Professional Surveillance SystemsNDAA-compliant equipment can support surveillance systems for government buildings, schools, utilities, transportation facilities, healthcare locations, commercial properties, and critical infrastructure.NDAA Products at Collsam SecurityCollsam Security offers security products for customers seeking NDAA compliant surveillance and security solutions. Product eligibility should be confirmed for the specific procurement, contract, and agency requirements before purchase.

Uniview

Uniview security cameras include IP surveillance cameras for homes, businesses, and large video security projects. Available styles include bullet, turret, dome, panoramic, and PTZ models. These cameras support indoor, outdoor, and low-light monitoring. Uniview NVR systems serve as video surveillance recorders for compatible network cameras. Selected hybrid DVR models also support several analog video formats. Installers can pair Uniview security cameras with recorders, storage drives, PoE switches, mounting brackets, and junction boxes. IP surveillance cameras may include infrared light, full-color night viewing, wide dynamic range, audio, and remote access. Some models can also identify people or vehicles. Uniview NVR systems come in several channel counts and storage sizes. Choose video surveillance recorders based on camera support, resolution, bandwidth, recording schedules, and storage needs. Product features vary by model. Confirm system support before buying.

Uniview Professional Video Surveillance

Uniview develops professional video-surveillance products for homes, stores, offices, warehouses, schools, industrial facilities, and enterprise environments. The product range supports new installations, system expansions, and replacement projects.

Network and Analog Security Cameras

Available camera styles include:

Bullet cameras
Turret cameras
Dome cameras
PTZ cameras
Panoramic and multi-sensor cameras
Thermal cameras
Wireless cameras
Analog HD cameras
Full-color and low-light cameras
Active-deterrence cameras

Camera features vary by model. Options may include infrared illumination, full-color night imaging, wide dynamic range, motorized lenses, audio, smart motion detection, human and vehicle classification, weather-resistant housings, and Power over Ethernet.

Network and Digital Video Recorders

Uniview recorders are available for small, medium, and large surveillance installations. Product options include network video recorders for IP cameras and hybrid digital video recorders for compatible analog and network cameras.Recorder selection should consider:

Required camera channels
Camera resolution
Incoming bandwidth
Hard-drive capacity
Recording schedule
Required retention time
PoE port requirements
Display outputs
Remote-access requirements
Supported analytics

Video Storage and Transmission

Compatible system components may include surveillance storage, disk enclosures, network switches, cables, wireless transmission equipment, and other networking products. Always verify the maximum storage capacity and compatible hard-drive models supported by the recorder.

Mounts and Installation Accessories

Uniview installation accessories include junction boxes, wall mounts, pole mounts, corner mounts, pendant mounts, extension pipes, weather-resistant cable seals, and recorder accessories. Select accessories according to the exact camera or recorder model.

System Compatibility

Confirm camera, recorder, firmware, storage, mounting, power, and network compatibility before installation. Features and specifications vary between product series and models.Uniview security cameras, recorders, storage products, and installation accessories are available at Collsam Security.
