UAC-T145-AF28LM-DL
Original price was: $179.00.$72.95Current price is: $72.95.

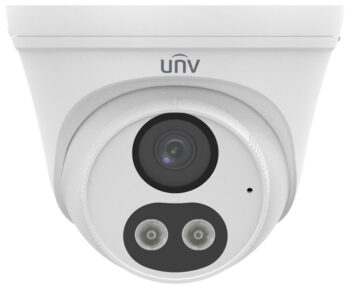

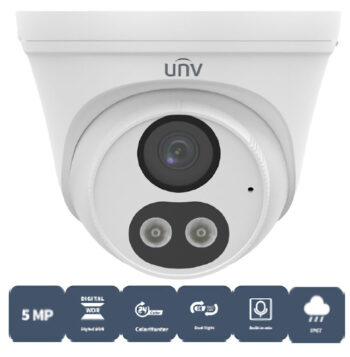

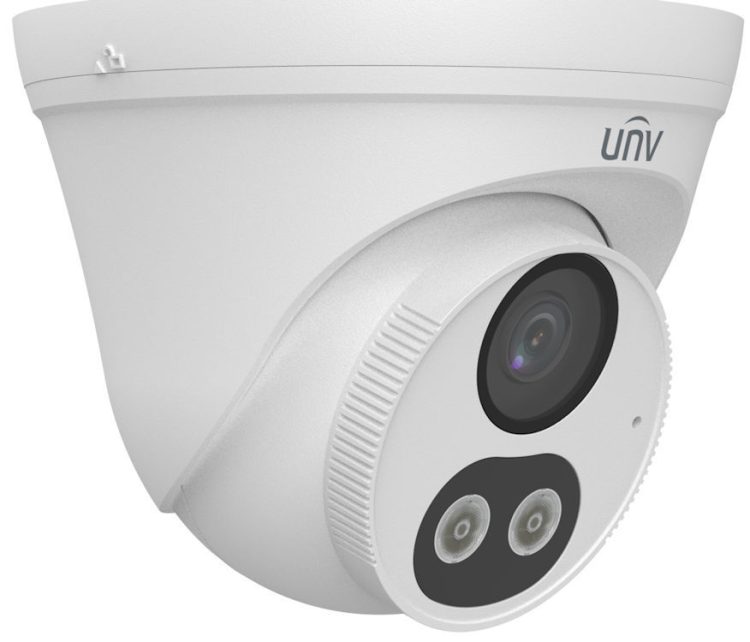

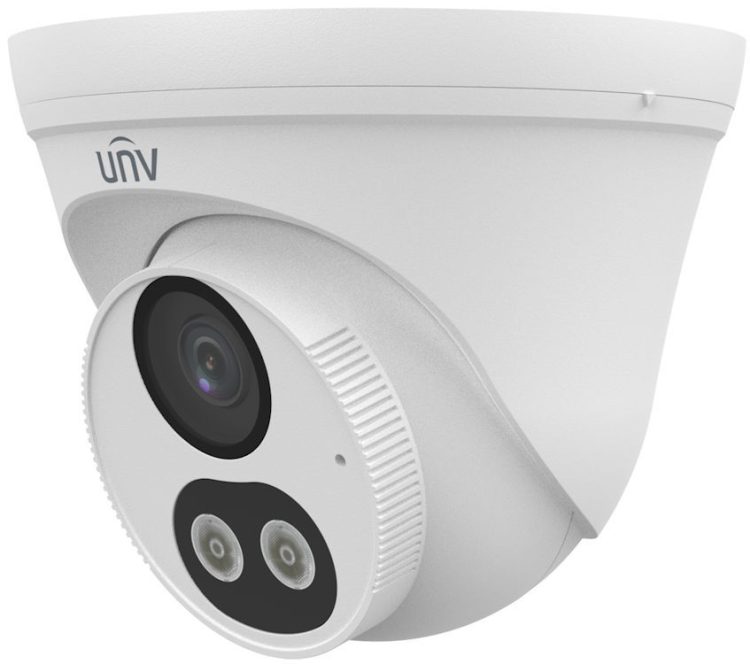

Uniview UAC-T145-AF28M-DL 5-Megapixel Dual Light Analog Turret 2.8mm
- High-quality imaging with 5MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR cut filter with auto switch (ICR)
- Smart Dual Light
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high-quality audio transmission via coaxial cables
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Uniview UAC-T145-AF28LM-DL is a 5MP ColorHunter turret analog camera that is a perfect choice for high-definition surveillance. It is part of the Uniview Whale series and is compatible with major analog formats, including TVI, AHD, CVI, and CVBS. This feature makes it a versatile option for existing BNC (coaxial) systems. Additionally, integrating it is simple. You do not need any additional equipment.
With its 5MP high-resolution imaging, this camera delivers clear video with a maximum resolution of 25 frames per second. This ensures that all the details are well documented, which makes it simpler to spot any suspicious activity.
The camera also features Smart Dual Light Technology, which includes both infrared (IR) and white light illuminators. With a range of up to 131 feet (39.93 m), this camera can provide flexible night vision options. It is suitable for any environment.
One of the most impressive features of the Uniview UAC-T145-AF28LM-DL is its intelligent switch to white light upon detecting a target. When used with a UNV XVR, the camera can automatically switch to white light.
As a result, it can capture full-color forensic details. This is a valuable feature, especially in low-light scenarios, as it provides enhanced visibility. It also makes it easier to identify objects and individuals in the footage.
A 2.8 mm fixed lens on the Uniview UAC-T145-AF28LM-DL offers a broad horizontal field of view of 110.0°. This makes it suitable for capturing a broad area and offers maximum coverage with minimal blind spots. This feature is particularly useful for surveillance in large spaces such as parking lots, warehouses, and open outdoor areas.
In addition to its advanced surveillance features, the Uniview UAC-T145-AF28LM-DL also offers audio over coax (AoC) capabilities. It comes with a built-in microphone that transmits high-quality audio through the same coaxial cable as the video. This feature eliminates the need for separate audio cables, simplifying the installation process and reducing costs.
This camera is also designed to endure harsh weather conditions because it has an IP67 rating for waterproof and dustproof performance. To ensure that the camera can operate smoothly in all weather conditions, providing round-the-clock surveillance for maximum security.
| Camera | |||||
| Max Resolution | 5 MP | ||||
| Sensor Size | 1/2.7” CMOS | ||||
| Min. Illumination | 0.005 lux (F1.6, AGC ON) | ||||
| 0 lux (Illuminator ON) | |||||
| Lens | |||||
| Focus | 2.8 mm | ||||
| Lens Mount | M12 | ||||
| Angle of View (H) | 110.0° | ||||
| Angle of View (V) | 57.0° | ||||
| Angle of View (D) | 130.0° | ||||
| Illuminator | |||||
| Illuminator Number | Two IR illuminators; two white-light illuminators | ||||
| Illumination Distance | IR: 131.23 ft (40 m) | ||||
| White light: 131.23 ft (40 m). | |||||
| Lifetime | ≥ 60000 hours | ||||
| Video | |||||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | ||||
| Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC | ||||
| Shutter Time | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s | ||||
| Image | |||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, and DWDR | ||||
| Day/Night | Three modes: Auto (default), Day, and Night | ||||
| Digital Noise Reduction | 2D | ||||
| White Balance | Two modes: Auto (default), Manual | ||||
| WDR | DWDR | ||||
| Light Mode | Dual light (default), infrared, white light | ||||
| Flip | Supports 180° horizontal flip, 180° vertical flip | ||||
| Audio | |||||
| Built-in Mic | Support | ||||
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps | ||||
| Interface | |||||
| Power Interface | 5.5 mm Power Interface | ||||
| Video Output | BNC supports TVI/AHD/CVI/CVBS | ||||
| Operating Environment | |||||
| Temperature | -22°F (-30°C) to 140°F (60°C) | ||||
| Humidity | ≤ 95% RH (non-condensing) | ||||
| Surge Protection | 4 kV for power & 4 kV for video output interfaces | ||||
| General | |||||
| Power | DC 12 V ± 25% | ||||
| Power Consumption | MAX 3.5W | ||||
| Mount | Corner Mount. Pole Mount, Wall Mount, and Pendant Mount. | ||||

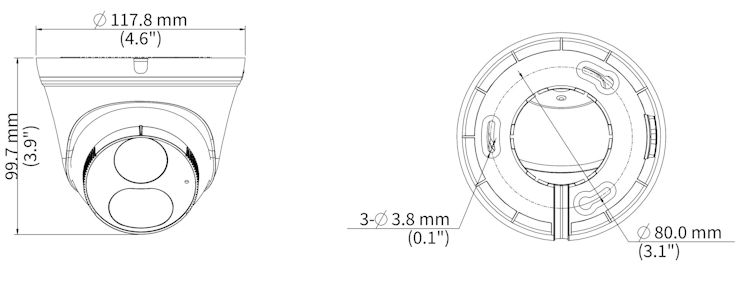

| Dimensions (diameter x height) | Φ 4.64 inches (11.79 cm) x 3.8 inches (9.65 cm) | ||||
| Material | Metal + Plastic | ||||
| Weight | 0.53 lb (240.4 g) | ||||
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | ||||
| Certification | |||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part 15 B) | ||||
| Safety | CE-LVD (EN 62368-1) | ||||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | ||||
| Protection | IP67 (IEC 60529) | ||||
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 6 × 5 in |
