ULP-P2334VE-W
Price range: $277.95 through $302.95

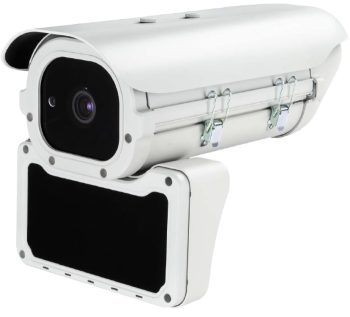

Eyemax ULP-P2334VE-W LPR Camera
- 1080p license plate capture camera
- EX-SDI license plate camera for coax
- Outdoor LPR security camera design
- Varifocal license plate camera with a 5–50 mm or 7–22 mm lens
- Vehicle capture up to 65 mph (ca. 105 km/h)
- 165 ft (ca. 50 m) infrared range
- 24 VAC outdoor all-in-one unit
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
Description
The Eyemax ULP-P2334VE-W LPR camera is a 1080p license plate capture camera for coaxial video systems. This 1080p license plate capture camera captures vehicles up to 65 mph (ca. 105 km/h). Therefore, it suits entrances, parking areas, gated properties, and controlled traffic lanes. This supports dependable vehicle identification.
First, this outdoor LPR security camera uses settings designed for reliable plate capture. Its infrared system reaches up to 165 ft (ca. 50 m). As a result, the camera can identify plates during daylight and after dark. In addition, this outdoor LPR security camera supports exposed locations.
This varifocal license plate camera is available with a 5–50 mm or 7–22 mm lens. Therefore, the varifocal license plate camera can fit the lane. The 5–50 mm option provides greater adjustment for longer views. Meanwhile, the 7–22 mm option works well where the capture point is closer. Correct lens selection helps keep the target plate large enough for useful recorded detail.
The EX-SDI license plate camera supports compatible HD coax formats. Consequently, the EX-SDI license plate camera delivers 1080p video over coax. This approach can simplify an upgrade when usable cable is already installed. However, the recorder and other system components must support the selected video format.
This model uses 24 VAC power and combines the camera, infrared illumination, and lens in one outdoor unit. Thus, installers can build a focused capture point without several devices. For best results, position the camera toward one traffic lane. Moreover, confirm the distance, viewing angle, vehicle speed, and selected lens before installation.
Finally, the Eyemax ULP-P2334VE-W LPR camera is intended for license plate capture rather than broad-area surveillance. Use a separate overview camera when the site also needs a wide scene. This focused setup helps produce more useful plate evidence for access control, security review, and vehicle monitoring.
| Resolution | 1080P |
| Lens | Fixed lens V/F lens 7 ~ 22mm, 5 ~ 50mm |
| Sensor | 1/2.8 inch SONY CMOS (IMX-291) |
| Pixels | Total : 1945(H) × 1109(V) = 2.16M / Effective : 1945(H) × 1097(V) = 2.13M |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE292M (EX-SDI, HD-SDI) / (TVI, CVI, AHD, CVBS) |
| Min.Illumination | 0 Lux at IR On (IR LED 20) |
| White Balance | Auto / Auto Ext / Preset / Manual |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/30,000sec) / FLICKER |
| Function | DNR / ACE / WDR / BLC / HLC / Sens_up / Privacy / Flip / Motion / Defog / RS-485 / Sharpness / Smart IR / Brightness |
| Day & Night | AUTO (Day <–> Night TIME Change), COLOR, B/W, EXTERN |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Temperature/Humidity | Operating (14°F (-10 °C) ~ 122°F (50°C) / 30% ~ 80% RH Storage: -4°F (-20 °C) ~ 140°F (60°C) / 20% ~ 90% RH |
| Power | AC 24V |
| Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : EX-SDI (500M)) |
Additional information
| Weight | 15 lbs |
|---|---|
| Dimensions | 23 × 10 × 6 in |
| Focal Length: | 5~50mm, 7~22mm |
Brand
Eyemax
