TVST-PVT-04N

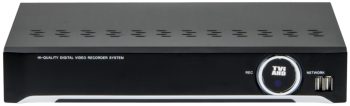

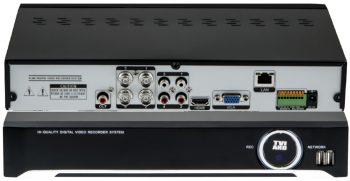

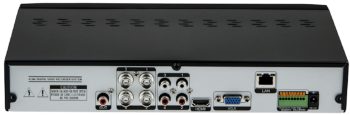

Eyemax TVST-PVT-04N, a 4-channel Pentabrid with 5Megapixel capability and support for analog and IP cameras. Real-time live viewing, POS Interface ready, RS-485 for PTZ control, Free DDNS Support, Multi-channel programmable spot out, 1 SATA up to 6Terabyt.

TVST-PVT-04N

In stock

TVST-PVT-04N 4 Channel 3Mmegapixel 1080P Quadbrid DVR System

  • 4 Channel TVI, AHD and CVI video input, support 5 Megapixel, 4 Megapixel, 3 Megapixel, 1080P, 720P, WD1
  • 2 Channel IPC 5 Megapixel, 4 Megapixel, 3 Megapixel, 1080P, 960P, 720P
  • Adopt standard H.265 high profile co Megapixel session format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse
  • Multimode recording: manual, timer, motion
  • 4 Channel simultaneously playback
  • Time slice, time, event (manual, motion), tag search
  • Express and flexible backup via USB, network, and so on
  • Pentaplex preview, record, playback, backup, and remote access
  • DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
  • Preview, playback, backup, PTZ, and configuration via IE or CMS
  • Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with mobile device Multi-user online simultaneously
  • Authorization management, log review, and device status review
  • 1080P output, true high-resolution display
  • Support PTZ preset and auto-cruise, up to 255 presets and 8 cruises
  • Support NAT function and QR Code scanning by mobile phone and PAD
  • Powerful smartphone and Pad surveillance with iOS and Android OS
TVST-PVT-4M04 4 Channel 4Megapixel 1080P Pentabrid TVI, AHD, CVI, IP, 960H DVR
Replacement Product
Give us a call (951) 282-8707 to help you find a replacement, Please

Compare

Description

High-quality and reliable surveillance for your home or business can be provided by the Eyemax TVST-PVT-04N. This 4-channel DVR can work with IP cameras and up to 3MP TVI cameras. It gives clear and sharp pictures for watching.

The REAL-TIME live feature gives you peace of mind and the ability to react quickly to any suspicious activity. This feature also allows you to view multiple cameras simultaneously, making it an ideal choice for larger properties or businesses.

One of the standout features of the Eyemax TVST-PVT-04N is its Mac CMS application. You can monitor your property from anywhere, at any time, by accessing your surveillance footage using your Mac computer. People who need to keep an eye on their property when they’re away can use this feature.

The DVR also comes equipped with a POS interface, making it easy to integrate with your point-of-sale system. A powerful tool for monitoring customer interactions and preventing fraud is created by overlaying transaction data on your video surveillance. You can pan, tilt, and zoom in on your property with the help of the RS-485 connection.

Besides its advanced features, the Eyemax TVST-PVT-04N offers free DNS support for easy remote access to your surveillance footage. This makes it easier for you to watch your videos from anywhere you have an internet connection.

But the benefits don’t end there. This DVR also has multichannel programmable spot out, giving you the flexibility to connect and control multiple monitors. With up to 6TB of storage, you can record a lot of footage without worrying about overwriting old stuff.

A range of advanced features for all your surveillance needs are offered by the Eyemax TVST-PVT-04N. This recorder is good for both home and business. It can record both IP and TVI cameras. Trust Eyemax to keep your property safe and secure with the TVST-PVT-04N.

Datasheet

Download

Eyemax TVST-PVT-04N, a 4-channel Pentabrid with 5Megapixel capability and support for analog and IP cameras. Real-time live viewing, POS Interface ready, RS-485 for PTZ control, Free DDNS Support, Multi-channel programmable spot out, 1 SATA up to 6Terabyt Datasheet.

Video
Camera input4 BNC
Individual HD/Analog selectableAnalog, AHD, TVI CVI, and IP
Available sourceTVI 720p25,30/1080p25,30/3MP@18
AHD 720p25,30/1080p25,30
Composite/960H/Mixed
IP Camera SpecONVIF 2.3, RTSP, H.264, dual stream
use gigabit Ethernet hub
IP Camera Number1
IP Camera RestrictionCannot set up a Private ZONE
Cannot support Timestamp
Output1 HDMI (Main Display)
1 VGA (Main Display)
1 Composite (Programmable SPOT)
Audio / Alarm and Sensor
Audio input4 RCA
Output1 RCA
Sensor In4 (NC, NO selectable)
Alarm out1 relay
Operating SystemEmbedded Linux OS
Display
SpeedReal Time
Resolution (Pixel)1280×1024, 1280×720, 1920×1080
Split screen1,4
Main Recording
Resolution (Pixel)3MP, 720p (3MP@18)
1080p, 720p (1080p@25,30)
720p, 960×540 (720p@25,30)
960H, D1(Composite, 960H)
Picture quality4 steps (Super, High, Medium, Low)
Speed60fps @ 1080p
Dual Recording
Resolution (Pixel)N/A
Playback
Display1,4
Search modeCalendar, Event, POS, Panorama, Thumbnail
Speed30fps @ 1080p
Fast/Slow speedNormal, REW & FF [recorded speed ×2, ×4, ×8, ×16,×32,×64,×1/2,×1/4], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network InterfaceMegabit Ethernet
Low Resolution (Pixel)480×256 (3MP, 1080p, 720p)
CIF (Composite, 960H)
Speed20fps @ 1080p
ProtocolTCP-IP, HTTP, DHCP
ApplicationWindows 7, 8, or 10 (PC Client system IE)/MAC
Web BrowserInternet Explorer, Safari, Chrome, Firefox
Smartphone AppAndroid, iPhone for live and search
Backup
InterfaceUSB 2.0 × 2
Backup deviceExternal HDD, CD and DVD-RW, Network, Thumb Drive
The number of HDD1 SATA
Others
Power Consumption24W
Operating Temperature41 °F (5 °C) ~ 104 °F (40 °C)
Relative HumidityMaximum 80% non-condensing
Dimension11.81 inches (30 cm) (W) × 8.2677 inch (21 cm) (D) × 1.8898 inch (4.8 cm) (H)

Additional information

Weight8 lbs
Dimensions12 × 9 × 2 in
