UVST-MAGIC-4K04

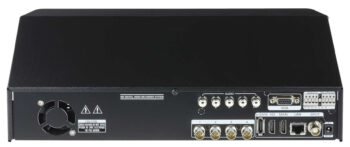

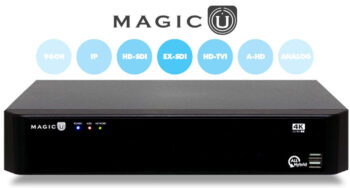

Upgrade your security system with the Eyemax UVST-MAGIC-4K04 DVR. Automatically detects and supports eight different camera digital HD, EX-SDI (up to 4MP), HD-SDI, and IP Cameras (up to 4K). Analog HD: HD-TVI, HD-CVI, and AHD (up to 5MP). Standard 960H and CVBS. 4K recording, and remote viewing. Shop now!

UVST-MAGIC-4K04

In stock

Eyemax UVST-MAGIC-QX04 is a 4-channel Octa-Brid DVR system, 4K output, 5MP TVI, and 4MP EX-SDI.

  • Full GUI with alpha blending
  • Individual setting of resolution, frame rates and picture quality
  • Instant Replay
  • Digital Zoom
  • Mouse Control
  • Weekly scheduler with holiday by 10 minutes setting
  • Covert, Disable and Private function of cameras
  • Motion Detection with 576 area setting
  • Relay alarm output
  • PTZ control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi-User Authority up to 8 Users
  • Deinterlacer upon live and playback
  • 22 languages with full graphics
Eyemax LogoCollsam Security NDAA

This product is no longer available.

Description

The Eyemax UVST-MAGIC-4K04 is a state-of-the-art 4-channel Octa-Brid standalone Digital Video Recorder (DVR). It offers unparalleled versatility and performance. It is specifically designed to bridge the gap between traditional analog security systems and modern high-definition digital technology. This makes it the perfect choice for businesses and homes looking to upgrade their surveillance capabilities.

One of the key features of the Eyemax UVST-MAGIC-4K04 is its ability to support multiple video signal types on a single device. It is a truly versatile and flexible DVR. It automatically detects and supports eight different camera digital HD formats. This includes HD-TVI, HD-CVI, and AHD (up to 5MP).

It supports EX-SDI (up to 4MP), HD-SDI, and IP cameras (up to 4K resolution). Users can mix and match cameras with different signal types. They can do this without having to invest in multiple DVRs.

One of the standout features of the Eyemax UVST-MAGIC-4K04 is its ability to support all-channel 4K recording. Enjoy crystal-clear, high-resolution footage from all four channels. This ensures that no detail goes unnoticed. Additionally, the DVR offers up to 4K resolution output via HDMI View. This allows for stunning playback on compatible monitors or TVs.

In terms of storage, the Eyemax UVST-MAGIC-4K04 offers plenty of options. It comes with 2 internal SATA slots, which can support up to 12TB of storage space (6 TB each). For those who require even more storage, the DVR also includes an eSATA port for expanded storage. This allows for longer recording times and ensures that users never run out of storage space.

Eyemax UVST-MAGIC-4K04 offers a range of advanced features for enhanced security and customization. It includes a 4-channel RCA audio input, which allows users to record audio along with their video footage. It also features an Ethernet port for remote viewing via Windows and Mac (CMS).

Datasheet

Download

Upgrade your security system with the Eyemax UVST-MAGIC-4K04 DVR. Automatically detects and supports eight different camera digital HD, EX-SDI (up to 4MP), HD-SDI, and IP Cameras (up to 4K). Analog HD: HD-TVI, HD-CVI, and AHD (up to 5MP). Standard 960H and CVBS. 4K recording, and remote viewing. Datasheet.

Video
Camera input4 BNC
Individual HD/Analog selectableAnalog, HD-SDI, EX-SDI, TVI, AHD, CVI, IP
Available sourceUp to 8MP IPC
EX-SDI 720p25,30/1080p25,30/4MP 25,30/8MP 25,30 TVI/AHD/CVI 720p25,30/1080p25,30/3MP 18/4MP@12 ~ 30 HD-SDI 720p25,30/1080p25,30
/Composite/960H/Mixed
IP Camera SpecONVIF 2.3, RTSP, H.264, and dual stream use a gigabit Ethernet hub
IP Camera Num4
IP Camera RestrictionCannot setup Private ZONE Cannot support Timestamp
Output2 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio
Audio input4 RCA
Output1 RCA
Sensor In4 (NC, NO selectable)
Alarm out1 relay
Operating SystemEmbedded Linux OS
Display
SpeedReal Time
Resolution (Pixel)1280 × 1024, 1280 × 720, 1920 × 1080, UHD
Split screen1,4
Main Recording
CODECH.264
Resolution (Pixel),
Video IN : Possible Recording
8MP : 8MP, 1080p
4MP : 4MP, 720p
3MP : 3MP, 720p
1080p : 1080p, 720p
720p : 720p, 960 × 540
960H, Composite : 960H, D1
Picture quality4 steps (Super, High, Medium, Low)
Speed60fps @ 8MP
Dual Recording
CODECH.264
Resolution (Pixel)640 × 360
Playback
Display1,4
Search modeCalendar, Event ,POS , Panorama, Thumbnail
Speed30fps @ 8MP
Fast/Slow speedNormal, REW and FF [recorded speed × 2, × 4, × 8, × 16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network InterfaceGigabit Ethernet
High Resolution (Pixel)
Video IN : Possible Recording
8MP : 1080p, 720p
4MP : 1080p, 720p
3MP : 1080p, 720p
1080p : 1080p, 720p
720p : 720p, 960 × 540
960H, Composite : 960H, D1
Low Resolution (Pixel)
Video IN : Possible Recording
8MP : 480 × 256
4MP : 480 × 256
3MP : 480 × 256
1080p : 480 × 256
720p : 480 × 256
960H, Composite : CIF
Speed40fps @ 1080p
ProtocolTCP/IP, HTTP, DHCP
ApplicationWindows 7 / 8 (PC Client System and I.E.,)/MAC
Web BrowserInternet Explorer, Safari, Chrome, Firefox
Smartphone AppAndroid, iPhone for live and search
Backup
InterfaceUSB 2.0×2
Backup deviceExternal HDD and CD/DVD-RW, Network, Thumb Drive
The number of HDD2 SATA No capacity limit ; + 1 eSATA(upto 12bays, No capacity limit ; 8TB or more)
Others
Power Consumption60W
Operating TemperatureThe temperature ranges from 41°F (5°C) to 104°F (40 °C).
Relative HumidityMaximum 80% non-condensing
Dimension W × D × H 13.39 inches (34.01 cm) × 9.84 inches (24.99 cm) × 2.36 inches (5.99 cm)

Additional information

Weight15 lbs
Dimensions16 × 14 × 6 in
