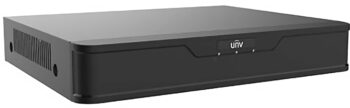

Uniview XVR301-08G3 DVR for Home and Business Security

Upgrade your security setup with the Uniview XVR301-08G3 8-channel hybrid DVR. Supports various camera types, H.265 compression, and UMD for accurate motion detection. NDAA compliant for regulatory projects.

XVR301-08G3

0 out of 5

( There are no reviews yet. )

Price range: $91.95 through $526.95

UNIVIEW XVR301-08G3 DVR 8-Channels, BNC (only IP up to 8ch), each channel up to 4MP

Support H.265/H.264 video formats, audio over coaxial cable, TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
8-Channel BNC input
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols
TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP Protocols
High-speed transmission of up to 4MP resolution on all channels
Long transmission distance over coaxial cable for reliable connections
Support for ONVIF and RTSP protocols for use with mainstream cameras
1-channel HDMI and 1-channel VGA output at up to 1920×1080 for best resolution
1 SATA channel up to 16 TB hard drive DVR for increased storage
1 RJ45 10M/100M self-adaptive Ethernet interface for superfast data transmissions
Low-power consumption of ≤ 8 W (without HDD) for energy efficiency

SKU: XVR301-08G3 Categories: 8 Channel DVR Coaxial HD Recorder, Analog Coaxial, Analog Coaxial DVR Recorders, HD Coaxial DVR Recorders Tags: Dual H.265 and H.264 Codecs, HDCVI/AHD/TVI/CVBS Auto-detect, NDAA Compliant;, ONVIF (PROFILE S PROFILE G), Seagate, Two-Way Audio, UMD (Ultra Motion Detection)

Hard Drive

Description

The Uniview XVR301-08G3 is a powerful 8-channel hybrid Digital Video Recorder (DVR) from the renowned Uniview (UNV) Easy series. This DVR is specifically designed for small-to-medium security installations. It offers a versatile and reliable solution for your surveillance needs. With its 5-in-1 functionality, the XVR301-08G3 can easily adapt to various analog camera types. It also supports additional IP cameras. As a result, you get flexibility and customization options.

This DVR boasts an impressive 8-channel BNC input for analog cameras. It also has the added capability of supporting up to 4 additional IP cameras. Therefore, it totals 12 channels.

You can easily connect TVI, AHD, CVI, CVBS (analog), and IP cameras to this device. Consequently, you can create a comprehensive and integrated security system.

The Uniview XVR301-08G3 also supports resolutions up to 5MP Lite for analog channels. Additionally, it supports up to 4MP for IP channels. This ensures high-quality video footage to capture every detail.

With H.265 and H.264 video compression, this DVR optimizes storage space and bandwidth usage. Thus, you can save more footage without compromising on video quality.

It also features 1 SATA interface that supports a single hard disk drive (HDD) up to 16 TB. This provides you with ample storage space for your recordings (note: HDDs are typically sold separately).

This means you can keep days, weeks, or even months of footage, depending on your storage needs.

The Uniview XVR301-08G3 offers seamless and simultaneous HDMI and VGA output at resolutions up to 1920×1080 (1080p). This ensures a clear and crisp display of your video recordings. Furthermore, it supports audio over coaxial cable, specifically for TVI cameras, enabling you to transmit both video and audio through a single cable. This feature eliminates the need for additional audio cables. As a result, installation and maintenance are more convenient.

This DVR is equipped with Ultra Motion Detection (UMD) for up to 4 analog channels, which helps to filter out false alarms. The Uniview XVR301-08G3s feature is particularly useful in busy environments where motion detection can be triggered by non-threatening movements, such as tree branches or moving shadows. With UMD, you can minimize false alarms and focus on genuine security threats.

Datasheet

Download

Experience the power of Uniview XVR301-08G3 8-channel, 4-megapixel, 8 TB NVR, H.265/H.264, long transmission, ONVIF and RTSP, 10 Mb/100 Mb Ethernet, 12 V DC power datasheet.

Number of Channels	8
Recording Resolution	1080N, 720p, 4M-N, 5M-N, D1
IP Camera Support	8
2-Way Audio	Yes

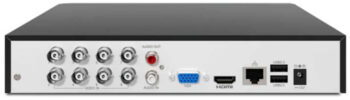

Audio/Video I/O	AHD, Analog, CVBS, HD-CVI, HD-TVI: 8 x 1 x HDMI 1 x VGA 1 x RCA Audio Input 1 x RCA Audio Output
Communication I/O	2x USB-A 2.0 (Rear) 1x RJ45 10/100 Mb/s Ethernet
Audio I/O	1x Input 1x Output
Supported Video Codecs	H.264, H.265
Installed Drive	No
Recording Modes	Alarm, Motion
Power Consumption	Without HDD: 8 W

General

Signal	AHD, Analog, HD-CVI, HD-TVI, IP
Number of Channels	8
Playback Resolution	HDMI, VGA: 1080p at 60 Hz
Recording Resolution	1080N, 720p, 4M-N, 5M-N, D1
PTZ Support	Yes
Bit Rate	64 kb/s (Audio)
IP Camera Support	8
Dual Streaming	Yes
Decoding Resolution	4 Channels: 5M-N at 6 fps 4M-N at 8 fps 1080p at 12 fps 1 Channel: 4 MP at 30 fps 2 Channels: 1080p at 30 fps
2-Way Audio	Yes
Maximum Sampling Rate	8 kHz / 16-Bit

Connectivity

Audio/Video I/O	AHD, Analog, CVBS, HD-CVI, HD-TVI: 8 x 1 x HDMI 1 x VGA 1 x RCA Audio Input 1 x RCA Audio Output
Communication I/O	2x USB-A 2.0 (Rear) 1x RJ45 10/100 Mb/s Ethernet
Audio I/O	1x Input 1x Output
System Connection	1x SATA
Wi-Fi	No
Remote Connections	128
Network Protocols	DDNS, DHCP, DNS, HTTP, HTTPS, NTP, ONVIF, P2P, RTSP, SMTP, TCP/IP, UPnP
Max Frame Rate	12 fps

Compatibility

Supported Video Codecs

H.264, H.265

System

Installed Drive	No
Max Capacity Supported	8 TB
Recording Modes	Alarm, Motion

Notifications

Event Trigger

Snapshot

Electrical

Input Power	12 VDC at 2 A
Power Consumption	Without HDD: 8 W

Physical

Certifications	CE, EN, FCC, IEC, RoHS, UL, WEEE
Operating Conditions	14 to 131°F / -10 to 55°C up to 90% Humidity
Built-In Display	No
Dimensions (W × D × H)	10.2 inches (25.91 cm) x 8.9 inches (22.61 cm) x 1.9 inches (4.83 cm)
Weight	2.4 lb (1.09 kg) (without HDD)

Additional information

Weight	11 lbs
Dimensions	13 × 9 × 5 in
Hard Drive	No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive, 16 TB Hard Drive

Brand

NDAA

NDAA-compliant security products help organizations meet federal procurement requirements for covered telecommunications and video surveillance equipment. Section 889 of the FY2019 National Defense Authorization Act restricts federal procurement and contracting involving certain covered equipment and services. Collsam Security offers government security cameras, compliant NVRs, government security equipment, networking products, access control equipment, and surveillance accessories for professional applications. Government security cameras support federal, state, local, education, healthcare, transportation, and critical infrastructure surveillance projects. Compliant NVRs provide recording, storage, playback, and management for compatible IP camera systems. Government security equipment is available from Collsam Security for professional installations, system upgrades, and government-related security projects.

NDAA-Compliant Security SolutionsNDAA compliance is an important consideration for many federal, state, local government, education, transportation, healthcare, and critical infrastructure security projects.Section 889 RequirementsSection 889 restricts federal agencies from procuring or contracting for systems that use covered telecommunications equipment or services as a substantial or essential component, unless an applicable exception or waiver applies.NDAA-Compliant Security CamerasSecurity cameras identified as NDAA compliant can support government and commercial surveillance projects that require equipment sourced outside the covered categories addressed by Section 889.NDAA-Compliant NVRsNDAA-compliant network video recorders provide recording, storage, playback, and surveillance management for compatible IP camera systems.Government Security EquipmentGovernment security projects may require additional product documentation, manufacturer verification, contract clauses, and agency-specific procurement review.Professional Surveillance SystemsNDAA-compliant equipment can support surveillance systems for government buildings, schools, utilities, transportation facilities, healthcare locations, commercial properties, and critical infrastructure.NDAA Products at Collsam SecurityCollsam Security offers security products for customers seeking NDAA compliant surveillance and security solutions. Product eligibility should be confirmed for the specific procurement, contract, and agency requirements before purchase.

Uniview

Uniview security cameras include IP surveillance cameras for homes, businesses, and large video security projects. Available styles include bullet, turret, dome, panoramic, and PTZ models. These cameras support indoor, outdoor, and low-light monitoring. Uniview NVR systems serve as video surveillance recorders for compatible network cameras. Selected hybrid DVR models also support several analog video formats. Installers can pair Uniview security cameras with recorders, storage drives, PoE switches, mounting brackets, and junction boxes. IP surveillance cameras may include infrared light, full-color night viewing, wide dynamic range, audio, and remote access. Some models can also identify people or vehicles. Uniview NVR systems come in several channel counts and storage sizes. Choose video surveillance recorders based on camera support, resolution, bandwidth, recording schedules, and storage needs. Product features vary by model. Confirm system support before buying.

Uniview Professional Video Surveillance

Uniview develops professional video-surveillance products for homes, stores, offices, warehouses, schools, industrial facilities, and enterprise environments. The product range supports new installations, system expansions, and replacement projects.

Network and Analog Security Cameras

Available camera styles include:

Bullet cameras
Turret cameras
Dome cameras
PTZ cameras
Panoramic and multi-sensor cameras
Thermal cameras
Wireless cameras
Analog HD cameras
Full-color and low-light cameras
Active-deterrence cameras

Camera features vary by model. Options may include infrared illumination, full-color night imaging, wide dynamic range, motorized lenses, audio, smart motion detection, human and vehicle classification, weather-resistant housings, and Power over Ethernet.

Network and Digital Video Recorders

Uniview recorders are available for small, medium, and large surveillance installations. Product options include network video recorders for IP cameras and hybrid digital video recorders for compatible analog and network cameras.Recorder selection should consider:

Required camera channels
Camera resolution
Incoming bandwidth
Hard-drive capacity
Recording schedule
Required retention time
PoE port requirements
Display outputs
Remote-access requirements
Supported analytics

Video Storage and Transmission

Compatible system components may include surveillance storage, disk enclosures, network switches, cables, wireless transmission equipment, and other networking products. Always verify the maximum storage capacity and compatible hard-drive models supported by the recorder.

Mounts and Installation Accessories

Uniview installation accessories include junction boxes, wall mounts, pole mounts, corner mounts, pendant mounts, extension pipes, weather-resistant cable seals, and recorder accessories. Select accessories according to the exact camera or recorder model.

System Compatibility

Confirm camera, recorder, firmware, storage, mounting, power, and network compatibility before installation. Features and specifications vary between product series and models.Uniview security cameras, recorders, storage products, and installation accessories are available at Collsam Security.
