Eyemax UVST-MAGIC-QL04 MAGIC QL Series 4-Channel 1080p DVR System

Full GUI with alpha blending and individual setting of resolution, frame rates, and picture
quality
Instant Replay
Digital Zoom
Mouse Control
Weekly scheduler with holiday by 10 minutes setting
Covert, disable, and private function of cameras
Motion Detection with 576 area setting
Relay alarm output
PTZ control by RS-485
Daylight Saving Time and Network Time Setting
Multi-User Authority
Deinterlacer upon live and playback
Multilingual with full graphic
Individual network port setting
Auto Deletion
Import and export the configuration
Interactive setup via network
POS Interface
Mirroring

Recomanded Replaceable Product!

UVST-MAGIC-QX04

$333.95

SKU: UVST-MAGIC-QL04 Categories: 4 Channel DVR Coaxial HD Recorders, HD Coaxial DVR Recorders Tags: 4 Channel DVR, 960H, Analog HDs, Disconnected, EX-SDI, H.264, HD 1080P, HD-AHD, HD-SDI PTZ, HDCVI, Home Security, IP Camera, NDAA Compliant;, Octa-Brid DVR, POS Interface, Seagate

This product has been discontinued

Description

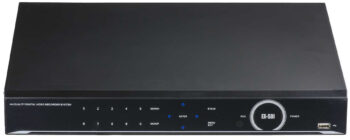

The Eyemax UVST-MAGIC-QL04 is a cutting-edge, 4-channel quad-hybrid digital video recorder (DVR). It is designed to cater to a wide range of surveillance needs. With its support for multiple camera types, it works with EX-SDI, HD-SDI, IP, and traditional analog cameras. Therefore, this DVR offers a versatile and comprehensive solution. It is suitable for all your security and monitoring needs.

Equipped with a powerful Quad-Hybrid system, the Eyemax UVST-MAGIC-QL04 offers seamless compatibility with various camera technologies. This makes it a highly versatile and adaptable surveillance system. The DVR supports up to 4 BNC inputs. It can record in up to 1080p (1920×1080) resolution at 60 frames per second. As a result, you get crystal-clear and high-quality video recordings.

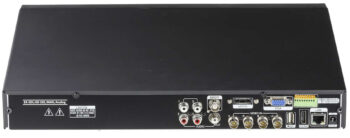

One of the standout features of the Eyemax UVST-MAGIC-QL04 is its multiple display options. The DVR comes with 1 HDMI, 1 VGA, and 1 composite output. These can be programmed to display the main recording or a secondary spot monitor. Consequently, this makes it an ideal choice for businesses or organizations. They may require real-time monitoring of multiple areas simultaneously.

In terms of audio capabilities, the Eyemax UVST-MAGIC-QL04 offers 4 RCA audio inputs and 1 RCA output. This allows you to capture audio along with your video recordings.

It also supports up to 2 SATA hard drives with a maximum capacity of 12 TB (6 TB each) for storing your footage. Additionally, the DVR has a USB 2.0 port. It can also be connected to a network for external backup.

The Eyemax UVST-MAGIC-QL04 offers advanced features such as motion detection, PTZ control (via RS-485), multi-user authority, and a POS interface. This makes it a highly efficient and user-friendly surveillance system.

It also comes with a Gigabit Ethernet interface. As a result, you can connect to your network for remote viewing via Windows or Mac applications. Furthermore, you can use smartphone apps for iPhone and Android. This enables you to monitor your surveillance feed from anywhere, at any time.

Therefore, you get peace of mind and a sense of control over your property or business.

Video
Camera input	4 BNC
Individual HD/analog selectable	All Hybrid
Available source	HD-SDI 720p25,30/1080p25,30 EX-SDI 720p25,30/1080p25,30 /Composite/960H/Mixed
IP Camera Spec	ONVIF 2.3, RTSP, H.264, and dual stream use a gigabit Ethernet hub
Num of IP Camera Support	1
IP Camera Restrictions	Cannot display SPOT. Cannot set up a private zone, cannot attach an email image, cannot snapshot a live image, and cannot support a timestamp.
Output	1 HDMI (Main Display), 1 VGA (Main Display), 1 Composite (Programmable SPOT)
Audio & I/O
Audio input	4 RCA
Output	1 RCA
Sensor In	4 (NC, NO selectable)
Alarm out	1 relay
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 × 1024, 1280 × 720, 1920 × 1080
Split screen	1,4
Main Recording
Resolution (Pixel)	1080p, 720p (1080p25,30), 720p, 960 × 540 (720p25,30), 960H, D1 (Composite, 960H)
Picture quality	4 steps (Super, High, Medium, Low)
Speed	60 fps @ 1080p
Dual Recording
Resolution (Pixel)	Not Supported
Playback
Display	1,4
Search mode	Calendar, Event, POS, Panorama, Thumbnail
Speed	30 fps @ 1080p
Fast/Slow speed	Normal, REW & FF [recorded speed × 2, × 4, × 8, × 16, × 32, × 64, × 1/2, × 1/4], Frame to frame, Pause
Network (individual setting of resolution, frame rates, and picture quality)
Network Interface	Gigabit Ethernet
High Resolution (Pixel)	1080p, 720p (1080p25, 30), 720p, 960 × 540 (720p25, 30), 960H, D1 (Composite, 960H)
Low Resolution (Pixel)	480 × 256 (1080p25,30) 480 × 256 (720p25,30) CIF (Composite, 960H)
Speed	20 fps @ 1080p
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7/8 (PC Client System & I.E.)/MAC
Web Browser	Internet Explorer, Safari, Chrome, Firefox
Smartphone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 × 2
Backup device	External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD	2 SATA (no capacity limit; 6 TB or more)
Others
Power Consumption	60W
Operating Temperature	41°F (5°C) ~ 104 °F (40 °C)
Relative Humidity	Maximum 80% non-condensing
Dimension	17 inches (43.18 cm) × 15 inches (38.1 cm) × 4 inches (10.16 cm)

Additional information

Weight	12 lbs
Dimensions	18 × 17 × 4 in
