XVR301-04G3
Price range: $74.95 through $528.95
Uniview XVR301-04G3 4 Channels 1 SATA Interface Network Video Recorder
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
- 4/8/16-channel BNC input
- Support 1-channel HDMI output and 1-channel VGA output at up to 1920×1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Uniview XVR301-04G3 is an innovative security system that is perfect for any home or business. With its long transmission distance over coaxial cable, this system can be easily installed in any location without the need for additional wiring. Its four-channel BNC input makes it easy to connect cameras with various video formats such as TVI, AHD, CVI, CVBS, and any other IP cameras with adaptive access.
Using the latest H.265/H.264 video formats, this Uniview XVR301-04G3 has high resolution that can reach up to 4 MP. For monitoring, it has one HDMI output and one VGA output that can display images at up to 1920×1080 resolution. This system also supports RTSP and ONVIF protocols. All of these features make it an ideal choice for any surveillance system.
Fitting seamlessly into any home or business, the Uniview XVR301-04G3 has an impressive storage capacity that can reach up to 8 TB HDD. And with its 12V DC power consumption of 8W, it is energy efficient and can be used for long periods of time without needing to be recharged. This is great for those who don’t want to waste money on power bills.
The Uniview XVR301-04G3 is not only easy to install, but it is also very secure. It has advanced access control features to keep your system safe from any unauthorized access. This system also supports motion detection, which is great for those who want to monitor their property.
The Uniview XVR301-04G3 is an excellent choice for any home or business. With its advanced security features and easy installation, it makes a perfect surveillance system. Plus, it is energy-efficient and has an impressive storage capacity. Get the Uniview XVR301-04G3 today and make sure your property is safe and secure.
| Video Audio Input | |
|---|---|
| IP Video Input | 2-channel |
| Analog Video Input | 4-channel, BNC |
| Max IP Video Input | 6-channel |
| Supported Analog Camera (TVI) | 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps |
| Supported Analog Camera (CVI) | 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps |
| Supported Analog Camera (AHD) | 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps |
| Support CVBS input | Yes |
| RCA Audio Input | 1-ch |
| Video Audio Output | |
| HDMI Output | 1920 × 1080 / 60 Hz, 1920 × 1080 / 50 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60Hz |
| VGA Output | 1920 × 1080 / 60 Hz, 1920 × 1080 / 50 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| RCA Audio Output | 1-channel |
| Live View Display (HDMI/VGA) | 1 / 4 / 6 / 8 / 9 |
| Encoding/Decoding | |
| Recording Resolution | 5MP Lite / 4MP Lite / 1080P / 720P / D1 |
| Recording Frame Rate (Mainstream) | 5MP Lite@12fps Sub stream: D1@12fps 4MP Lite@15fps Sub stream: D1@15fps 1080P@15fps Sub stream: D1@15fps 720P@25fps Substream: D1@25fps |
| Audio Sample Rate | 8 KHz, 16 bits per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Decoding Capability (Analog) | 2 × 5MP Lite@12 2 × 4MP Lite@15 2 × 1080P@15 |
| Decoding Capability (IP) | 1 × 4MP@30 2 × 1080P@30 |
| Two-way Audio | |
| Two-way Audio | 1-channel RCA using the audio input and output |
| Analog Snapshot | |
| FTP / Event Snapshot | 4-channel snapshot up to 704×576 resolution |
| Schedule snapshot | not supported |
| Network | |
| Incoming Bandwidth | 16 Mbps (up to 24 Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP |
| Browser (Plugin) | I.E., (IE10/11) Firefox (version 52.0 and above) Chrome (version 45 and above) Edge (version 79 and above) |
| Smart | |
| Analog Smart by XVR | Ultra Motion Detection (UMD) |
| Smart Functions by XVR | 4-channel (UMD) |
| channel | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording Snapshot Abnormal |
| GUI Language | |
| GUI Language | 20 languages: English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, and Ukrainian |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 16TB for each HDD (the maximum HDD capacity varies with environment temperature). |

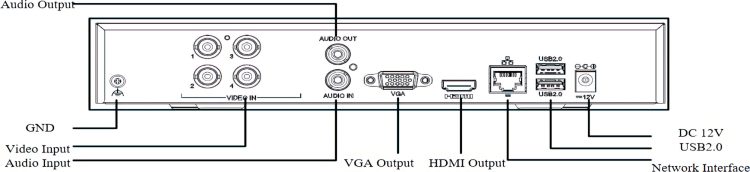

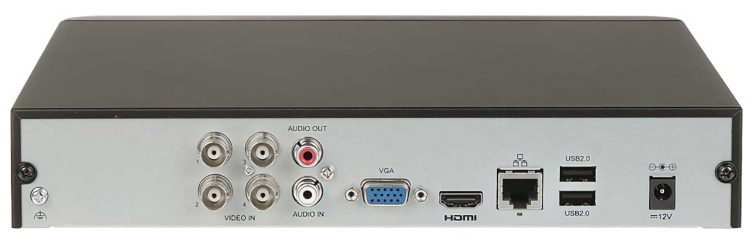

| External Interface | |
| Network Interface | 1 RJ45 10M 100M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 x USB 2.0 |
| Power Supply | DC 12V / 2A |
| Working Environment | |
| Working Temperature | 14°F (-10°C) ~ 131°F (55°C) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 8W |
| Dimensions | |
| Weight (without HDD) | 2.42 lb (1.1 kg) |

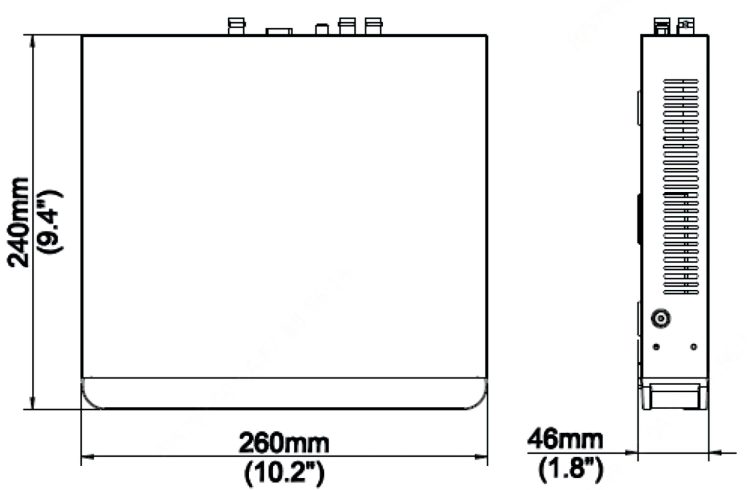

| Dimensions | 10.2 inches (25.91 cm) × 8.9 inches (22.61 cm) × 1.8 inches (4.57 cm) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000 ~ 3-3, EN IEC 61000 ~ 3-2, EN 55035 |
| FCC | Part 15, Subpart B |
Additional information
| Weight | 9 lbs |
|---|---|
| Dimensions | 12 × 10 × 4 in |
| Hard Drive | No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive, 16 TB Hard Drive |
