XVR301-04Q3
Original price was: $229.00.$85.95Current price is: $85.95.
Uniview XVR301-04Q3 UNV Hybrid 4K DVR 4 Channel BNC, 2 Channel IP, H.265
- Up to 16 TB 1-SATA hard drive
- Support H.265/H.264, audio over coaxial cable
- TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
- HD BNC plus 2 IP
- NDAA Compliant
- 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
- 2 x USB 2.0 ports
- High-resolution support: up to 4K/8MP
- Adaptive access of multiple camera types: TVI, AHD, CVI, CVBS, IP
- 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output
- HDMI and VGA simultaneous output, up to 4K resolution
- Improved surveillance coverage with HD clarity and increased field of view
- Prolonged transmission of digital signals for long distances
- Compatible with mainstream cameras of ONVIF and RTSP standards
- Reliable power supply with 12V DC input
SKU: XVR301-04Q3
Categories: 4 Channel DVR Coaxial HD Recorders, Analog Coaxial, Analog Coaxial DVR Recorders, HD Coaxial DVR Recorders
Tags: (AoC) Audio over Coax, 4 Channel HD DVR, 4K DVR, 4K HD Security DVR's, 6 channel dvr, CCTV Recorder, HDCVI/AHD/TVI/CVBS Auto-detect, High Definition over Coax DVR, Hybrid DVR, Seagate, XVR- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description
The Uniview XVR301-04Q3 is a digital video recorder (DVR) that allows users to store and record video footage. Featuring a 1-SATA hard drive up to 16 TB, this Uniview model supports up to 4K/8MP resolution. This advanced DVR supports H.265/H.264, audio over coaxial cable (only for TVI cameras), TVI, AHD, CVI, and CVBS, plus IP cameras with adaptive access.
The Uniview XVR301-04Q3 also features 4 HD BNC plus 2 IP. It is also NDAA compliant and has 1-ch CVBS output, 1-ch VGA output, and 1-ch HDMI output.
Furthermore, users can make use of HDMI and VGA simultaneous output, up to 4K (3840 × 2160). It also offers long transmission distance over coaxial cable and is compatible with mainstream cameras of ONVIF and RTSP protocols. For added convenience, it has 2 x USB 2.0 and 12V DC power.
The Uniview XVR301-04Q3 is a great choice for those seeking a comprehensive yet user-friendly DVR. All of its features are designed to give users advanced control over their recordings, allowing them to easily manage and store video footage with maximum efficiency. With its 4K/8MP resolution, long transmission distance, USB 2.0, and 12V DC power, this Uniview model is perfect for anyone looking for a DVR that offers top performance.
Overall, the Uniview XVR301-04Q3 is an ideal choice for anyone looking for a complete DVR with comprehensive features. It offers advanced image quality, impressive resolution, and a wide selection of recording options.
Plus, its long transmission distance is perfect for businesses or places that have multiple cameras. Furthermore, its USB 2.0 and 12V DC power ports make it easy to connect and use. All in all, the Uniview XVR301-04Q3 is a great choice for anyone looking for an advanced DVR with user-friendly features.
| XVR301-04Q3 | |
| Video/Audio Input | |
| IP Video Input | 2-channel |
| Analog Video Input | 4-channel , BNC |
| Max IP Video Input | 6-channel |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support TVI input: 8MP@15fps, 3K@20fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 0P@30fps Support CVI input: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVBS input |
| BNC Audio Input | 4-channel |
| RCA Audio Input | 1-channel |
| Video/Audio Output | |
| HDMI Output | HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| BNC Video Output | 1-channel |
| RCA Audio Output | 1-channel |
| Live View Display | HDMI/VGA: 1/4/6/8/9 |
| Encoding/Decoding | |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1 |
| Recording Frame Rate | Main stream: 8MP Lite @ 8fps Sub stream: D1 @ 8fps Mainstream: 3K Lite @ 12 fps Substream: D1 @ 12 fps Main stream: 5MP Lite @ 12fps Sub stream: D1 @ 12fps Main stream: 4MP Lite @ 15fps Sub stream: D1 @ 15fps Main stream: 1080P@15fps Sub stream: D1@15fps Main stream: 720P@30fps Sub stream: D1@30fps |
| Audio Sample Rate | 8 kHz, 16 bits per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Decoding Capability | Analog: 4 x 8MP Lite @ 8, 4 x 3K Lite @ 12, 4 x 5MP Lite @ 12, 4 x 4MP Lite @ 15, 4 x 1080P @ 15 |
| IP: 1 x 4MP@30, 2 x 1080P@30 | |
| Two-way Audio | |
| Two-way Audio | 1-channel , RCA (using the audio input and output) |
| Analog Snapshot | |
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot: 4-ch snapshot, up to 704×576 resolution |
| Network | |
| Incoming Bandwidth | 40 Mbps (up to 48 Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Smart | |
| Analog Smart by XVR | Ultra Motion Detection (UMD), SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection |
| IP Smart by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking |
| VCA Search | Face Search, Behavior Search |
| Smart Functions by XVR | 4-ch (UMD), 2-ch (SIP) |
| Smart Functions by IP Camera | 2-ch (SIP) |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 16 TB for each HDD (the maximum HDD capacity varies with environment temperature) |
| External Interface | |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 × USB2.0 |
| RS485 | 1 |
| Alarm In | 4-channel |
| Alarm Out | 1-channel |
| Power Supply | DC 12 V/2 A |
| Working Environment | |
| Working Temperature | 14°F to 131°F |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 10W |
| Dimensions | |
| Weight (without HDD) | ≤1.1 Kg ( 2.42lb ) |

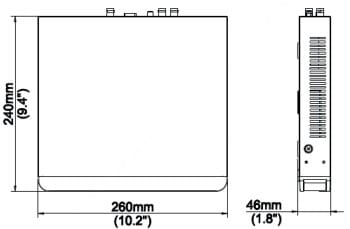

| Dimensions | 10.2 inches (25.91 cm) × 8.9 inches (22.61 cm) × 1.8 inches (4.57 cm) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part 15, Subpart B |
Additional information
| Weight | 9 lbs |
|---|---|
| Dimensions | 12 × 10 × 4 in |
