TVST-TE2708
Original price was: $220.00.$149.95Current price is: $149.95.
Eyemax TVST-TE2708 8-Channel Pentabrid DVR for HD-TVI, AHD, HD-CVI, and IP Cameras
- 8 Chanel TVI, CVI, AHD video input
- 8 Chanel 5 Megapixel, 4 Megapixel, 4 Megapixel Lite, 3 Megapixel, 1080P, 720P, WD1 recording
- 4 Channel IPC 4 Megapixel, 3 Megapixel, 1080P, 960P, 720P recording
- Adopt the standard H.264 high-profile compression format to get high-quality video at a much lower bit rate.
- Intuitive and user-friendly Graphics User Interface (GUI), window-style operation by mouse
- Supports manual, timer, motion, and sensor recording
- 8 channels simultaneously playback
- Time slice, time, event (manual, sensor, motion), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
- Remote control via IE or CMS preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 4K output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QR Code scanning by mobile phone and PAD
- Powerful smartphone and Pad surveillance with iOS and Android OS
SKU: TP8
Categories: 8 Channel DVR Coaxial HD Recorder, HD Coaxial DVR Recorders
Tags: 8 Channel PentaBrid Recorder, Dual H.265 and H.264 Codecs, HDCVI Pentabrid, HDCVI/AHD/TVI/CVBS Auto-detect, NDAA Compliant;, Seagate, Two-Way Audio- Description
- Attachment
- Speciifications
- Additional information
- Reviews (0)
Description

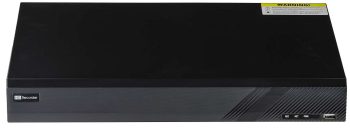

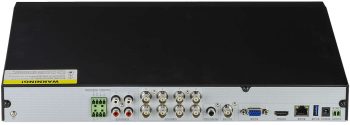

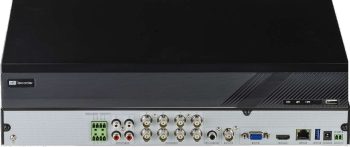

The Eyemax TVST-TE2708 is a powerful and versatile 8-channel Pentabrid DVR system. It is designed to meet the needs of professional security surveillance systems. It is equipped with 8 BNC video inputs compatible with various camera types, including HD-TVI, AHD, HD-CVI, and 960H Analog. This allows for seamless integration with existing cameras. Thus, making it a cost-effective solution for upgrading security systems.
One of the standout features of the Eyemax TVST-TE2708 is its ability to support up to 4 8MP IP cameras. It can handle up to 12 total input channels with IP expansion, depending on the specific model variation. This provides users with a wide range of options for camera choices, allowing for a more customized and comprehensive surveillance system.
In terms of video quality, the Eyemax TVST-TE2708 does not disappoint. It can record and display video up to 8MP (4K) resolution. This provides crystal-clear images and videos. This clarity is made possible by its use of the standard H.265 high-profile compression format, ensuring efficient storage and high-quality video.
The Eyemax TVST-TE2708 also offers multiple output options. These include an HDMI 4K output for high-resolution display, as well as VGA and BNC outputs. This variety allows for convenient and flexible viewing options. Users can choose between a monitor or a larger display screen.
When it comes to storage, the Eyemax TVST-TE2708 has two SATA slots that can support up to 8 TB each. This provides users with ample storage space for their video recordings.
Furthermore, the DVR offers remote viewing and control capabilities. This makes it easy to access and manage the system from anywhere. Users can use a web client, CMS software, or mobile apps like SuperLive Plus on iOS and Android. Additionally, the setup process is hassle-free and user-friendly using QR code scanning.
The Eyemax TVST-TE2708 also offers various recording modes to suit different surveillance needs. These include manual, timer, motion detection, and sensor-triggered modes. Additionally, it supports audio with 4 inputs and one output, as well as alarm input/output ports. This allows for more comprehensive surveillance and the ability to capture both video and audio evidence.
| System | |
| Compression | Standard H.264 High Profile |
| CPU | Cortex A9 |
| OS | Embedded Linux |
| Video | |
| Input | BNC × 8 |
| Resolution | TVI / AHD : 5MP@20fps; 4MP, 3MP, 1080P, 720P, WD1 real time CVI : 1080P, 720P real-time |
| IP Input / Access Bandwidth | IPC × 4 / 24Mbps |
| Output | HDMI × 1: 4K × 2K / 1920 × 1080 / 1280 × 1024 VGA × 1: 1920 × 1080 / 1280 × 1024 BNC × 1: CVBS ( used as the main or spot output ) |
| Audio | |
| Input | RCA × 4 |
| Output | RCA × 1 |
| Two-way audio | Take up channel one audio input |
| Record | |
| Resolution | 5MP, 4MP, 4MP Lite, 3MP,1080P, 720P, WD1 |
| Frame Rate | 5MP : 10fps (PAL / NTSC) 4MP / 3MP : 12 fps (PAL) / 15 fps ( NTSC) 4MP lite/1080P/720P/WD1: 25 fps (PAL) /30 fps ( NTSC) |
| Bit Rate | 768Kbps ~ 8Mbps |
| Mode | Manual, timer, motion, sensor |
| IP Input | |
| Resolution | 4MP / 3MP / 1080P / 960P / 720P |
| Frame Rate | 25fps ( PAL ) 30fps ( NTSC ) |
| Playback | |
| Playback | 8 Channels |
| Search | Time slice / time / event / tag search |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refer to different record events |
| Function | Play, pause, FF, FB, digital zoom, etc. |
| Alarm | |
| Mode | Manual, sensor, motion, exception |
| Input | 4 |
| Output | 1 |
| Triggering | Record, snap, preset, e-mail, etc. |
| Network | |
| Interface | RJ45 10 / 100 Mbps × 1 |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| Web Client | Multiple users online |
| Mobile Device | |
| OS | iOS, Andriod |
| Storage | |
| HDD | SATA × 2, max 8TB per HDD |
| Backup | |
| Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes |
| Port | |
| RS485 | RS485 × 1, connect to PTZ or keyboard |
| USB | USB 2.0 × 1 ( front panel ) USB 3.0 × 1 ( rear panel ) |
| Remote Controller | Yes |
| Others | |
| Power Supply | DC 12V |
| Consumption | ≤ 10W ( without HDD ) |
| Dimensions W × D × H | 15 inches (38.1 cm) × 10.56 inches (26.82 cm) × 2.05 inches (5.21 cm) |
| Work Environment | 12 °F (-11.11 °C) ~ 122 °F (50 °C), 10% ~ 90% humidity |
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 20 × 14 × 7 in |
| Hard Drive | No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive |
