ANE-L7012L
Original price was: $310.00.$147.95Current price is: $147.95.

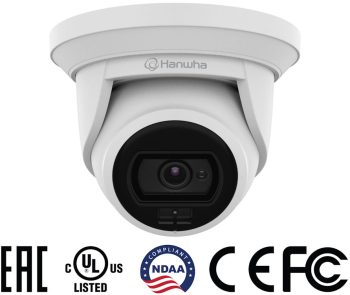

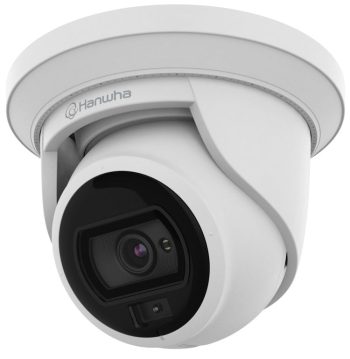

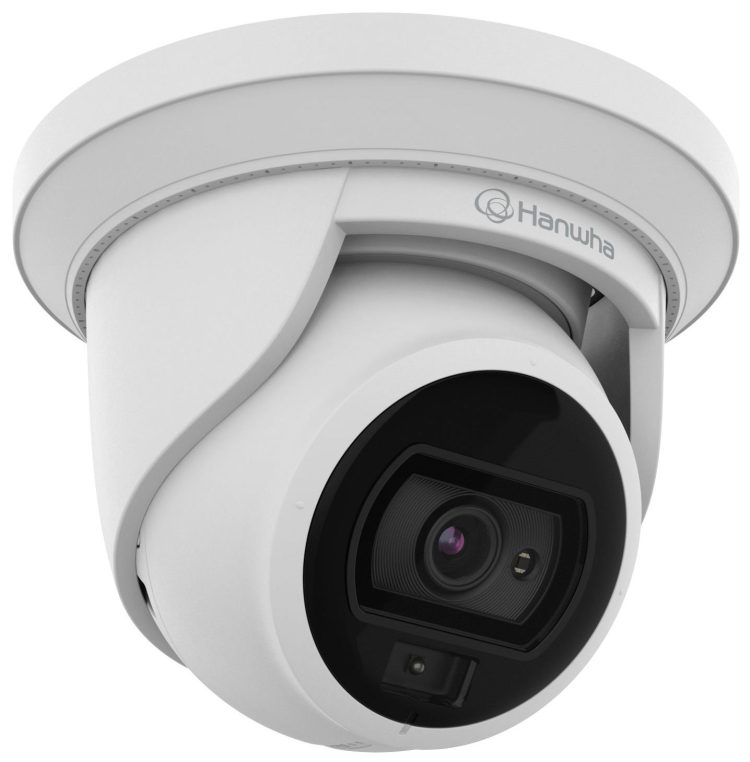

Hanwha Vision ANE-L7012L 4MP Outdoor Network White Light Flateye Camera
- 4 megapixel (2560 × 1440) resolution
- Built-in 3mm fixed lens FoV H: 98.3° / V: 54.2°
- 30 fps at all resolutions (H.265/H.264)
- H.265/H.264, MJPEG triple codec
- WDR (120dB)
- virtual area (intrusion/enter/exit), virtual line (crossing/direction), motion detection, tampering
- Micro SD/SDHC memory slot (Max. 128GB)
- PoE powered
- Hallway view, WiseStream II support
- IP66, IK10 support
SKU: 8801089226013
Category: 4 MegaPixel Network IP Cameras
Tags: BLC Backlight compensation, Class3), DORI (EN62676-4 standard), H.265 H.264 and M-JPEG, IK10 Vandal Resistance, IP66/IP67 Ingress Protection, NDAA Compliant;, ONVIF Profile S/G/T, POE IEEE802.3AF, SSDR (Samsung Super Dynamic Range), SSNR Samsung Super Noise Reduction, WDR (Wide Dynamic Range)- Description
- Product Documents
- Specifications
- Reviews (0)
Description
The Hanwha Vision ANE-L7012L is a 4-megapixel outdoor network turret camera built for reliable, full-color surveillance around the clock. As part of the Wisenet A Series, this distinctive “Flateye” design combines a compact turret form factor with advanced imaging technology. Therefore, it is a strong choice for security applications. It excels in situations that demand clarity, coverage, and durability.
With crisp 4MP resolution at 2560 × 1440 and frame rates up to 30 fps, the ANE-L7012L delivers detailed video. This makes it suitable for identifying activity with precision.
Its 3 mm fixed focal lens provides a wide 98.3° horizontal and 54.2° vertical field of view. As a result, it helps cover broad outdoor areas with fewer blind spots.
This wide-angle performance is ideal for entrances, walkways, perimeters, and open public spaces.
A major advantage of this camera is its continuous full-color capability, even in total darkness. The f/1.2 large aperture lens works with a warm-color white light LED. This preserves vivid color video at night for distances up to 65 feet (19.81 m). In contrast to monochrome in low light, the ANE-L7012L maintains usable color detail. This feature can make events easier to review and investigate.
Efficiency is another key strength. The camera supports H.265, H.264, and MJPEG triple codecs, along with WiseStream II technology, to reduce bandwidth and storage demands without sacrificing image quality. It also operates exclusively via Power over Ethernet (PoE). This streamlines installation by delivering both data and power through a single network cable.
Built for tough environments, the ANE-L7012L features a rugged aluminum housing with IP66 weatherproofing and IK10 impact protection. It includes an onboard micro-SD/SDHC/SDXC slot for storage expansion up to 128 GB. This provides a convenient backup or edge recording option. Furthermore, the integrated edge analytics can trigger monitoring events without external servers. It detects intrusion, entrance, exit, and directional movement across custom lines.
| Video | ||
| Imaging Device | Size | 1/2.8” |
| Type | CMOS | |
| Resolution | 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15 fps (@4 MP Max. 2fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.05 |
| Lens | ||
| Focal Length (mm) | ||
| Max Aperture Ratio (F number) | Wide | 1.2 |
| Angular Field of View | Horizontal | 97° |
| Vertical | 53° | |
| Diagonal | 113° | |
| Min. Object Distance. | 1.1m(3.6ft) | |
| Focus Control | Fixed | |
| Pan / Tilt / Rotate | ||
| Pan/Tilt/Rotate Range | Pan | 0°~350° |
| Tilt | 0°~75° | |
| Rotate | 0°~360° | |
| Operational | ||
| Day & Night | Auto (Electrical) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | Quantity | 4ea |
| Shape | 8-point polygonal zones | |
| Operational | ||
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti-flicker |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload (image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, Light alarm | |
| Light Type | Warm color | |
| Light Viewable Length | Warm Light | 65.61 ft (20 m) |
| Analytics | ||
| Analytics Events | Normal | Defocus detection, motion detection, tampering, virtual area (intrusion/enter/exit), and virtual line(Crossing, Direction) |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PPPoE, PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) | |
| Security | ||
| OS/Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication prevents brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP | |
| Security | ||
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, encrypt compression for live recording file export | |
| Audit | Access/System/Event Log management | |
| Device ID | Device certificate (Hanwha Vision Root CA) | |
| Secure Storage | SD card partition encrypt (AES-256) | |
| General | ||
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 128GB x 1slot |
| Environmental & Electrical | ||
| Operating Condition | Temperature | -22°F (-30°C) ~ 131°F (55°C) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Startup should be done at above -20°C | |
| Storage Condition | Temperature | -22°F (-30°C) ~ 131°F (55°C) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 7.6W, typical 4.2W |
| Mechanical | ||
| Color | White | |
| Material | Aluminum, Plastic | |
| RAL Code | RAL9003 | |

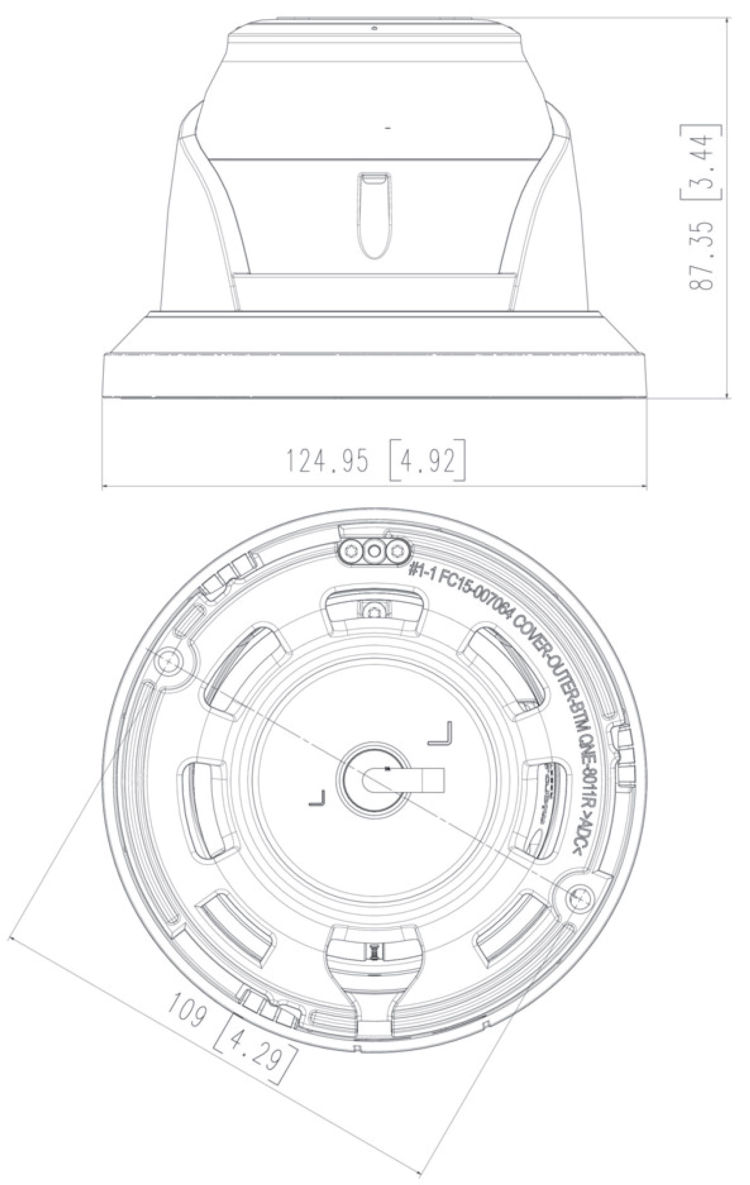

| Product Dimensions | ø 4.92 inches (12.5 cm) x 3.44 inches (8.74 cm) | |
| Product Weight | 620g(1.37lb) | |
| Compatible Gang Box | Single, Double, 4″ Octagon | |
| Certifications & Standards | ||
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA—EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000 -3 -3 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10 | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/8PPF) | Wide | 148.62 ft (45.3 m) |
| Observe (63PPM/19PPF) | Wide | 59.45 ft (18.12 m) |
| Recognize (125PPM/ 38PPF) | Wide | 29.72 ft (9.06 m) |
| Identify (250PPM/ 76PPF) | Wide | 14.86 ft (4.53 m) |
