EC-D4F28M-V4
Original price was: $279.00.$229.00Current price is: $229.00.Ea.
Call us or log in for better pricing

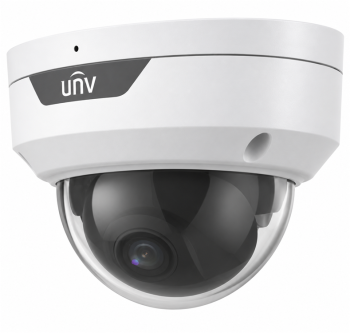

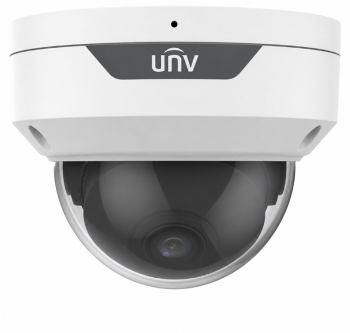

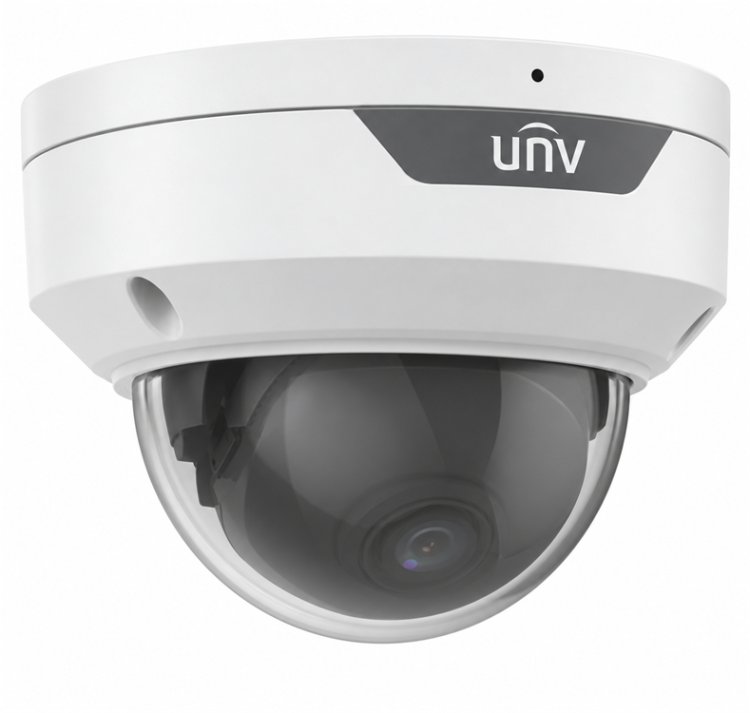

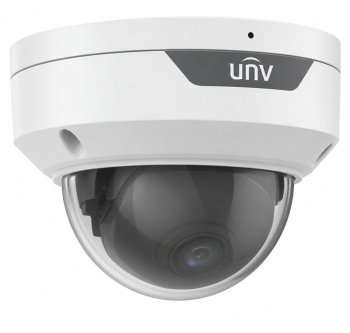

EC-D4F28M-V4 4MP Fixed Dome Network Camera
- 4MP resolution with a 2.8mm fixed lens
- Smart IR night vision up to 30m (98ft)
- Built-in microphone with PoE support
- IP67 weather protection and IK10 impact resistance
- NDAA compliant Uniview camera
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
Description
The Uniview EC-D4F28M-V4 is a 4MP dome network camera for video. Also, this 30m Smart IR dome camera is an IP67 IK10 PoE camera for offices, stores, and entry areas. Therefore, the 2.8mm fixed lens dome gives a wide view of rooms, doors, paths, and ground.
This camera records video at up to 2560 × 1440. In addition, it works with Ultra 265, H.265, H.264, and MJPEG. These formats give users a choice for saved video. As a result, more than one video stream can serve a recorder, browser, or mobile app.
The Uniview 4MP dome camera can see at night for up to 30 meters, or about 98 feet. Also, this 30m Smart IR dome camera uses an IR-cut filter to shift between day and night as the light changes. Wide dynamic range helps show detail when bright and dark areas share one view. In addition, noise reduction helps make the video clean.
A built-in mic records sound near the camera. Therefore, Power over Ethernet can send power and data through one network cable. A 12 V DC input gives the installer another way to power the unit.
The EC-D4F28M-V4 camera resists rain, dust, and hard impacts. Also, this IP67 IK10 PoE camera has a three-axis mount that makes it easier to aim after it is fixed in place. It works with common network rules and ONVIF profiles on video systems.
The Uniview EC-D4F28M-V4 is listed as NDAA compliant. It is a useful choice for a site that needs a 4MP dome network camera with a wide fixed lens, Smart IR, sound, PoE, and a strong shell. Use it for a new system, a camera upgrade, or added views at a current site. As a result, the 2.8mm fixed lens dome fits many settings and covers key areas.
| Camera | |||||
| Sensor | 1/3” progressive scan, 4.0 megapixel, CMOS | ||||
| Minimum Illumination | Color: 0.01Lux (F2.0, AGC ON) 0Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan 8° to 360° , Tilt: 0° to 68°, Rotate: 10° to 360° | ||||
| S/N | >56dB | ||||
| WDR | DWDR | ||||
| Lens | |||||
| Lens Type | 2.8 mm @ 2.0, fixed focal | ||||
| Lens Mount | M12 | ||||
| Angle of View (H) | 97.0° | ||||
| Angle of View (V) | 52.2° | ||||
| Angle of View (O) | 107.5° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |
| Illuminator | |||||
| IR Range | 98 ft (ca. 30 m) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, main profile, high profile | ||||
| Frame Rate | Main Stream: 4MP (2560×1440), Max 25 fps; 3MP (2304×1296), Max 30 fps; 1080P (1920×1080), Max 30 fps; 720P (1280×720), Max 30 fps Sub Stream: D1 (720×576), Max 30fps; 640*360,Max 30fps; 2CIF(704×288), Max 30fps; CIF(352×288), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~6144 kbps | ||||
| U-code | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, and sharpness, gain adjustable by web browser | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Behavior Detection | Cross line, intrusion(based on human body detection) | ||||
| Motion detection, tampering alarm | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Certification | |||||
| EMC | FCC: FCC Part 15 | ||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 4.0W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||

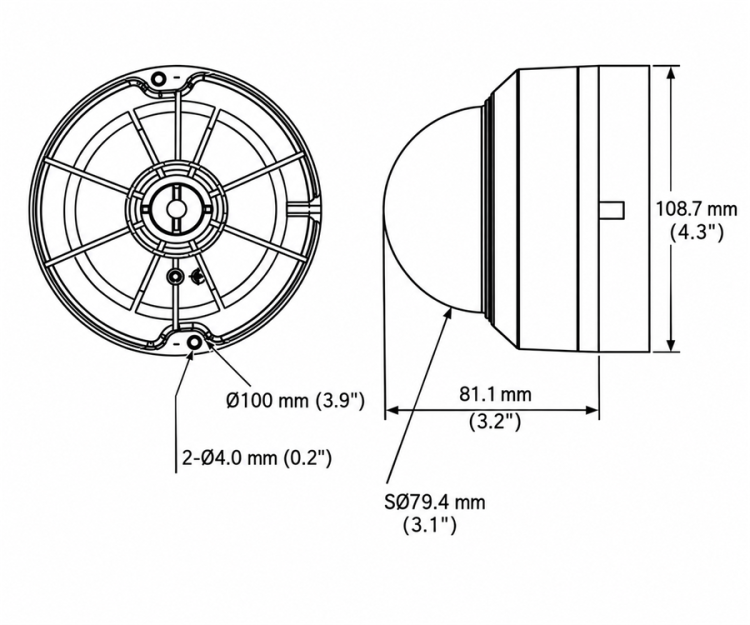

| Dimensions (Ø x H) | Ø4.3 inches (ca. 8 cm) x 3.2 inches (ca. 8 cm) | ||||
| Weight | 0.79 lb (0.36 kg) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -22°F (-30°C)~ 140°F (60°C), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -22°F (-30°C)~ 140°F (60°C), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
| Ingress Protection | Ingression protection: IP67 Vandal resistant: IK10 | ||||
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 6 × 5 in |
