NCU-E4322-W28

0 out of 5

Original price was: $200.99.Current price is: $120.95.

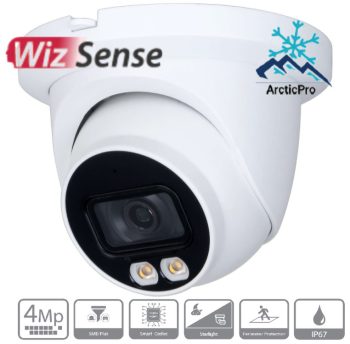

Eyemax NCU-E4322-W28 4Megapixel Night Color Turret Network Camera

4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition Outputs max. 4MP (2688 × 1520) @ 30 fps
H.265 CODEC, high compression rate, low bit rate
Built-in Warm LED, max. LEDs distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power support
IP67 protection
SMD Plus

SKU: NCU-E4322-W28 Categories: 4 MegaPixel Network IP Cameras, Network IP Cameras Tags: 1/3” 4 MP Progressive-scan CMOS Sensor, 3D DNR (3D Digital Noise Reduction), BLC Backlight compensation, H.265+ and Smart H.264+ Dual Codec, HLC Highlight compensation, ICR True Day and Night Auto Switch, IP67 Ingress Protection, ONVIF, PoE (IEEE 802.3af)

Description
Product Documents
Specifications
Additional information
Collsam Brands

Description

It is possible to use the Eyemax NCU-E4322-W28 Night Color Turret Network Camera both at night and during the day. There is a 1/2.9” CMOS image sensor that can take good pictures even in low light. This makes it an ideal choice for both indoor and outdoor environments.

The Eyemax NCU-E4322-W28 has a maximum resolution of 4MP (2688 1520) at 30 frames per second. The H.265 CODEC is used to compress images and reduce storage space and bandwidth usage. This is especially beneficial for businesses or homes with limited storage capacity or slower internet speeds.

There is a built-in Warm LED that allows for better visibility and improved image quality in low-light environments. The camera also features a Region of Interest (ROI) function, SMART H.264+/H.265+ MJPEG compression, and flexible coding. This allows for more efficient use of network resources while maintaining high-quality video footage.

The Eyemax NCU-E4322-W28 has many advanced features that improve it and easier to use. The camera has a rotation mode, WDR, 3D digital noise reduction (3D DNR), highlight compensation (HLC), and BLC. The camera works well in different lighting situations, like when there is a lot of light or backlighting.

Moreover, the Eyemax NCU-E4322-W28 also offers intelligent detection capabilities, including Intrusion and Tripwire detection. This feature allows for the classification and precise detection of both vehicles and humans, providing enhanced security and accurate monitoring. The camera has a microphone and can use 12V DC or PoE power. This makes it easy to install and affordable.

The Eyemax NCU-E4322-W28 is designed to be durable and resistant to harsh weather conditions. The camera’s SMD Plus feature distinguishes between false alarms triggered by rain, leaves, or wild animals and actual dangers. This helps reduce the chance of false alarms and improves the surveillance system. The Eyemax 4Megapixel Night Color Turret Network Camera from Eyemax is a complete security solution. It combines advanced features, high-quality performance, and durability.

Datasheet

Download

Eyemax NCU-E4322-W28 4MP Night Color Turret Camera. High image definition, low bit rate, and intelligent detection for any environment. IP67 protection Datasheet.

Camera
Image Sensor	1/2.7-in. 4 MP Progressive-scan CMOS
Effective Pixels	2688(H) x 1520(V)
RAM/ROM	512 MB/128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination	Color: 0.003 lux at F1.0
Illuminator Type	Two (2) White-light LEDs
Illumination Distance	98.43 ft (30 m)
Illuminator Control	Auto, Manual
S/N Ratio	Greater than 56 dB
Lens
Lens Type	Fixed-local
Mount Type	M12
Focal Length	2.8 mm
Maximum Aperture	F1.0
Angle of View	Horizontal: 103° Vertical: 53° Diagonal: 122°
Iris Type	Fixed
Focus Control	Fixed
Close Focus Distance	47.24 inches (1.2 m)
DORI¹ Distance	Lens	Detect (8 ppf)	Observe (19 ppf)	Recognize (38 ppf)	Identify (76 ppf)
	2.8 mm	183.70 ft (55.99 m)	73.50 ft (22.4 m)	36.70 ft (11.19 m)	18.40 ft (5.61 m)
Installation Angle
Range	Pan: 0˚ to 360˚ Tilt: 0˚ to 780˚ Rotation: 0˚ to 360˚
Video
Compression	Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only)
Streaming Capability	Three (3) Streams
Resolution	4 MP (2688 × 1520), 3 MP (2304 × 1296), 1080p (1920 × 1080), 1.3 MP (1280 × 960), 720p (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240)
Frame Rate	Main Stream: 4 MP (2688 × 1520) at 30 fps
	Sub Stream 1: D1 at 30 fps
	Sub Stream 2: 720p at 30 fps
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 3 Kbps to 8192 Kbps H.265: 3 Kbps to 8192 Kbps
Day/Night	Color, Black White
BLC Mode	BLC, HLC, True WDR (120 dB), SSA
White Balance	Auto, Natural, Streetlamp, Outdoor, Manual, Regional Custom
Gain Control	Auto, Manual, Gain Priority, Shutter Priority
Noise Reduction	3D DNR
Motion Detection	Off, On (4 Zones, Rectangular)
Region of Interest	Off, On (4 Zones)
Advanced Features	Defog, Smart Illumination
Flip	0°, 90°, 180°, 270°
Mirror	Off, On
Privacy Masking	Off, On (4 Areas)
Audio
Compression	PCM, G.711A, G.711Mu, G.726
Network
Ethernet	RJ-45 (10/100 Base-T)
Protocol	HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPoE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
Interoperability	ONVIF Profile S, G, T; CGI, Genetic, P2P
Auto-Register	Support
Streaming Method	Unicast / Multicast
Maximum User Access	20 Users (total bandwidth: 64 MB)
Edge Storage	Network Attached Storage (NAS) FTP, SFTP Micro SD Slot, maximum 256 GB
Web Viewer	IE (Version 8 and higher), Chrome, Firefox
Management Software	DSS, DMSS
Mobile Operating System	IOS, Android
Cybersecurity	Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety	UL60950-1 CAN/CSA C22.2 No.60950-1-07 EN62368-1
Electromagnetic Compatibility (EMC)	CFR 47 FCC Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU
Interface
Audio	Input: Built-in Microphone
Electrical
Power Supply	12 VDC or PoE (IEEE 802.3af, Class 0)
Power Consumption	< 8.4 W
Environmental
Operating Conditions	-40 °F (-40 °C) to 140 °F (60 °C), less than 95% RH
Storage Conditions	-40 °F (-40 °C) to 140 °F (60 °C)
Ingress Protection	IP67 Ingress Protection
Construction
Casing	Metal with Plastic Ring

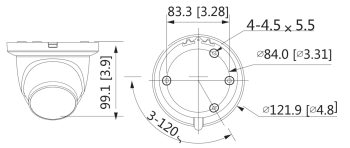

Dimensions (L × W × H)	ø 4.80 inch (12.19 cm) x 3.90 inch (9.91 cm)
Net Weight	1.05 lb (0.48 kg)
Gross Weight	1.45 lb (0.66 kg)
Analytics+ Functions²
Perimeter Protection	• Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter. • Monitors a combination of detection methods. • Search and retrieve video based on target type.
Smart Motion Detection+²	• Differentiates between and classifies human and vehicle objects. • Filters false alarms due to leaves, lights, animals, and other inconsequential objects. • Extracts human or vehicle objects from recorded video for quick target search and retrieval.
Recommended Detection Distance	Human Vehicle	32.81 ft (10 m) 49.21 ft (15 m)
Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features	• Tampering with the camera. • Error writing to an onboard Micro SD card. • Error sending or receiving data over the network. • Unauthorized access to the camera. • IP Address Conflict
Premium Features
Scene Change	A person or object moves the camera to change the scene or covers the camera to obscure the scene.
The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. Pair a Smart Motion Detection camera with a Dahua recording device that also offers SMD functionality to take advantage of SMD alarm filtering and object classification when searching and playing back recorded video.
