-38%

NIU-E4152-W28

Upgrade your surveillance with Eyemax NIU-E4152-W28 4MP Outdoor IR Turret Camera. Featuring H.265+ encoding, True WDR, and advanced functions for enhanced security.

NIU-E4152-W28

Original price was: $259.99.Current price is: $159.95.

In stock

Original price was: $259.99.Current price is: $159.95.

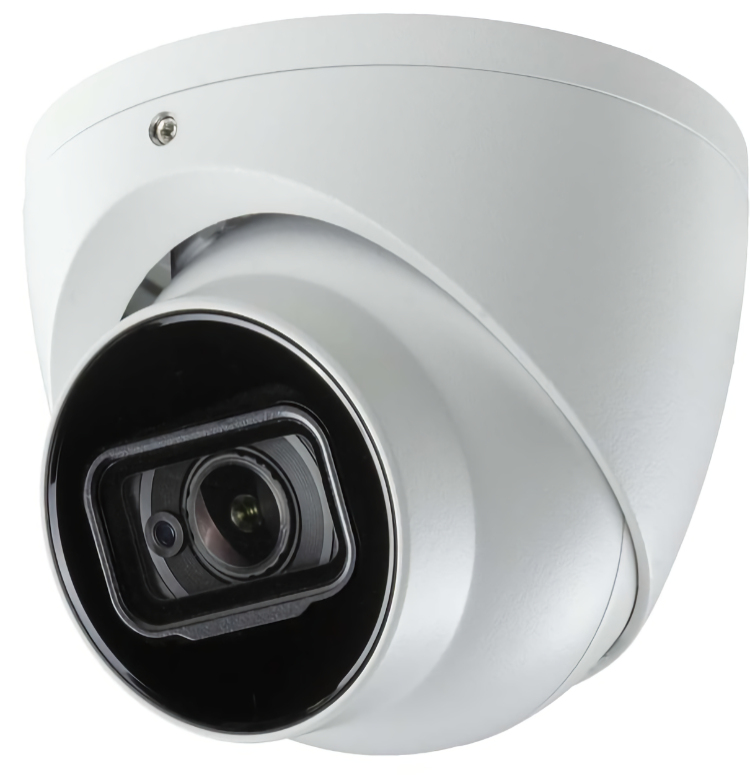

Eyemax NIU-E4152-W28 4Megapixel Outdoor IR Turret Camera with Advanced Features

  • 4Megapixel resolution
  • Built-in microphone
  • Face Capture, Perimeter Protection, People Counting functions
  • 1/1.8″ Progressive Scan 2.8 mm fixed lens CMOS Maximum resolution 2688 × 1520 @ 25/30fps
  • H.265 and H.264 triple-stream encoding
  • True WDR (140 dB) Day and Night (ICR) 3D DNR AWB AGC BLC
  • Remote access for real-time monitoring and playback
    • Web viewer
    • CMS (DSS/PSS)
    • DMSS
  • Provides clear images even in low light or complete darkness. Up to 164.04 ft (50 m)
  • IR cut filter for capturing accurate colors during the day
  • Metal body IP67 Ingress Protection
  • Built-in Micro SD memory slot for local storage up to 128 GB SD card
  • DC 12V or PoE power options
Eyemax LogoCollsam Security NDAA

Description

The Eyemax NIU-E4152-W28 4Megapixel Outdoor IR Turret Network Camera is the ultimate choice for all your outdoor surveillance needs. With its advanced features and high-quality components, this camera provides top-notch performance and delivers crystal clear images and videos.

This camera can take 4 megapixel pictures and make smooth videos at 25/30 frames per second. It’s easier to see every little thing in your video, and it’s easier to spot crucial info and potential dangers.

Equipped with a 2.8 mm fixed lens, this camera offers a wide-angle view of your surroundings. The 106° viewing angle provides a wider coverage area and reduces the number of cameras required for your surveillance setup. Additionally, the lens also supports face capture, allowing you to easily detect and identify individuals in your footage.

The Eyemax NIU-E4152-W28 is designed to work in any weather condition, thanks to its IP67 rated metal body. This weatherproof casing protects the camera from dust, water, and harsh environmental factors, making it suitable for outdoor installation. It can withstand extreme temperatures, ensuring reliable operation even in the harshest climates.

One of the most impressive features of this camera is its advanced video compression technology. The H.265+ and H.264 triple-stream encoding allows for efficient data storage without compromising on the image quality. This means you can store more footage on your storage device without sacrificing the clarity of your videos.

In addition to its high-quality imaging capabilities, this camera also comes with various intelligent features. The True WDR (140dB) makes sure that the camera can take clear pictures in high-contrast lighting conditions. The 3D DNR, AWB, AGC, and BLC functions improve the image look. The camera also offers face capture, perimeter protection, and people counting functions, providing you with a comprehensive surveillance solution.

Datasheet

Download

Upgrade your surveillance with Eyemax NIU-E4152-W28 4MP Outdoor IR Turret Camera. Featuring H.265+ encoding, True WDR, and advanced functions for enhanced security Datasheet.

Camera
Image Sensor1/1.8” 4Megapixel progressive scan CMOS
Effective Pixels2688(H) × 1520(V)
RAM/ROM512MB/128MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto / Manual, 1/3 ~ 1/100,000s
Minimum Illumination0.002 Lux@F1.6
IR DistanceDistance up to 164ft (49.99 m)
IR On/Off ControlAuto / Manual
IR LEDs2
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8mm
Max. ApertureF1.6
Angle of ViewH: 113°
V:60°
Aperture TypeFixed
Close Focus Distance4.27ft (1.3 m)
DORI DistanceDetect: 190ft (57.91 m)
Observe: 75ft (22.86 m)
Recognize: 39ft (11.89 m)
Identify: 20ft (6.1 m)
Pan / Tilt / Rotation
Pan/Tilt/Rotation RangePan:0° ~ 360°
Tilt:0° ~ 78°
Rotation:0° ~ 360°
Artificial Intelligence
Face DetectionSupport face image capture
Perimeter ProtectionTripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering
People CountingSupport Line crossing/Region/Queuing people counting; Support 4 accesses independent detection, 4 areas independent detection
General Intelligence
Event TriggerMotion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
General IntelligenceObject Abandoned/Missing
Heat MapYes
Video
CompressionH.265 / H.264 / H.264B / H.264H / MJPEG (sub stream)
Smart CodecYes
Streaming Capability3 Streams
Resolution2688 × 1520 / 2560 × 1440 / 2304 × 1296 / 1080P (1920 × 1080) / 1.3M(1280 × 960) / 720P (1280 × 720) / D1(704 × 576/704 × 480) / VGA (640 × 480) / CIF (352 × 288 / 352 × 240)
Main Stream Frame Rate2688 × 1520 (1 ~ 25/30fps)
2560 × 1440 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
Sub Stream Frame RateD1 (1 ~ 25/30fps)
D1 (1 fps–50/60 fps)
Third Stream Frame Rate1080P (1 ~ 16fps)
Bit Rate ControlCBR / VBR
Bit RateH.264: 32 ~ 8192Kbps
H.265: 19 ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC, HLC, and WDR (140 dB)
White BalanceAuto / Natural / Streetlamp / Outdoor / Manual
Gain ControlAuto / Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization (EIS)N/A
Smart IRYes
DefogYes
Flip0° / 90° / 180° / 270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a / G.711Mu / G.726 / AAC / G.723
Network
EthernetRJ-45 (10/100Base-T)
ProtocolIPv4 / IPv6 / HTTP / HTTPS / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / 802.1x / SNMP
InteroperabilityONVIF (Profile S / Profile G / Profile T) / CGI / Milestone / Genetic / P2P
Streaming MethodUnicast / Multicast
Max. User Access.20 Users
Edge StorageNAS / FTP / SFTP / Micro SD card 256GB
Web ViewerIE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)
Management SoftwareSmart PSS, DSS, DMSS
SmartphoneiOS, Android
Certifications
CertificationsCE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Interface
Audio InterfaceBuilt-in microphone
RS485N/A
AlarmN/A
Electrical
Power SupplyDC 12V (±30%), PoE(802.3af) (Class 0)
Power Consumption<7.2W
Environmental
Operating Conditions−22 °F (-5.56 °C) ~ 140 °F (60 °C) / Less than 95% RH
Storage Conditions−22 °F (-5.56 °C) ~ 140 °F (60 °C)
Ingress ProtectionIP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions4.17 inches (10.59 cm) × 3.91 inch (9.93 cm)
Net Weight1.21lb (0.55 kg)
Gross Weight1.51lb (0.68 kg)
