NLP-C2712M-W72
Original price was: $408.99.$328.95Current price is: $328.95.
Eyemax NLP-C2712M-W72 License Plate Capture IP Camera 1080p 7~22 mm Varifocal Lens
- Starlight
- 2MP (1920 × 1080) @30fps
- Support smart H.265/H.264 coding
- ICR auto-switch, true day/night
- Up to 100m IR night view distance; motorized zoom lens
- 3D DNR, true WDR, HLC, BLC and ROI coding
- Built-in micro SD card slot, up to 256GB
- 1CH audio input; 1CH audio output
- 1CH alarm input; 1CH alarm output
- DC12V/PoE power supply
- Support three streams
- IP67 Ingress Protection
- Support mobile surveillance by smartphones with iOS and Android OS
- Intelligent analytics
- Video abnormality
- Video blur detection
- Video color cast detection
- Scene change
- License plate recognition
- Description
- Attachment
- Specifications
- Additional information
Description
The Eyemax NLP-C2712M-W72 License Plate Capture IP Camera can easily take clear and detailed pictures of license plates. Starlight technology and a high resolution of 1080p ensure clear and colorful images even in low light conditions. Furthermore, the camera has a lens with a motor that can change the focal length easily. This lets you take pictures of license plates from different distances.
This camera is great for fast roads, parking lots, and other places where vehicles are constantly moving. The camera also has a 330ft (100.58 m) IR range, ensuring that no details are missed even in complete darkness.
The Eyemax NLP-C2712M-W72 camera offers triple streams, allowing for simultaneous recording, live viewing, and remote access. This is made possible by its compatibility with various devices such as smartphones, tablets, and computers. You can have round-the-clock surveillance of your property from anywhere in the world with this camera.
This camera is good at taking pictures in dim light. WDR makes the pictures clear and balanced even in bright light. When capturing license plates of vehicles entering or exiting a parking lot, this is especially useful.
Designed with durability in mind, the Eyemax NLP-C2712M-W72 camera has an IP67 ingress protection rating, making it weatherproof and suitable for outdoor use. It can withstand harsh weather conditions such as rain, snow, and extreme temperatures. Furthermore, this camera can be powered by either 12VDC or PoE, allowing for flexible installation and easy integration into existing surveillance systems.
Overall, the Eyemax NLP-C2712M-W72 License Plate Capture IP Camera is a reliable and efficient solution for capturing license plates in various scenarios. With its advanced features, high-quality imaging, and durability, it is an ideal choice for businesses, organizations, and homeowners looking to enhance the security of their properties.
Camera | |
---|---|
Image Sensor | 1 / 2.8” CMOS |
Image Size | 1920 × 1080 |
Electronic Shutter | 1 / 3 s ~ 1 / 10000 s |
Iris Type | DC Iris |
Min. Illumination | 0.0026 lux@F1.2,AGC ON; 0 lux with IR 0.005 lux@F1.6, AGC ON; 0 lux with IR |
Lens | 7 ~ 22mm@F1.6, motorized |
Field of View | H: 44° ~ 17.6°; V:25.6° ~ 10°; D: 49.7° ~ 20.2° |
Lens Mount | Φ14 |
Wide Dynamic Range | 120dB |
BLC | Yes |
HLC | Yes |
Defog | Yes |
Digital NR | 3D DNR |
Angle Adjustment | Pan: 0° ~ 360°; Tilt:0° ~ 90°; Rotation: 0° ~ 360° |
Image | |
Video Compression | Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
H.264 Compression Standard | Baseline Profile / Main Profile / High Profile |
Resolution | 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240 |
Main Stream | 60Hz : 1080P / 720P(1 ~ 30fps ); 50Hz : 1080P / 720P(1 ~ 25fps) HFR Mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1 ~ 50fps) |
Sub Stream | 60Hz : 720P / D1 / CIF / 480 × 240 (1 ~ 30fps); 50HZ: 720P / D1 / CIF / 480 × 240 (1 ~ 25fps) |
Third Stream | 60Hz : D1 / CIF / 480 × 240 (1 ~ 30fps); 50HZ: D1 / CIF / 480 × 240 (1 ~ 25fps) |
Bit Rate | 64 Kbps ~ 6 Mbps |
Bit Rate Type | VBR / CBR |
Audio Compression | G711A / U |
Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
ROI | Each ROI to be configured separately |
Interfaces | |
Network | RJ 45 |
Video Output | No |
Audio | 1CH audio input; 1CH audio output |
Storage | Built-in micro SD card slot; up to 256GB |
Reset | Yes |
Alarm | 1CH alarm input; 1CH alarm output |
RS 485 | No |
Functions | |
Remote Monitoring | Web browsing, CMS remote control |
Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real-time transmission |
Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTMP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS |
Interface Protocol | ONVIF |
Storage | Network remote storage; micro SD card storage |
Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection |
Intelligent Analytics | Video blur detection, video color cast detection, scene change detection, license plate recognition |
General Function | Watermark, IP address filtering, video mask, heartbeat, password protection |
PoE | Yes, IEEE802.3af |
IR Distance | 70 ~ 100m |
Protection Grade | IP67 |
LPR | |
Snapshot | Overview and cutout of plate for picture |
Vehicle Plate Database | 10000 |
Capture Speed Range | 0 ~ 70km / h |
Others | |
Power Supply | DC12V / PoE |
Power Consumption | < 11W |
Operating Environment | -22 °F (-30 °C) ~ 140 °F (60 °C) Humidity: less than 95% (non-condensing) |

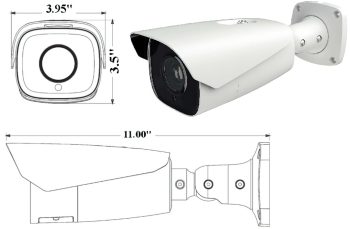

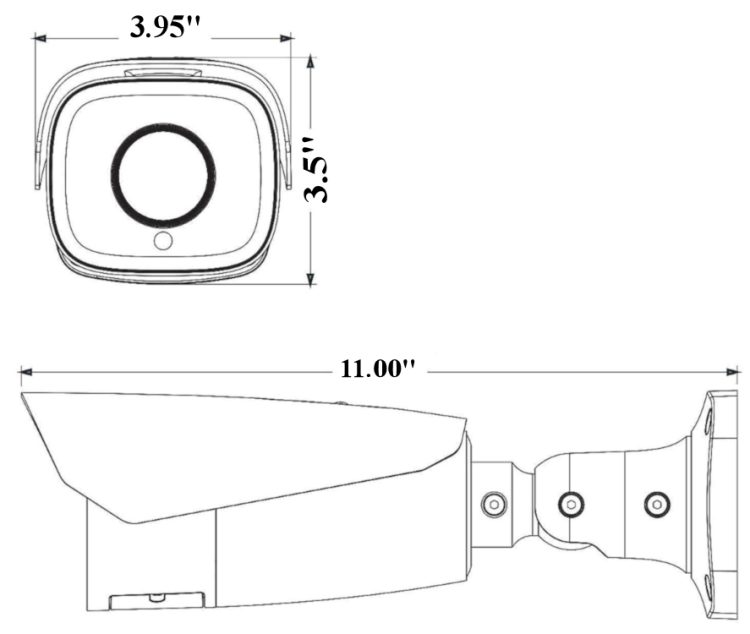

Dimensions | 11 inches (27.94 cm) × 3.95 inch (10.03 cm) × 3.5 inch (8.89 cm) |
Weight ( net) | Approximately 0.77 lb (0.35 kg). |
Installation | Ceiling or Wall mounting |
Certificate | CE, FCC |
Environmental Protection | Complies with Directive EU RoHS, WEEE (2012/19/EU), directive 94 / 62 / EC and REACH(EC1907/2006) |
Additional information
Weight | 3 lbs |
---|---|
Dimensions | 6 × 6 × 13 in |
