IFS04-P07-OIA4

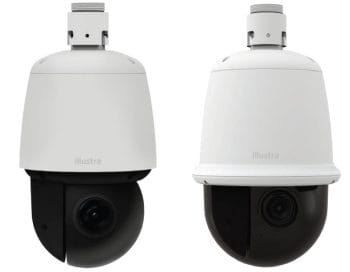

EXACQVISION Illustra Flex Gen4 American Dynamics IFS04-P07-OIA4 is a high-performance PTZ camera that offers exceptional features and durability.

IFS04-P07-OIA4

Original price was: $2,335.00.Current price is: $1,716.95.

In stock

Original price was: $2,335.00.Current price is: $1,716.95.

EXACQVISION IFS04-P07-OIA4 ILLUSTRA FLEX Gen4 4mp PTZ, Edge AI, TDN With IR, TWDR, IP66, IK10, Indoor And Outdoor

  • 2MP and 5MP resolution
  • Large field of view with 360° coverage
  • Auto-tracking capabilities
  • Built-in deep learning AI (Event Alerts, Forensic Search, Metadata)
  • Encrypted data transfer end-to-end
  • Fully interoperable with multiple VMS, including American Dynamics & Exacq
  • ONVIF profile S, G, M (profile T available in future release)
  • NDAA & TAA Compliant
  • 5-year warranty
Compare

Description

The EXACQVISION Illustra Flex Gen4 American Dynamics IFS04-P07-OIA4 is a top-of-the-line PTZ camera designed for both indoor and outdoor use. High-quality, detailed images are offered by this camera with a 4-megapixel resolution and a 30x lens. It has advanced features like bidirectional audio, alarm in and out, and automatic gain control.

The EXACQVISION Illustra Flex Gen4 American Dynamics IFS04-P07-OIA4 is notable for its motion detection tracking. This helpful feature lets the camera follow and track moving objects in its view, so you don’t miss critical moments. Pan, tilt, and zoom features on the camera allow you to get a closer look at specific areas.

It can take clear pictures in any light because it can see both day and night, has an automatic white balance, and doesn’t blink. Privacy masking and a wide dynamic range allow you to protect the privacy of individuals by blocking out specific areas from being recorded.

The EXACQVISION Illustra Flex Gen4 American Dynamics IFS04-P07-OIA4 is very durable and can be used both inside and outside. It is IP66 rated, so it can handle harsh outdoor conditions. It is also IK10 rated, meaning it can withstand impact from potential vandalism attempts. The camera follows NDAA and TAA rules, so it’s a good choice for government and federal buildings.

In conclusion, the EXACQVISION Illustra Flex Gen4 American Dynamics IFS04-P07-OIA4 is a high-performance PTZ camera that offers exceptional features and durability. With its advanced tracking and motion sensing capabilities, high-resolution images, and various essential features, this camera is a reliable and comprehensive solution for all your surveillance needs. Whether you require indoor or outdoor surveillance, this camera is sure to deliver reliable and high-quality performance. Choose the EXACQVISION Illustra Flex Gen4 American Dynamics IFS04-P07-OIA4 for all your surveillance needs and experience unparalleled peace of mind.

Datasheet

Download

EXACQVISION Illustra Flex Gen4 American Dynamics IFS04-P07-OIA4 is a high-performance PTZ camera that offers exceptional features and durability. Datasheet

Quick Start Guide

Download

EXACQVISION Illustra Flex Gen4 American Dynamics IFS04-P07-OIA4 is a high-performance PTZ camera that offers exceptional features and durability. Quick Start Guide

Installation and Configuration Guide.

Download

EXACQVISION Illustra Flex Gen4 American Dynamics IFS04-P07-OIA4 is a high-performance PTZ camera that offers exceptional features and durability Installation and Configuration Guide.

Additional information

Weight19 lbs
Dimensions9 × 7 × 15 in
AI Object ClassificationPerson, Bicycle, Bus, Car, Motorbike, Train, Truck, Any
Audio711, Bi-directional; 1 input, 1 output
Alarm Input/Output2/2
Day/NightTDN CF removal
DefogSmart Defog supported
Digital Noise Reduction2D and 3D

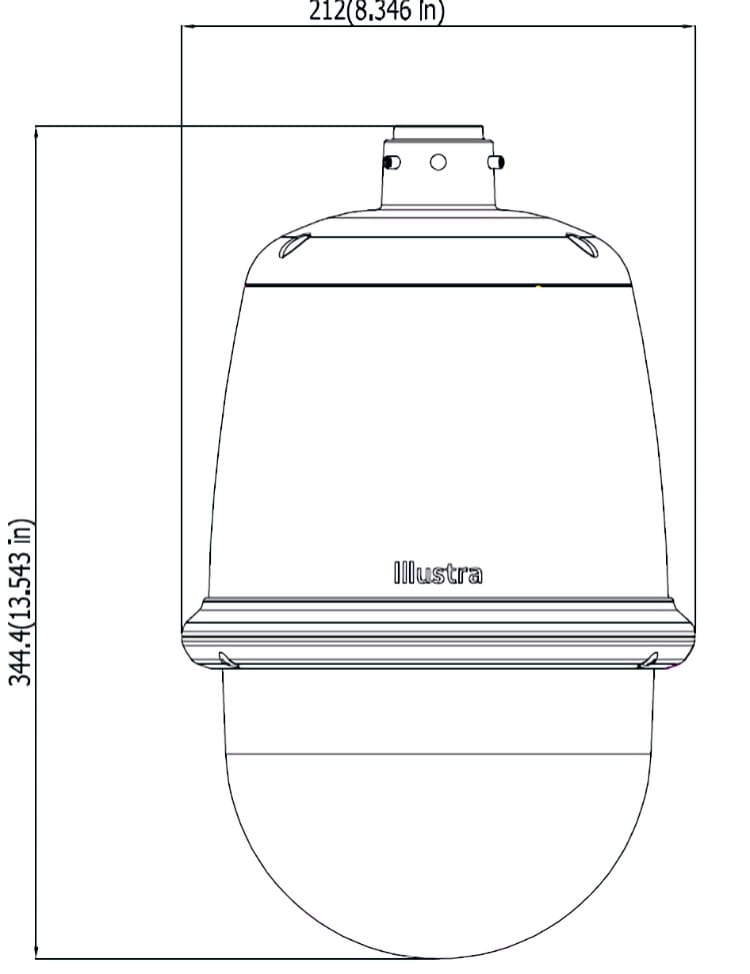

DimensionsOutdoor & Indoor: Ø 7.48 inch (19 cm) × 13.23 inch (33.6 cm) ; Bubble PTZ: Ø 8.35 inch (21.21 cm) x 13.54 inch (34.39 cm)
Environment RatingTrue WDR 120dB, Off / Smart WDR / True WDR2x / True WDR 3x
EthernetIEEE 802.3, 10/100 Base-T Ethernet, RJ45, auto-sensing
Field of ViewWide: 59.8° H
40.5° V
Tele: 2.34° H
1.48° V
Focal Length4.5 – 135mm
Focus ControlMotorized, Continuous Auto Focus, Manual Focus
H.264Yes
H.265Yes
Housing ColorSignal White – RAL 9003
ImagerSony IMX327 1/2.8” CMOS imager
Image StabilizationElectronic Image Stabilization
Intelligent Guard TourPerson Tracking
IntelliZipYes
IR DistanceIndoor Model 164ft (49.99 m) ; Outdoor Model 656ft (199.95 m)
Lens TypeVarifocal Lens, DC-Iris, IR Corrected
Manual Speed0.25° ~ 100°/s scaled proportionally zoom position
Max Frame Rate2MP @ 60fps
MJPEGYes
Motion DetectionYes (Single Full-screen Zone)
Noise ReductionDigital Noise Reduction 2D and 3D
Onboard StorageBuilt-in Micro SDXC slot up to 1TB; card not included
ONVIF CompliantProfile S, G, M (Profile T available in future firmware release)
Operating TemperatureOutdoor: -40 °F (-40 °C) to +149 °F (65 °C) (IR off at 140° F) Indoor and Bubble: -4 °F (-20 °C) to 140 °F (60 °C)
Outdoor RatingIP66, NEMA 4x
Pan Travel360° Continuous
Power InputOutdoor: Power over Ethernet (PoE++) IEEE 802.3bt Type 4 Class 8 Indoor & Bubble: Power over Ethernet (PoE+) IEEE 802.3at PoE+ Type 2
Power SupplyOutdoor: 24VAC, 48VDC; Indoor & Bubble: 24VAC, 48VDC
Presets300
Privacy Zones8
Resolution Options1920 × 1080 (1080p) 16:9
1664 × 936 (HD+) 16:9
1280 × 720 (720p) 16:9
1024 × 576 (PAL+) 16:9
960 × 544 (qHD) 16:9
816 × 464 16:9
800 × 448 16:9
640 × 360 (nHD) 16:9
480 × 272 16:9
Shutter Speed≥ 1/32,000 to 1/4 s
Simultaneous Users10
Supported ProtocolsTCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP
Tilt Travel+15° ~ -90°
TrickleStorYes, encrypted storage
Vandal-ResistantIK10
Video StreamsEncrypted via HTTPS
WeightOutdoor: 5.8 kg (12.79 lbs); Indoor: 5.1 kg (11.24 lbs); Bubble PTZ: 6.6 kg (14.55 lbs)
Wide Dynamic RangeTrue WDR 120dB, Off / Smart WDR / True WDR2x / True WDR 3x
Zoom30x Optical Zoom, 12x Digital Zoom
AI Object ClassificationPerson, Bicycle, Bus, Car, Motorbike, Train, Truck, Any
Audio711, Bi-directional; 1 input, 1 output
Alarm Input/Output2/2
Day/NightTDN CF removal
DefogSmart Defog supported
Digital Noise Reduction2D and 3D
DimensionsOutdoor and Indoor: Ø 7.48 inch (19 cm) × 13.23 inch (33.6 cm); Bubble PTZ: Ø 8.35 inch (21.21 cm) x 13.54 inch (34.39 cm)
Environment RatingTrue WDR 120dB, Off / Smart WDR / True WDR2x / True WDR 3x
EthernetIEEE 802.3, 10/100 Base-T Ethernet, RJ45, auto-sensing
Field of ViewWide: 58.1° H
40.5° V
Tele: 2.34° H
1.48° V
Focal Length5.2 – 156mm
Focus ControlMotorized, Continuous Auto Focus, Manual Focus
H.264Yes
H.265Yes
Housing ColorSignal White – RAL 9003
ImagerSony IMX335 1/2.8” CMOS imager
Image StabilizationElectronic Image Stabilization
Intelligent Guard TourPerson Tracking
IntelliZipYes
IR DistanceIndoor Model 164ft (49.99 m); Outdoor Model 656ft (199.95 m)
Lens TypeVarifocal Lens, DC-Iris, IR Corrected
Manual Speed0.25° ~ 100°/s scaled proportionally zoom position
Max Frame Rate5MP @ 30fps/2MP @ 60fps
MJPEGYes
Motion DetectionYes (Single Full-screen Zone)
Noise ReductionDigital Noise Reduction 2D and 3D
Onboard StorageBuilt-in Micro SDXC slot up to 1TB; card not included
ONVIF CompliantProfile S, G, M (Profile T available in future firmware release)
Operating TemperatureOutdoor: -40 °F (-40 °C) to 149 °F (65 °C) (IR off at 140 °F (60 °C) Indoor and Bubble: -4 °F (-20 °C)) to 140 °F (60 °C)
Outdoor RatingIP66/67, NEMA 4x
Pan Travel360° Continuous
Power InputOutdoor: Power over Ethernet (PoE++) IEEE 802.3bt Type 4 Class 8 Indoor & Bubble: Power over Ethernet (PoE+) IEEE 802.3at PoE+ Type 2
Power SupplyOutdoor: 24VAC, 48VDC; Indoor & Bubble: 24VAC, 48VDC
Presets300
Privacy Zones8
Resolution Options2560 × 1920 (5MP) 4:3
2560 × 1440 (4MP)* 16:9
1920 × 1080 (1080p) 16:9
1664 × 936 (HD+) 16:9
1280 × 720 (720p) 16:9
1024 × 576 (PAL+) 16:9
816 × 464 16:9
800 × 600 (SVGA) 4:3
800 × 448 16:9
640 × 360 (nHD) 16:9
480 × 272 16:9
*default resolution
Shutter Speed≥ 1/32,000 to 1/4 s
Simultaneous Users10
Supported ProtocolsTCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP
Tilt Travel+15° ~ -90°
TrickleStorYes, encrypted storage
Turnstile ModeIK10
Video StreamsEncrypted via HTTPS
WeightOutdoor: 12.79 lb (5.8 kg); Indoor: 11.24 lb (5.1 kg); Bubble PTZ: 14.55 lb (6.6 kg)
Wide Dynamic RangeTrue WDR 120dB, Off / Smart WDR / True WDR2x / True WDR 3x
Zoom30x Optical Zoom, 12x Digital Zoom
