NPT-D20H20
Original price was: $1,053.99.$576.95Current price is: $576.95.

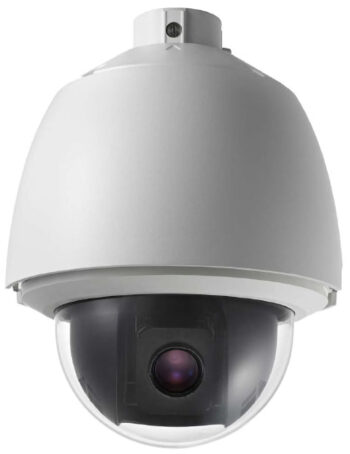

Eyemax NPT-D20H20 PTZ Camera, 2 Megapixel, 20x Zoom, PoE+
- High-performance CMOS, up to 1920 × 1080 resolution
- ±0.1° Preset Accuracy
- ONVIF(Open Network Video Interface Forum), CGI (Common Gateway Interface), and PSIA (Physical Security Interoperability Alliance) to ensure greater interoperability between different platforms and compatibility
- 3D intelligent positioning function
- Power-off memory function: restore PTZ & lens status after reboot
- IP66 standard (outdoor dome)
- Impact Protection: IEC60068 ~ 2-75 test, Eh, 20J; EN50102, up to IK10
- Support EZVIZ cloud P2P
- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description
The Eyemax NPT-D20H20 is a top-of-the-line outdoor IP network PTZ camera that is perfect for all of your surveillance needs. With its advanced features and powerful capabilities, this camera is designed to provide high-definition monitoring and maximum flexibility. Whether you are looking to secure your home or business, this camera is the perfect solution.
One of the most impressive features of the Eyemax NPT-D20H20 is its 2-megapixel resolution. This delivers clear and crisp images with every frame. In addition, this high-resolution capability ensures that you never miss a detail. As a result, it is perfect for monitoring large outdoor spaces or long-range views.
Additionally, the 20× optical zoom allows you to zoom in and out with precision. This gives you the ability to closely monitor specific areas or objects without compromising on image quality.
The Eyemax NPT-D20H20 is equipped with a 1/2.8” CMOS sensor; this camera is designed to capture high-quality footage even in low-light conditions. Therefore, this makes it suitable for 24/7 surveillance. It ensures that your property is always under constant monitoring. The 4.7 mm to 94 mm auto-focus zoom lens provides a wide range of focal lengths. This allows you to capture both wide-angle shots and close-up details with ease.
One of the most convenient features of the Eyemax NPT-D20H20 is its support for PoE+ (Power over Ethernet). As a result, the camera can receive both data and power through a single Ethernet cable. This simplifies installation and reduces the need for additional cables and power sources. Because of these advantages, it is a cost-effective and hassle-free solution for your surveillance needs.
Additionally, the Eyemax NPT-D20H20 outdoor-rated dome housing of this camera is designed to withstand harsh weather conditions. This makes it suitable for both indoor and outdoor use. It is also suitable for wall or ceiling mounting. This allows you the flexibility to install it wherever you require it. With its sleek and durable design, this camera provides top-notch performance. It adds a touch of modernity to your surveillance system.
In conclusion, the Eyemax NPT-D20H20 is a high-quality outdoor IP network PTZ camera. It offers 2-megapixel resolution, 20× optical zoom, PoE+ support, and a durable design. With its advanced features and powerful capabilities, this camera is the perfect choice for anyone looking for high-definition surveillance in both residential and commercial settings.
So why wait? Upgrade your surveillance system today with the Eyemax NPT-D20H20. You will enjoy peace of mind knowing that your property is under constant and reliable protection.
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixel | 2230K pixels |
| Min. Illumination | Color: 0.05 lux (F1.6, 1/30 sec, 50 IRE, AGC On) B/W: 0.01 lux (F1.6, 1/30 sec, 50 IRE, AGC On) |
| White Balance | Auto or Manual, ATW/Indoor/Outdoor/Daylight Lamp/Sodium Lamp |
| AGC | Auto or Manual |
| S/N Ratio | ≥ 52dB |
| 3D DNR | Support |
| BLC | Support |
| HLC | Support |
| DWDR | Support |
| Defog | Support |
| Shutter Time | 1 ~ 1/10,000s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16X |
| Privacy Mask | 2 privacy masks programmable |
| Focus Mode | Auto, Semiautomatic, or Manual |
| Lens | |
| Focal Length | 4.7 ~ 94 mm, 20x |
| Zoom Speed | Approx. 3s optical wide-tele |
| Angle of View | 58.3 ~ 3.2 degrees (wide-tele) |
| Min. Working Distance. | 10 ~ 1000 mm (wide-tele) |
| Aperture Range | F1.6-F3.5 |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan Manual Speed: 0.1° ~ 250°/s, Pan Preset Speed: 300°/s |
| Tilt Range | −5° ~ 90° (Auto Flip) |
| Tilt Speed | Tilt Manual Speed: 0.1° ~ 150°/s, Tilt Preset Speed: 200°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Park action | Pattern scan/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan |
| Power-off Memory | Support |
| PTZ Position Display | On or Off |
| Preset Freezing | Support |
| Scheduled Task | Auto scan / Frame scan / Random scan / Patrol / Pattern / Preset / Panorama scan / Tilt scan / Dome reboot / Dome adjust / Aux output |
| Input/Output | |
| Alarm Input | 2 (0 ~ 5V DC) |
| Alarm Output | 1 relay output, alarm response actions configurable |
| Alarm Trigger | Intrusion detection, line crossing detection, motion detection, audio exception detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception |
| Alarm Actions | Preset, Patrol, Pattern, Recording, Relay output, Upload center, Upload FTP, Email linkage |
| Audio Input | 1 audio input (Mic/Line in), 2 ~ 2.4V[p-p]; output impedance: 1KΩ, ±10% |
| Audio Output | 1 output, line level, impedance: 600Ω |
| Network | |
| Ethernet | 10Base-T / 100Base-TX, RJ45 connector |
| Max. Image Resolution | 1920 × 1080 |
| Frame Rate | 50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720) 60 Hz: 30 fps (1920 × 1080), 30 fps (1280 × 960), 30 fps (1280 × 720) |
| Image Compression | H.264/MJPEG |
| ROI encoding | Support 2 areas with adjustable levels |
| Audio Compression | G.711/G.722/G.726/MP2L2 |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Number of Simultaneous Live View | Up to 20 |
| Dual Streams | Support |
| Mini SD Memory Card | Micro SD slot, up to 128GB, edge recording |
| User/Host Level | Up to 32 users, 3 levels: administrator, operator, and User |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address) |
| System Integration | |
| Interface for application programming | Open-ended API, support for ONVIF, PSIA and CGI Support EZVIZ cloud P2P |
| Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ |
| Power | 24 VAC/PoE+ Max. 22W (Heater On) Max. 14W (Heater Off) |
| Working Temperature and Humidity | -22°F ~ 149°F / 90% or less |
| Protection Level | IP66 standard / TVS 4,000V lightning protection, surge protection, and voltage transient protection |
| Impact Protection | IEC60068 ~ 275Eh, 20J; EN50102, up to IK10 |
| Dimensions | Φ 8.66 inches (22 cm) × 12.02 inches (30.53 cm) |
| Weight (approx.) | 6.61 lbs |
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 10 × 10 × 14 in |
