NPT-IR-E4004-S3A
Original price was: $376.99.$208.95Current price is: $208.95.
Eyemax NPT-IR-E4004-S3A 4MP 4× Starlight IR WizSense IP PTZ
- 1/2.8-in. 4 MP STARVIS™ CMOS Sensor
- 4x Optical Zoom
- Starlight Technology for Low Light Sensitivity
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codecs
- 4 MP at 30 fps Maximum Resolution
- True Wide Dynamic Range (120 dB)
- Analytics+ Function—Perimeter Protection, People Counting, Smart Motion Detection, and Face Detection
- Maximum IR Distance: 49 ft (14.94 m)
- IP66 Ingress Protection
- IK08 Vandal Resistance
SKU: NPT-IR-E4004-S3A
Categories: Network IP Cameras, PTZ Network IP Cameras
Tags: 1/2.8" Sensor, 2D / 3D DNR ( Digital Noise Reduction), 4 Megapixel Lens, AC24V-DC12V Dual Power, BLC Backlight compensation, Dual Power 12VAC or 24VDC, H.265+ H.265 H.264+and H264 video compression, HLC Highlight compensation, ICR Auto Switch, IK8 Vandal Resistance, IP66 Ingress Protection, Mini PTZ Network IP, SMD Plus, STARVIS™ CMOS Sensor, Two-Way Audio- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description

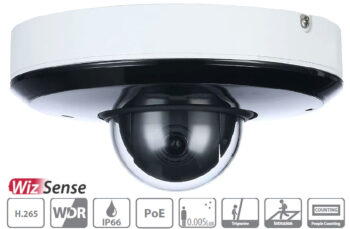

A cutting-edge PTZ (pan tilt zoom) camera made for outdoor surveillance is the Eyemax NPT-IR-E4004-S3A. It features state-of-the-art features and capabilities. This camera has a powerful 4MP 4×4 Starlight IR WIZSENSE IP (Internet Protocol) camera. As a result, it makes it possible to record and take excellent pictures and videos. This makes it an ideal choice for outdoor security needs.
One of the most impressive features of this camera is its AI-powered functions, including face detection and perimeter protection. These powerful features provide enhanced security and minimize false alarms, making it a reliable choice for any surveillance system. With its 1/2.8-inch 4-megapixel STARVIS™ CMOS Starlight technology, the Eyemax NPT-IR-E4004-S3A delivers exceptional image quality, even in low-light conditions.
Featuring a maximum resolution of 4MP (2560 × 1440) at 25/30 frames per second, this camera provides clear and detailed footage. This gives you a clear view of your property at all times.
Additionally, it has a 4× optical zoom, allowing you to capture fine details from a distance. The infrared (IR) distance of up to 50 ft (15.24 m) ensures that your property is under surveillance at all times, even in the dark.
SMD 3.0 (Smart Motion Detection) technology, face detection, people counting, and perimeter protection (intrusion and tripwire) features are all included with the Eyemax NPT-IR-E4004-S3A. Therefore, it is a comprehensive and advanced surveillance system. With its ability to support both Power over Ethernet (PoE) and a 12V DC power supply, this camera is easy to install. It also easily integrates with your current security system.
Along with its remarkable technical capabilities, the Eyemax NPT-IR-E4004-S3A is built to survive challenging outdoor conditions. It has a two-way audio feature, allowing you to communicate with anyone on your property from a remote location. Furthermore, with its IP66 ingress protection and IK08 vandal resistance ratings, this camera is well-equipped to withstand extreme weather conditions and tampering. This makes it a durable and reliable choice for outdoor surveillance.
| Camera | |
|---|---|
| Image Sensor | 1/2.8” STARVIS™ CMOS |
| Pixel | 4MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4GB |
| RAM | 1GB |
| Electronic Shutter Speed | 1 / 1 s ~ 1 / 30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 Lux @ F1.8 B/W: 0.0005 Lux @ F1.8 0 Lux (IR light on) |
| Illumination Distance | 15 m (49.21 ft) |
| Illuminator On/Off Control | Zoom Prio / Manual / Smart IR |
| Illuminator Number | 3 |
| Lens | |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | F1.8–F2.7 |
| Field of View | H: 31.6°–96.9° V: 17.8°–51.4° D: 36.4°–116.2° |
| Optical Zoom | 4x |
| Focus Control | Auto, Semi-Auto, Manual |
| Close Focus Distance | 0.66 ft (20.12 cm)–1.64 ft (49.99 cm) |
| Iris Control | Auto |
| DORI Distance | Detect: 147.0 m (482.28 ft) / Observe: 58.8 m (192.91 ft) / Recognize: 29.4 m (96.46 ft) / Identify: 14.7 m (48.23 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0°–355° Tilt: 5°–90° |
| Manual Control Speed | Pan: 0.1°/s–70°/s Tilt: 0.1°/s–30°/s |
| Preset Speed | Pan: 80°/s Tilt: 40°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Speed Adjustment | Support |
| Power-off Memory | Support |
| Idle Motion | Preset/Tour |
| General Intelligence | |
| Event Trigger | Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, storage anomaly |
| IVS | Object Abandoned/Missing |
| Artificial Intelligence | |
| People Counting | Count people entering and exiting the area (crossing people counting); count people staying in the area (in-area people counting); and display and export reports by day, week, and month. |
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| SMD Plus | Support |
| Face Detection | Support |
| Video | |
| Compression | H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG (Sub Stream); H.265+; H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Main stream: 4M/3M (1–25/30fps), 1080P/1.3M/720P (1–25/30fps) Sub stream 1: D1/CIF (1–25/30fps) Sub stream 2: 720P (1–25/30fps), D1/CIF (1–25/30fps) |
| Bit Rate Control | Variable Bit Rate/Constant Bit Rate |
| Bit Rate | H.264/H.265/MJPEG: 3 kbps–20480 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Support |
| WDR | 120 dB |
| HLC | Support |
| White Balance | Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Streetlamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Electronic Image Stabilization | Support |
| Electronic Defog | Support |
| Digital Zoom | 16x |
| Flip | 0°/180° |
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
| Audio | |
| Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Interoperability | ONVIF Profile S&G&T; CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 |
| Storage | FTP; Micro SD card (256G); P2P |
| Browser | IE, Chrome, Firefox, and Safari (no version restriction) |
| Management Software | SmartPSS DSS |
| Mobile Phone | iOS/Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130 ~ 4 FCC: Part 15 subpart B, ANSI C63.4 ~ 2014 UL62368 ~ 1 + CAN/CSA C22.2, No. 62368 ~ 1 |
| Port | |
| Audio Input | 1. Line in: bare wire or built-in microphone |
| Audio Output | 1 |
| Power | |
| Power Supply | DC12V/1.5A±15% PoE (802.3af) |
| Power Consumption | 3W / 8.5W (IR on) |
| Environment | |
| Operating Temperature | -22°F (-30°C) to 140°F (60°C) |
| Operating Humidity | ≤95% |
| Protection | IK08; IP66; TVS 6000V lightning proof; surge protection |
| Structure | |

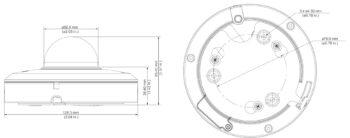

| Dimensions | Φ 5.04 inches (12.8 cm) × 2.57 inches (6.53 cm) |
| Net Weight | 1.06 lb (0.48 kg) |
| Gross Weight | 1.54 lb (0.7 kg) |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 7 × 7 × 4 in |
