NPT-IR-E4225-S1S

Upgrade your security with Eyemax NPT-IR-E4225-S1S, a 4MP PTZ IP camera featuring WIZSENSE AI, 25x optical zoom, and Starlight technology for superior low-light performance. With active deterrence, red and blue warning lights, and a siren, this camera actively deters intruders. It also includes advanced IVS and smart motion detection for accurate alerts. Suitable for outdoor use, it supports PoE+ or 12VDC power and has two-way audio capabilities. Protect your property with Eyemax NPT-IR-E4225-S1S.

NPT-IR-E4225-S1S

Original price was: $1,036.99.Current price is: $717.95.

In stock

Original price was: $1,036.99.Current price is: $717.95.

Eyemax NPT-IR-E4225-S1S 4MP H.265+ IR PTZ Network Camera with 25x Optical Zoom, Starlight, Alarm Light, Siren, PoE+, Speaker

  • 1/2.8″ 4 Megapixel STARVIS™ CMOS.
  • 25x optical zoom.
  • Starlight technology.
  • Max. 25/30fps@4M.
  • IR distance up to 100 m.
  • Auto-tracking 3.0.
  • Perimeter protection.
  • Face detection.
  • SMD 4.0.
  • IP66.

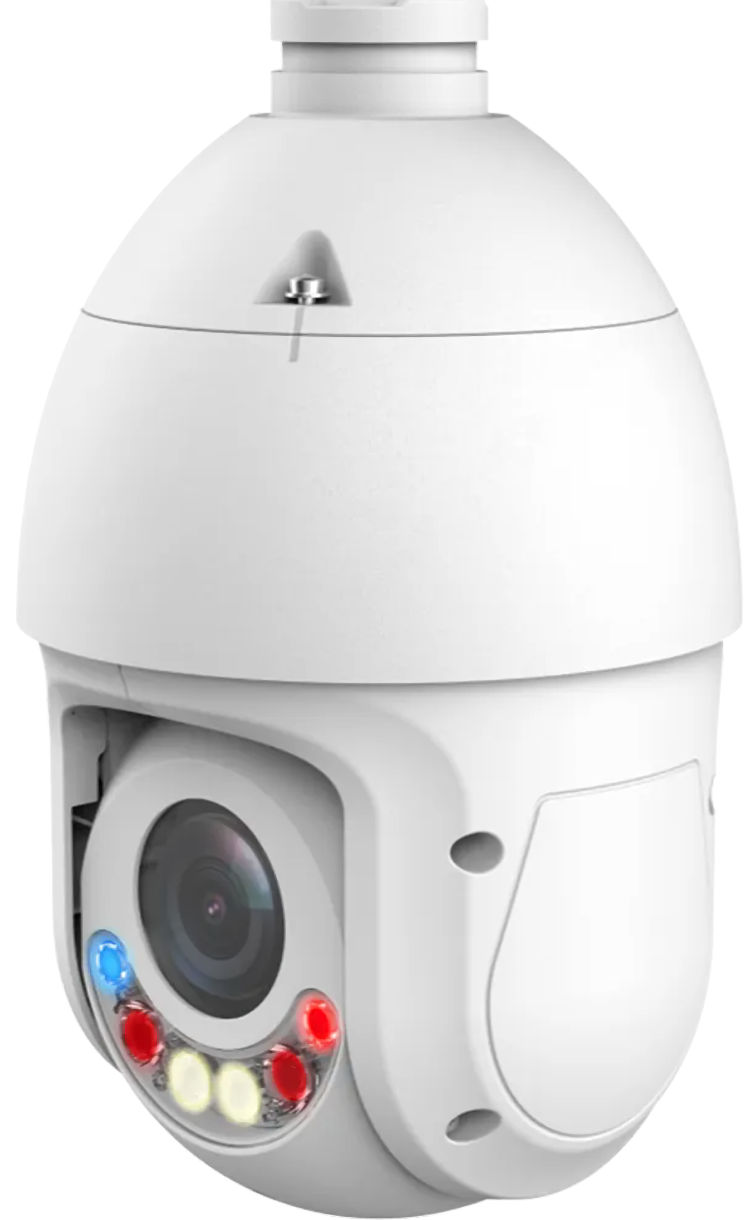

  • Full-color illuminator; red and blue warning light.

Description

Introducing the Eyemax NPT-IR-E4225-S1S, the ultimate powerhouse in surveillance technology. This 4MP PTZ IP camera boasts a staggering 25x optical zoom, providing crystal-clear images even at a distance. Featuring WIZSENSE AI technology, this camera can actively deter potential intruders with its red and blue warning lights and siren. It is the perfect solution for monitoring large outdoor areas such as parking lots, college campuses, and shopping centers.

Equipped with a 1/2.8” 4-megapixel STARVIS™ CMOS image sensor, the Eyemax NPT-IR-E4225-S1S delivers exceptional image quality with a maximum resolution of 2560 × 1440. Moreover, the camera utilizes Starlight technology, ensuring excellent low-light performance for round-the-clock surveillance. With a 25x optical zoom and a 5 mm–125 mm focal length lens, you can zoom in on distant objects. You do so without sacrificing image quality.

For added convenience, this camera features dual illuminators, both infrared and white light, with an impressive IR distance of up to 328 ft (99.97 m). Consequently, this allows for clear visibility even in the darkest of environments.

The Eyemax NPT-IR-E4225-S1S takes active deterrence to the next level with its red and blue warning lights and siren. Once triggered, the camera will automatically track moving objects. In this way, it provides you with peace of mind that your property is being actively monitored.

With advanced IVS (Intelligent Video Surveillance) technology, this camera can accurately differentiate between human and non-human/vehicle movements. This reduces false alarms triggered by animals or lighting changes.

It also supports the detection, tracking, and capturing of face images. Therefore, it is an ideal solution for high-security areas. The Smart Motion Detection feature further enhances the camera’s ability to distinguish between human and vehicle targets. As a result, you get the most accurate and relevant alerts.

Designed to withstand the harshest of outdoor environments, the Eyemax NPT-IR-E4225-S1S has an IP66 ingress protection rating, ensuring its durability and reliability. Moreover, it can withstand extreme temperatures and is suitable for use in any weather condition.

This camera can be powered through PoE+ (Power over Ethernet) or a 12VDC power supply. Thus, installation becomes a breeze. It also includes a built-in speaker for two-way audio. You only need a microphone input for full functionality.

In terms of compression, the Eyemax NPT-IR-E4225-S1S supports G.711a, G.711Mu, G.726, and other codecs. Therefore, it is compatible with most surveillance systems. It also has one audio input and one output channel. This provides you with the opportunity for two-way communication with anyone on-site. As a result, the Eyemax NPT-IR-E4225-S1S is the ultimate choice for those seeking advanced technology and maximum performance in their surveillance systems.

Datasheet

Download

Upgrade your security with Eyemax NPT-IR-E4225-S1S, a 4MP PTZ IP camera featuring WIZSENSE AI, 25x optical zoom, and Starlight technology for superior low-light performance. With active deterrence, red and blue warning lights, and a siren, this camera actively deters intruders. It also includes advanced IVS and smart motion detection for accurate alerts. Suitable for outdoor use, it supports PoE+ or 12VDC power and has two-way audio capabilities. Protect your property with Eyemax NPT-IR-E4225-S1S, Datasheet.

Camera
Image Sensor1,2.8” CMOS
Pixel4 megapixels
Max. Resolution2560 (H) × 1440 (V)
ROM4 GB
RAM1 GB
Electronic Shutter Speed1:1 s–1,30,000 s
Scanning SystemProgressive
Min. IlluminationColor: 0.005 lux@F1.6
B.W.: 0.0005 lux@F1.6
0 lux @ F1.6 (illuminator on)
Illumination Distance100 m (328.08 ft) (IR)
164.04 ft (50 m) white light
Illuminator On, Off ControlZoom Prio, Manual, Auto, Off
Illuminator Number2 (IR), 2 (Dual light fusion)
Lens
Focal Length5 ~ 125 mm
Max. ApertureF1.6–F3.6
Field of ViewH: 51.9°–3.0°,
V: 39.7°–2.2°
D: 63.1°–3.7°
Optical Zoom25×
Focus ControlAuto, semi-auto, manual
Close Focus Distance0.33 ft (10.06 cm)–1.64 ft (49.99 cm)
Iris ControlAuto, manual
DORI DistanceDetect: 8208.10 ft (2.5 km)
Observe: 3239.83 ft (0.99 km)
Recognize: 1640.42 ft (500 m)
Identify: 820.21 ft (250 m)
PTZ
Pan, Tilt RangePan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°
Manual Control SpeedPan: 0.1°/s–200°/s
Tilt: 0.1°/s–120°/s
Preset SpeedPan: 240°/s
Tilt: 200°/s
Preset300
Tour8 (up to 32 presets per tour)
Pattern5
Scan5
Power-off MemoryYes
Idle MotionPattern, Preset, Scan, Tour
Intelligence
IVS (Perimeter Protection)Tripwire, intrusion, crossing fence detection, loitering detection, abandoned, missing object, fast moving, parking detection, people gathering, vehicle, human alarm classification, linkage tracking
Face DetectionSupports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache, and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy, and confused. Face cutout is also offered, where you can cut out one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Auto TrackingYes
SMDYes
Quick PickWith AI NVR, quickly pick up the human, vehicle targets that users are interested in from SMD events.
Active Deterrence
Light WarningRed and blue warning light. They can be configured to flash for 5 to 30 seconds with a high, medium, or low frequency.
Sound WarningOffers 11 types of sound alarms and supports importing custom sound alarms.
Video
Video CompressionH.264H, H.264B, Smart H.265+, H.265, MJPEG (Sub Stream), Smart H.264+, H.264M
Streaming Capability3 streams
Resolution4M (2560 × 1440), 3M (2048 × 1536), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576, 704 × 480), VGA (640 × 480), CIF (352 × 288, 352 × 240)
Video Frame RateMainstream: 4M, 3M, 1080p, 1.3M, 720p @ (1–25, 30 fps)
Substream 1: D1, CIF, VGA @ 1–25, 30 fps; Substream 2: 1080p, 1.3M, 720p @ 1–25,  30 fps
Bit Rate ControlCBR VBR
Video Bit RateH264: 64 kbps–10496 kbps
H265: 25 kbps–6400 kbps
Day, NightAuto (ICR), Color, B/W
BLCYes
WDR120 dB
HLCYes
White BalanceAuto, Indoor, Outdoor, Tracking, Manual, Sodium lamp, Natural light, Streetlamp
Gain ControlAuto Manual
Noise Reduction2D 3D
Motion DetectionYes
Region of Interest (ROI)Yes
Image StabilizationElectronic (EIS)
DefogElectronic
Digital Zoom16×
Image Rotation180°
Privacy MaskingUp to 24 areas can be set, with up to 8 areas in the same view and multiple colors available.
S, N Ratio≥ 55 dB
Audio
Audio CompressionPCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723
Network
Network PortRJ-45 (10,100 Base-T)
Network ProtocolFTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP, IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, QoS, RTSP, ARP
InteroperabilityCGI, SDK, ONVIF (Profile S & G & T), P2P
Streaming MethodUnicast, Multicast
User, Host20 (total bandwidth: 64 M)
StorageMicro SD card (512 GB), FTP, SFTP, NAS
BrowserIE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions
Management SoftwareDSS Pro
Mobile ClientiOS, Android
Certification
CertificationsCE: EN55032, EN55024, EN50130 ~ 4
FCC: Part 15, subpart B, ANSI C63.4 ~ 2014
Port
Audio Input1 channel
Audio Output1 channel
Alarm LinkageCapture, recording, sending email, preset, pattern, tour, alarm digital input, audio, warning light
Alarm EventMotion tampering detection, audio detection, network disconnection detection, IP conflict detection, memory card state detection, memory space detection
Alarm I/O2-1
Audio I/O1 1
Power
Power Supply12 VDC, 3 A ± 10%, PoE+ (802.3at)
Power ConsumptionBasic: 7.0 W, Max.: 13 W (illuminator +heater +PTZ +speaker)
Environment
Operating Temperature-40 °F (-40 °C) to 149 °F (65 °C)
Operating Humidity≤95%
ProtectionIP66, TVS 6000 V lightning proof, surge protection, voltage transient protection
Structure

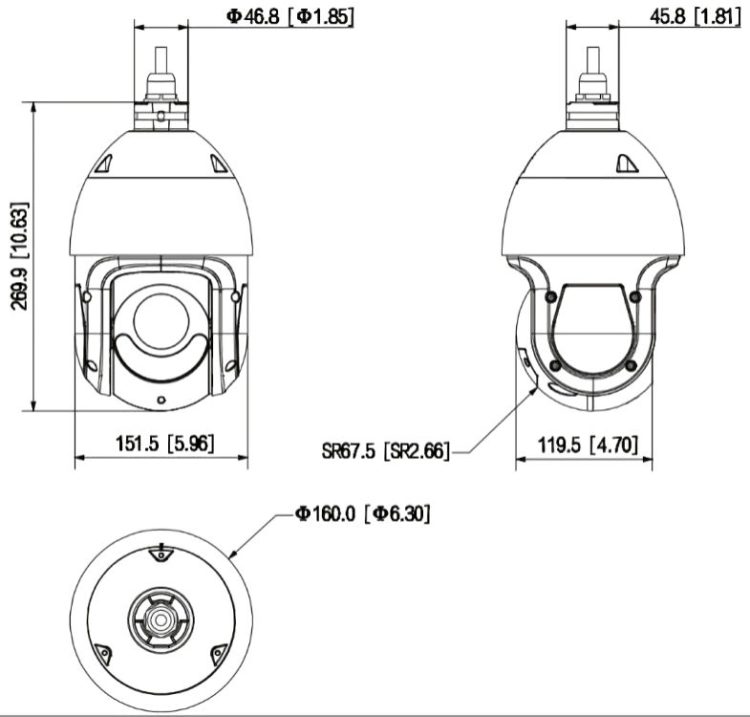

Product Dimensions10.59 inches (26.9 cm) × Φ 6.30 inches (16 cm)
Net Weight5.73 lb (2.6 kg)
Gross Weight8.82 lb (4 kg)
