XNP-C9253

Hanwha XNP-C9253 4K 25x AI PTZ Network Camera. Featuring 8MP, pan/tilt/zoom, and AI analytics for ultimate surveillance.

XNP-C9253

Original price was: $4,860.00.Current price is: $2,922.00.

In stock

Original price was: $4,860.00.Current price is: $2,922.00.

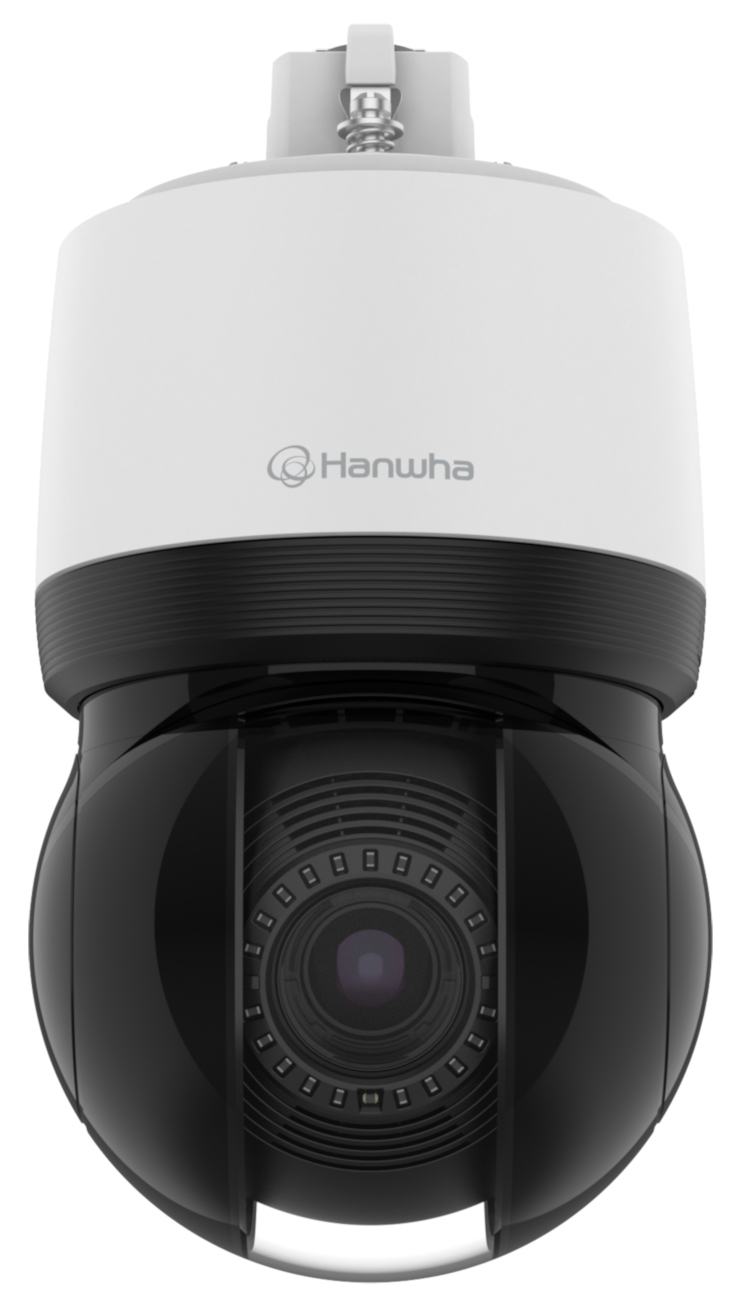

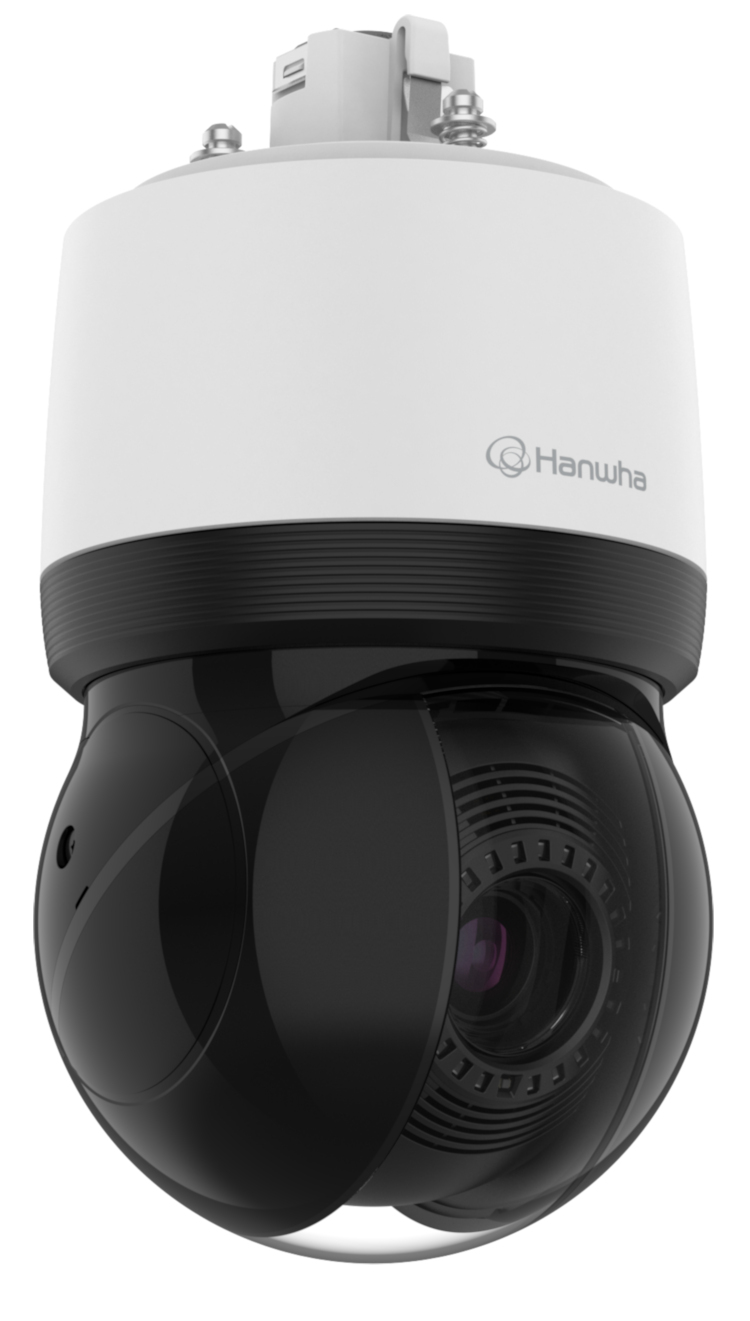

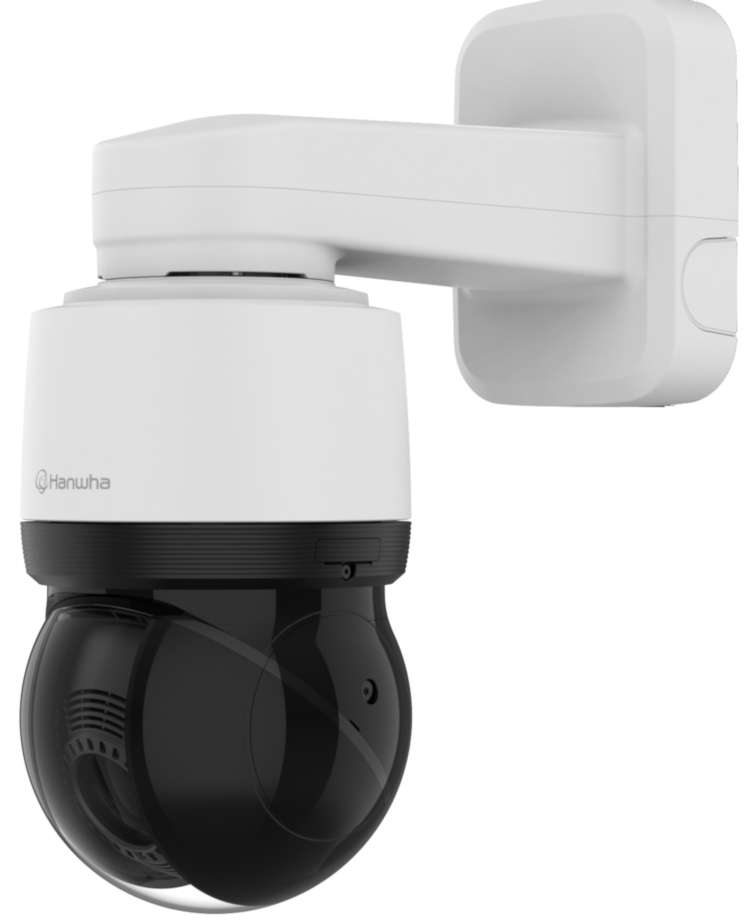

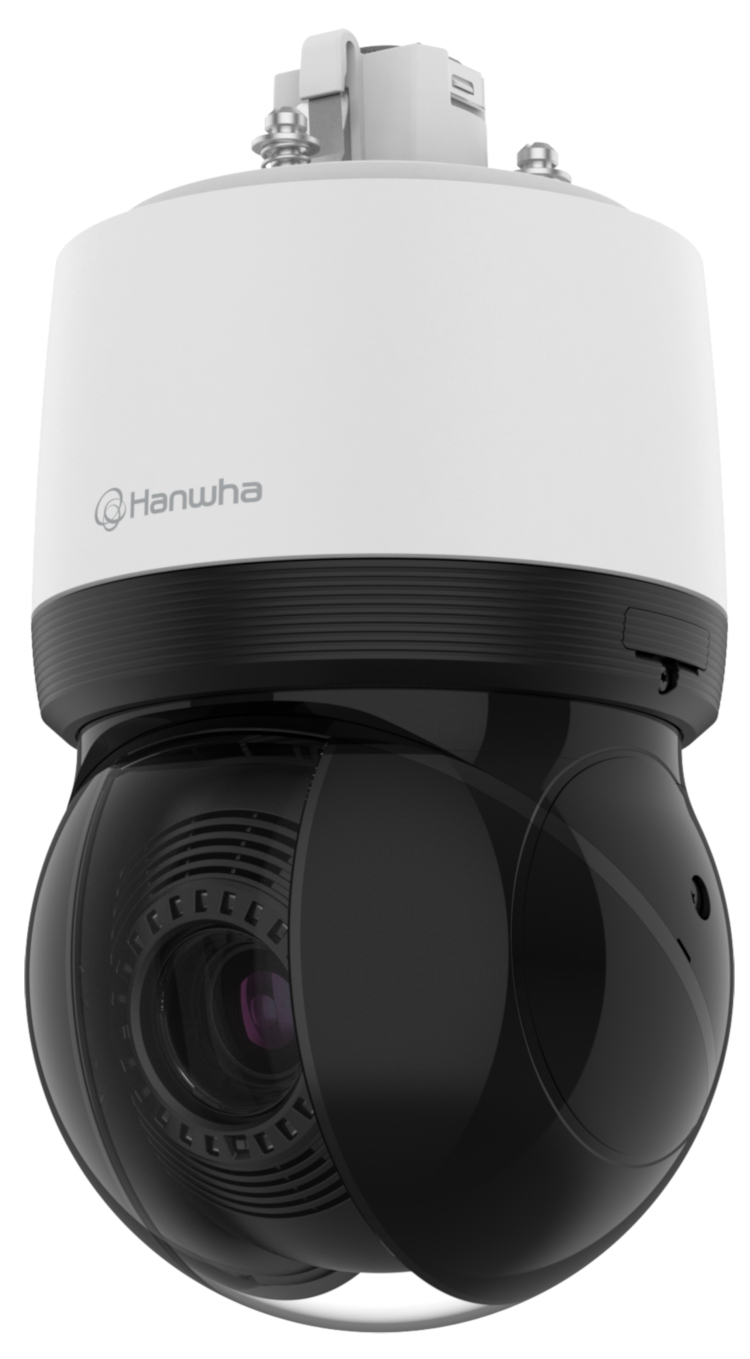

Hanwha XNP-C9253 4K 25x AI PTZ Camera with 5-125mm Lens

  • 4K resolution
  • 25X optical zoom 5mm ~ 125mm
  • -20° tilt look-up capability to see above the horizon
  • Spin dry for water removal
  • 360° endless pan
  • Triple codec H.265/H.264/MJPEG
  • WiseStream III technology
  • Extreme WDR
  • Azimuth display (cardinal and intermediate directions)
  • AI-based object auto-tracking (person, vehicle), target lock tracking, intelligent video analytics
  • Analytics events based on AI engine: object detection (person/face/vehicle/license plate), IVA (virtual line/area, enter/exit, loitering, direction, intrusion), analytics events: Defocus detection, motion detection, tampering, fog detection, audio detection, sound classification (with NW I/O box), object auto-tracking (person/vehicle), target lock track
  • True D/N
  • Dual SD card slots
  • DIS with Built-in Gyro sensor
  • PoE+
  • IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) and 2.2.9 (Shock)
  • Optional SPM-4210 Network I/O box for alarm and audio I/O
  • TPM 2.0 with FIPS 140-2 level 2
Hanwha Vision security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

Hanwha XNP-C9253 4K 25x AI PTZ Network Camera, the perfect solution for all your surveillance needs. This camera helps keep an eye on your home and office safely. With an 8-megapixel camera, this camera offers high-quality images and videos, allowing you to capture every detail with crystal clear clarity.

One of the standout features of this camera is its wide coverage, made possible by its pan, tilt, and zoom capabilities. This enables you to monitor a larger area without compromising on image quality.

The camera also has advanced analytics capabilities based on an AI engine, allowing it to automatically detect and track objects in its field of view. Features like BLC, HLC, and SSDR help improve the overall quality of the captured images.

The Hanwha XNP-C9253 can handle tough conditions. It has a lens heater that prevents water and snow buildup, ensuring clear images even in extreme weather. With an IP66 rating, this camera is also water and dust resistant, making it suitable for outdoor use.

It is extremely resistant to vandalism and tampering because of the IK10 rating of the camera. It also has a NEMA4X rating, making it ideal for use in industrial and marine environments. What’s more, the camera is FIPS 140-2 compliant, ensuring that all the data captured is secure and encrypted.

This camera is superb and simple to use. A single Ethernet cable is sufficient to power the camera, eliminating the need for additional power cables. The camera also supports multi-streaming, allowing you to stream and record videos in different formats simultaneously.

With features such as object auto-tracking and target lock tracking, the camera intelligently follows and monitors moving objects, making it ideal for both indoor and outdoor surveillance.

Datasheet

Download

Hanwha XNP-C9253 4K 25x AI PTZ Network Camera. Featuring 8MP, pan/tilt/zoom, and AI analytics for ultimate surveillance Datasheet.

User's Manual

Download

Hanwha XNP-C9253 4K 25x AI PTZ Network Camera. Featuring 8MP, pan/tilt/zoom, and AI analytics for ultimate surveillance User's Manual.

Quick Guide

Download

Hanwha XNP-C9253 4K 25x AI PTZ Network Camera. Featuring 8MP, pan/tilt/zoom, and AI analytics for ultimate surveillance Quick Guide.

Online Help

Download

Hanwha XNP-C9253 4K 25x AI PTZ Network Camera. Featuring 8MP, pan/tilt/zoom, and AI analytics for ultimate surveillance Online Help.

Video
Imaging Device1/2.8” CMOS
Resolution3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Frame rate.H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@8MP Max. 5fps)
Min. IlluminationColor: 0.1Lux(F1.6, 1/30sec) BW: 0.01Lux(F1.6, 1/30sec)
Lens
Focal Length (Zoom Ratio)5~125mm(25x) zoom (digital 32x, total 800x zoom)
Max. Aperture Ratio.F1.6(Wide)~F3.73(Tele)
Angular Field of ViewH: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele)
Min. Object Distance.16.4ft (5 m)
Focus ControlOne shot AF, Focus save
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan Range360° Endless
Pan SpeedMax. 700°/sec, Manual: 0.024°/sec~250°/sec
Tilt Range110°(-20°~90°)
Tilt SpeedMax. 500°/sec, Manual: 0.024°/sec~250°/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset AccuracyUp to ±0.1°, Pan/Tilt correction
Operational
Camera TitleDisplayed up to 85 characters
Direction IndicatorSupport
Day & NightAuto(ICR)/Color/BW/Schedule
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic RangeExtreme WDR(120dB)
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport (built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, Quadrangle Support
– Color: Grey/Green/Red/Blue/Black/White
– Mosaic
Gain ControlManual / Max
White BalanceATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror
AnalyticsClassified object type : Person/Face/Vehicle/License plate Attributes : Vehicle (Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot
Analytics events based on AI engine
– Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit) Analytics events
– Defocus detection, Motion detection, Tampering, Fog detection, Shock detection, Virtual area (Appear/Disappear)
* Audio detection, Sound classification (with NW I/O Box)
Alarm TriggersAnalytics, Network disconnect
* Alarm input (with NW I/O Box)
Alarm EventsFile upload via FTP and e-mail Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset
Handover
* Alarm output (with NW I/O Box)
Water RemovalSupport (Spinning dry)
Auto-TrackingObject auto-tracking (Person/Vehicle), Target lock tracking
Network
EthernetMetal shielded RJ-45 (10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual(5ea area), WiseStreamⅡ
Video Quality AdjustmentH.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast (20 users) / Multicast (128 users) Multiple streaming (Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP, MQTT
Application Programming InterfaceONVIF Profile S/G/T
SUNAPI (HTTP API)
Wisenet open platform
Security
OS / Firmware ProtectSecure boot, Signed firmware, Firmware encryption
User authenticationDigest Authentication, Prevent brute-force attack
Network authentication802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure CommunicationHTTPS, SRTP, WSS (Web socket secure)
Access ControlIP address filtering
Data ProtectAuthentication information encryption, ZIP compression encryption
AuditUser Access/System/Event log
Device IDDevice Certificate(Hanwha Techwin Root CA, pre-installed)
Secure StorageTPM 2.0 with FIPS 140-2 level2
Security CertificateSecure by default
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge StorageMicro SD/SDHC/SDXC 2slot 1TB
Memory4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity-40 °F (-40 °C) ~ 131 °F (55 °C)) /
165 °F (73.89 °C) (MAX) based on NEMA-TS 2(2.2.7)
* Start up should be done at above -22 °F (-30 °C) 0~95% RH(Non-condensing)
Storage Temperature / Humidity(-58°F ~ +140°F) / 0~90% RH
CertificationIP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
Input VoltagePoE+(IEEE802.3at, Class4)
Power ConsumptionTypical 24W, Max 25.5W
Mechanical
Color / MaterialBody : White / Aluminum Head : Black / Polycarbonate Hard-coated dome
RAL CodeWhite: RAL9003 / Black: RAL9005
Product Dimensionsø 6.22 inches (15.8 cm) x 11.55 inch (29.34 cm)
Weight7.05lb (3,197.83 g)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 460.0ft (140.21 m) / Tele: 10652.4ft (3,246.85 m)
Observe (63PPM/ 19PPF)Wide: 184.0ft (56.08 m) / Tele: 4261.0ft (1,298.75 m))
Recognize (125PPM/ 38PPF)Wide: 92.0ft (0.03 km) / Tele: 2130.5ft (649.38 m)
Identify (250PPM/ 76PPF)Wide: 46.0ft (14.02 m) / Tele: 1065.2ft (324.67 m)
