XRN-3210B2
Price range: $2,003.95 through $3,884.95
Hanwha Vision XRN-3210B2 32-Channel 32MP NVR with no hard drive up to 80 TB
- Up to 32 channels, supports up to 32 megapixel camera resolution
- 400 Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 8 internal HDDs
- Plugin-free web UI
- ARB & failover (N+1), dynamic event, Wisenet AI metadata search support
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
Introducing the Hanwha Vision XRN-3210B2, the ultimate 8K NVR (Intel-based) that is perfect for any surveillance needs. Your footage can be stored in high-quality formats with this NVR’s 32 channels and support for H.264, H.265, or M JPEG.
Contrary to conventional NVRs, the XRN-3210B2 has eight fixed internal SATA HDDs with a 10 TB maximum storage capacity each. This gives you 80 TB of storage space, which is sufficient to hold all of your valuable video.
What sets the Hanwha Vision XRN-3210B2 apart from other NVRs is its ARB (Automatic Recovery Backup) feature. This innovative technology guarantees that your footage is always safe, even in the unlikely event of an HDD failure.
The ARB automatically switches to a backup HDD, ensuring uninterrupted recording and preventing any loss of footage. With its 400 Mbps recording speed and 32 Mbps playback speed, it can easily handle large amounts of data.
The Hanwha Vision XRN-3210B2 also features Dual-stream recording, allowing you to record in both high definition and standard definition simultaneously. This saves storage space and ensures that you have multiple versions of the same footage for different purposes.
Furthermore, the NVR has WiseStream technology, which uses advanced compression algorithms to make your recording files smaller without losing quality. This means you can store more footage in the same amount of space without sacrificing on image clarity.
You have more viewing options with the Hanwha Vision XRN-3210B2 because it supports both HDMI and VGA dual displays. It also enables you to record and view videos at a maximum resolution of 32 MP so you can see your footage in sharp detail.
Another NVR feature is fisheye dewarping, which allows you to see fisheye camera footage more naturally and flatly on the web and CMS. The web UI 2.0 is easy to use and doesn’t require any plugins. The Wisenet AI cameras make it easy to find the video you need by scanning a QR code or clicking on something on the screen.
| Display | ||
| Network camera | Inputs | Max. 32CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUN API, ONVIF | |
| Decoding | Local Display | [Dual Display] HDMI 1: 3840 × 2160 (30 Hz) HDMI 2: 1920×1080 (60 Hz) |
| Multi-Screen Display | [Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ 25/ 36/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | 32M (15 fps, H.265 only), 12M (30 fps, H.265 only), 8.3M (120 fps), 1080p (480 fps), 720P (960 fps), D1 (960 fps) | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, M JPEG |
| Recording Bandwidth | Max. 400Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Refocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 80CH (Local 32CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time (Calendar), Event List, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward/Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 8ea (Max. 80TB) | |
| External | iSCSI storage | |
| Backup | File backup | BU/EXE(GUI), JPG/AVI (Network) |
| Function | Multichannel (Up to 16 CH) play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, ICMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile-S), SUN API (Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | Input/Output | 32 CH (network) |
| Compression | G.711, G.726, AAC (16/48 kHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Uncast (10), Multicast (20) | |
| Security | IP address filtering, user access log, 802.1x, encryption | |
| Device certificate (Hanwha Tech win Root CA), signed firmware | ||
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Web viewer, Smart Viewer, Wisenet Mobile Support SDK/CGI (SUN API) for integration to 3rd party VMS | |
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, add profile edit, bitrate, compression, GOP, quality, and camera MD setup (4, 8 point polygon) | |
| Camera video setup (simple focus, brightness/contrast, flip/mirror, IRIS, WDR, D&N, SSNR, shutter, SSDR, DIS), fisheye dewarping mode, hallway view setup, camera webpage | ||
| PTZ | Control | Via GUI, Web viewer, SPC-2000 |
| Preset | 300 Presets | |
| Smartphone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUN API) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users. | Search(3), Live Uncast (10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |

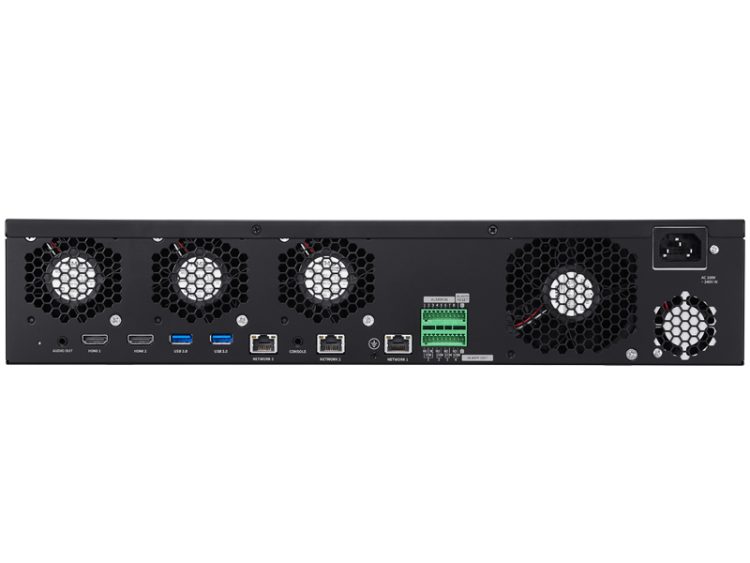

| Interface | ||
| Front | Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | OK | |
| Reset | OK | |
| HDD Key Lock | OK | |
| HDMI | 2EA (Playback/Setup → HDMI1) HDMI1 : 3840×2160 30Hz HDMI2 : 1920×1080 60Hz | |
| Audio | Out 1EA | |
| Ethernet | RJ-45 3EA (LAN/WAN, Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA (Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | Log List | Max. 100,000 (system log, Event Log each) |
| System Control | Mouse, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 32°F (0 °C) to 104°F (40 °C) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A (Single SMPS) | |
| Power Consumption | Max. 138W (with 10TB HDD 8EA) | |
| Mechanical | ||
| Color / Material | Black / Metal | |

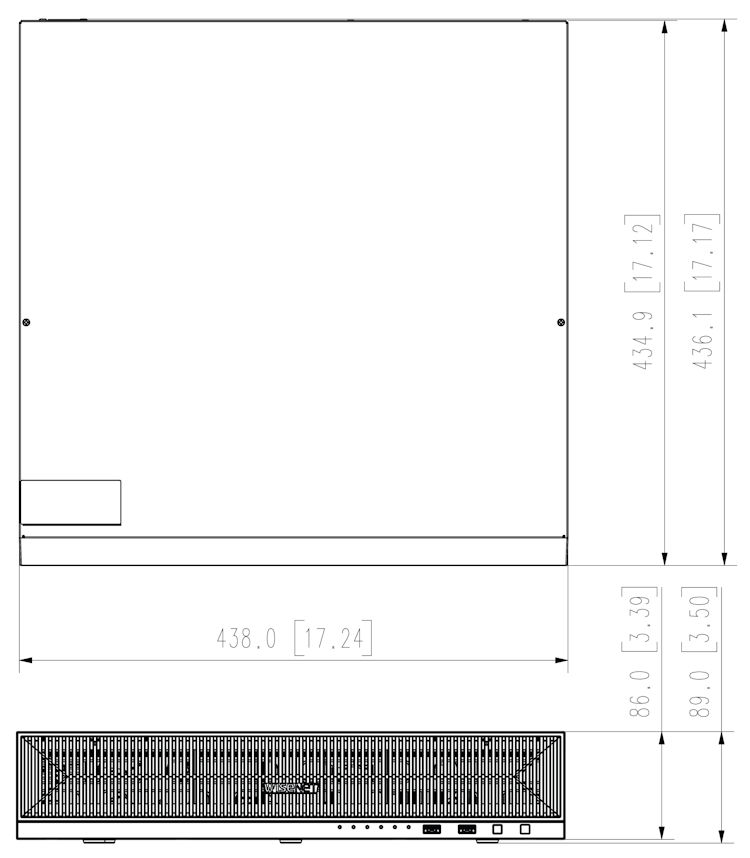

| Dimension (W x H x D) | 17.24 inches (43.79 cm) x 3.39 inches (8.61 cm) x 17.12 inches (43.48 cm) | |
| Weight | 16.5 lb (7.48 kg), except HDD | |
| Intelligent Analysis | ||
| AI Search | Object Attribute | Compatible with Wisenet AI Camera |
Additional information
| Weight | 18 lbs |
|---|---|
| Dimensions | 19 × 19 × 5 in |
| Hard Drive | No Hard Drive, 12 TB Hard Drive, 16 TB Hard Drive, 24 TB Hard Drive, 32 TB Hard Drive, 48 TB Hard Drive, 64 TB Hard Drive |
