Enhance your surveillance system with the Vivotek AI-109 IR Illuminator. With a powerful 48W output and advanced features, it's the perfect addition for long-range night vision. Compatible with multiple enclosures for seamless integration. Shop now!

AI-109

0 out of 5

( There are no reviews yet. )

Original price was: $465.39.Current price is: $299.95.

VIVOTEK AI-109 Illuminator, SNAP 850NM IR LED, 48W, 10~30V, 120-200°

Supports AE-23A, AE-23B, AE-23C, AE-23D, AE-23E, AE-23F
10° ~ 30° Beam Angle
492.13 ft (150 m) ~ 1,148.29 ft (350 m) Distance
850nm
48W Power Consumption
18 pcs LED LEDs Array
Trigger by Light Sensor Digital Output
Light Sensor Sensitivity 100 Lux (Adjustable via RS-485 control)
ITB Touch Board Connector

VIVOTEK intelligent video surveillance products are available at Collsam Security

SKU: A1 EAN: 4712123677590 Categories: Accessories, Camera Mounts and Brackets, IR Illuminator Tags: IR Illuminator, NDAA Compliant;

Description

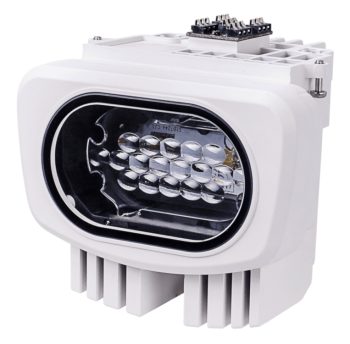

Introducing the Vivotek AI-109 Snap-in IR Illuminator, the perfect infrared lighting solution for your surveillance needs. This powerful illuminator can work with Vivotek cameras.

The Vivotek AI-109 has an 18-LED array that lights up every inch of your surveillance area. The 850nm wavelength of this light source makes it easy to capture sharp and clear images in dim lighting.

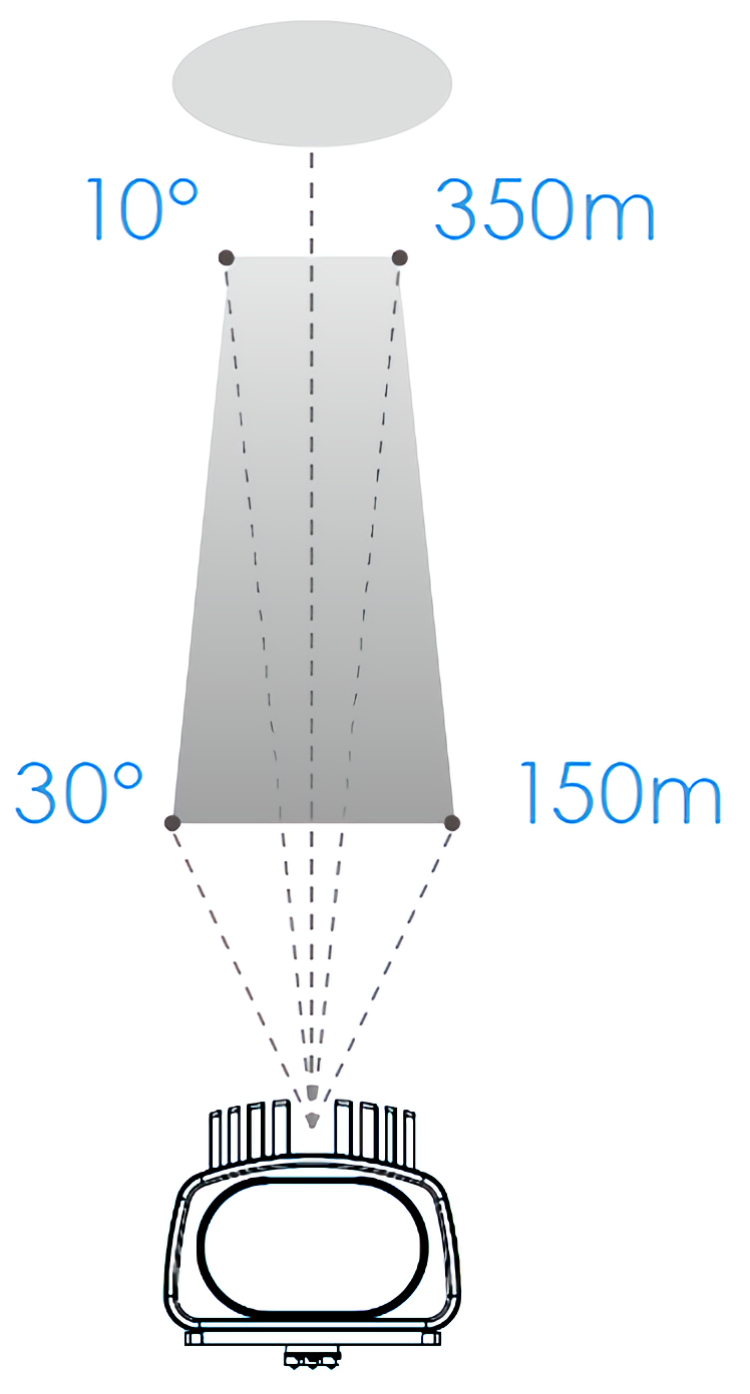

This versatile illuminator offers a 10 to 30° horizontal beam angle, providing comprehensive coverage in an elliptical beam pattern. The DIP switch or RS-485 control lets you adjust the beam angle to suit your particular surveillance requirements. The Vivotek AI-109 comes with IR on/off control, so you can control the IR illumination and save energy.

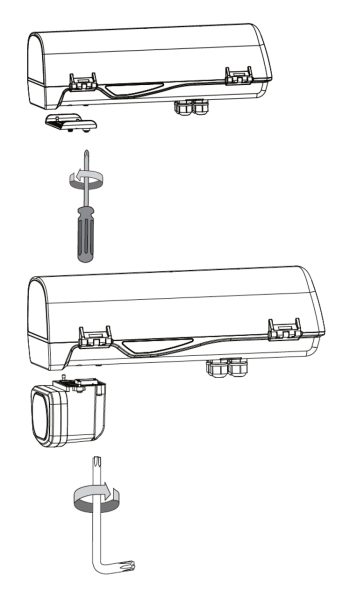

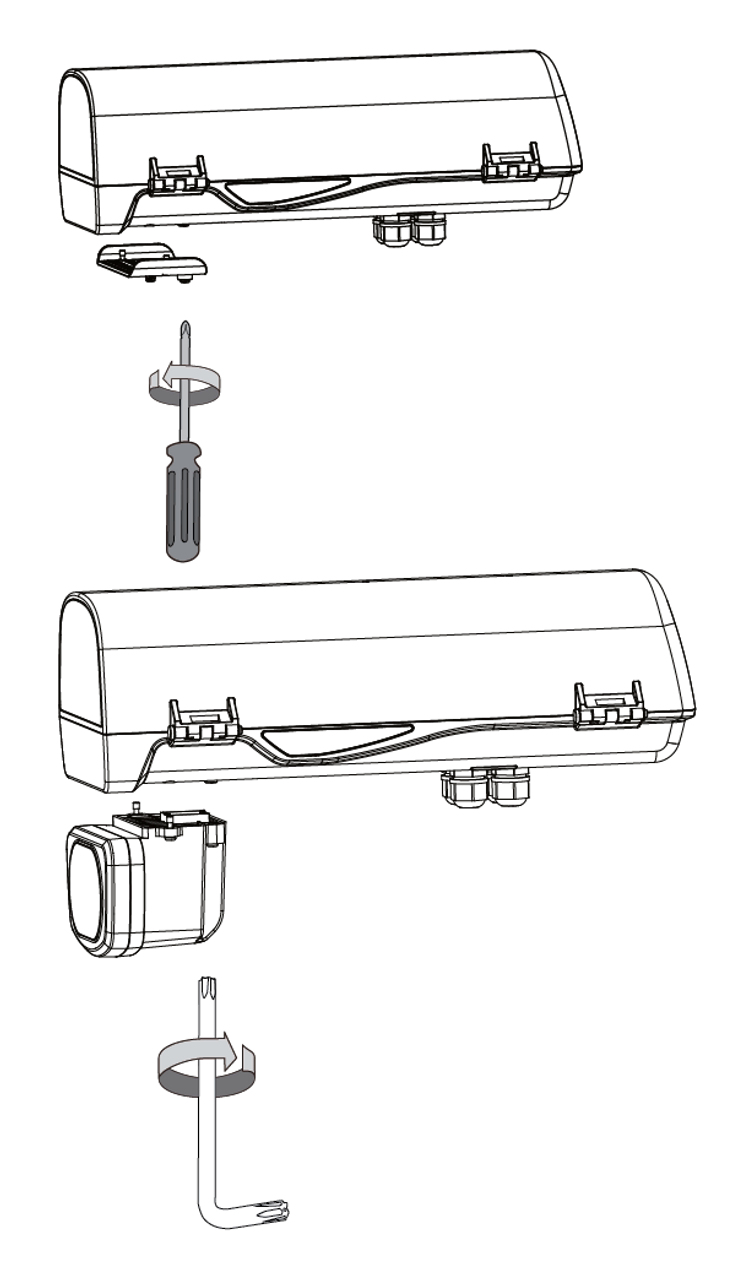

Your surveillance area remains well-illuminated at all times when surrounding light levels drop below the set threshold. You can change how sensitive the light sensor is by using RS-485. With the ITB touch board connector, installation and setup of the Vivotek Illuminator is easy.

The Vivotek AI-109 Snap-in IR Illuminator is a powerful and versatile lighting device that works well with Vivotek enclosures. It provides superior infrared illumination and adjusts the beam angle. This light will help your Vivotek cameras see well inside and outside. It’s a must-have for your security system.

Datasheet

Download

Enhance your surveillance system with the Vivotek AI-109 IR Illuminator. With a powerful 48W output and advanced features, it's the perfect addition for long-range night vision. Compatible with multiple enclosures for seamless integration. Shop now Datasheet!

Compatibility	Supported Enclosures: AE-23A, AE-23B, AE-23C, AE-23D, AE-23E, AE-23F
Beam Angle	Horizontal: 10 to 30°
Distance	492 to 1148′ / 150 to 350 m (Adjustable by DIP Switch or RS-485)
LED Array	18
Wavelength	850 nm
Digital Input	IR On/Off Control
Digital Output	Trigger by Light Sensor
Light Sensor Sensitivity	100 Lux (Adjustable via RS-485 Control)
Power Consumption	48 W
Connector	ITB Touch Board
Operating Temperature	-40 °F (-40 °C) to 122 °F (50 °C)
Storage Temperature	-40 °F (-40 °C) to 158 °F (70 °C)

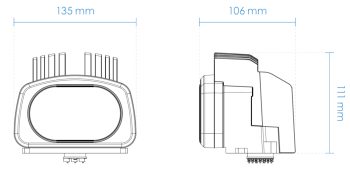

Dimensions	5.3 inches (13.46 cm) x 4.2 inch (10.67 cm) x 4.4 inch (11.18 cm)
Weight	2.6 lb (1.18 kg)

Additional information

Weight	4 lbs
Dimensions	7 × 6 × 6 in
