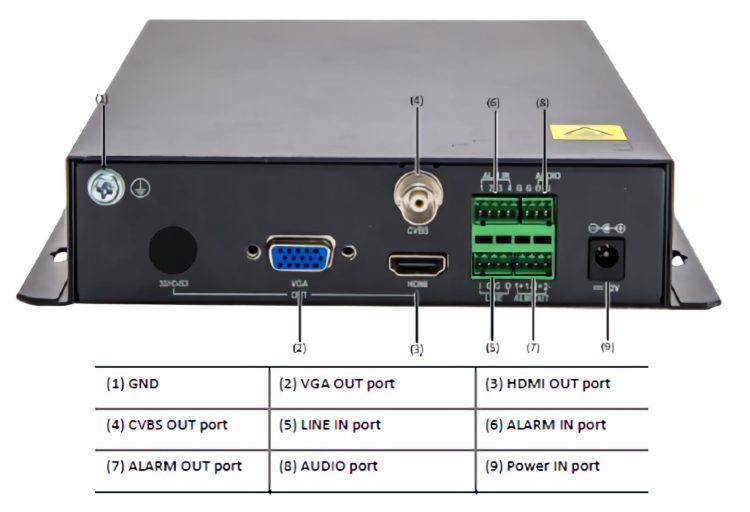

Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16 Rear Panel

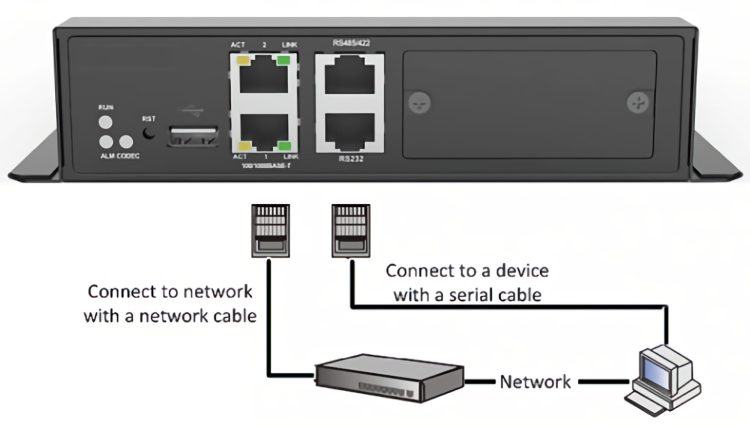

Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16 Implementation

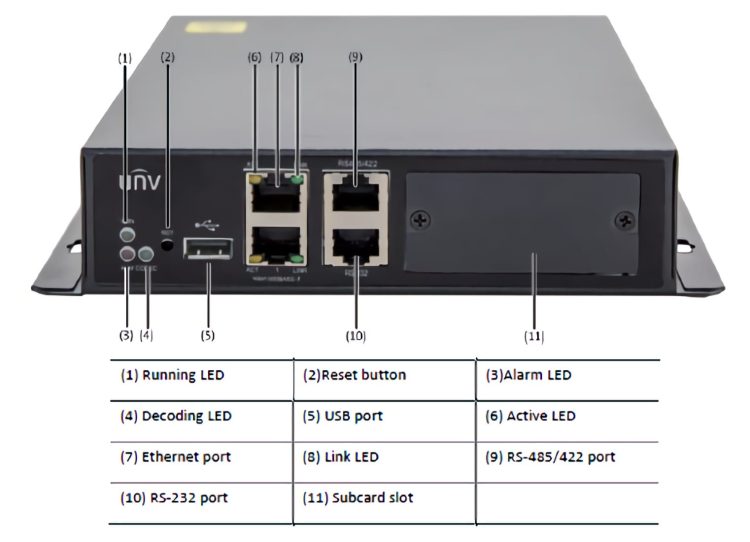

Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16 Front Panel

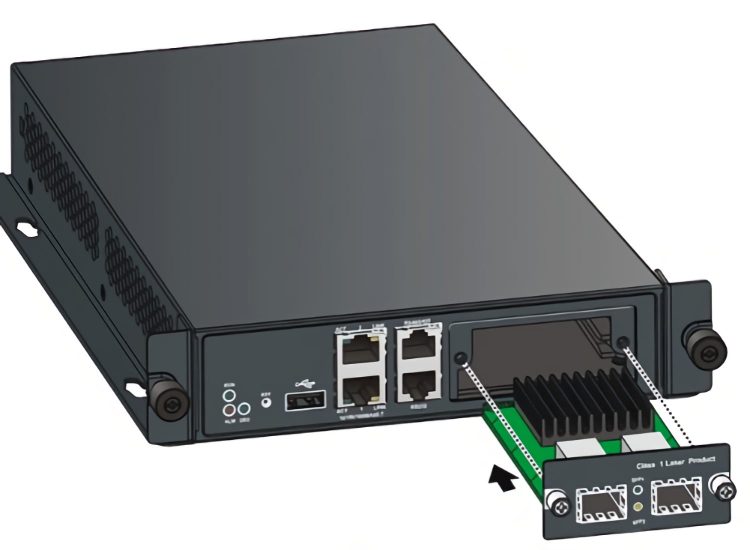

Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16Extra Module
Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16
Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16 Dimensions
Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16 Rear Panel
Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16 Implementation
Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16 Front Panel
Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16Extra Module

DC5301

Uniview DC5301 High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16

DC5301

Original price was: $2,119.00.Current price is: $1,695.20.

In stock
0 out of 5

Original price was: $2,119.00.Current price is: $1,695.20.

Uniview Dc5301 Single Channel HD Video Decoder

  • Outputs: a) 1-Ch HDMI, b) 1-Ch VGA, and c) 1-Ch CVBS
  • Resolution: a) HDMI up to 4k (3840×2160), b) Stream up to 12mp, 8mp, 6mp, 5mp, 4mp, 3mp, 1080p, 960p, 720p, D1, and CIF
  • Codecs: a) H.265, b) H.264, c) MPEG4, d) MPEG2, and e) MJPEG
  • Audio Formats: a) G.711a, and b) G.711μ
  • ONVIF Video Stream Supported 1,2,3,4,7,9, or 16 Display Split
Uniview
SKU: DC5301 Categories: , , Tags: , , , , , , ,

Description

The Uniview DC5301 is a powerful and versatile single channel high-definition video decoder that offers a range of video and audio outputs. With an output of 1-channel HDMI, 1-channel VGA, 1-channel CVBS, and HDMI at up to 4k (3840×2160) resolution, this decoder is the perfect choice for any surveillance professional.

The Uniview DC5301 is capable of decoding video streams at resolutions of 12mp, 8mp, 6mp, 5mp, 4mp, 3mp, 1080p, 960p, 720p, D1, and CIF. It can also decode video streams in H.265, H.264, MPEG4, MPEG2 and MJPEG. Additionally, the decoder supports audio in G.711a, and G.711μ formats. Furthermore, it supports ONVIF video stream for 1,2,3,4,7,9, or16 splits.

The Uniview DC5301 is designed with high-speed processing power and advanced algorithms to ensure dependable performance. It was designed to operate efficiently and can be utilized to immediately verify issues. Additionally, it supports multiple storage and playback solutions, allowing users to capture and replay footage efficiently.

The Uniview DC5301 is also easy to install and use. It is compatible with either a 12V DC power supply or Power over Ethernet. It is also compatible with Uniview’s CMS and mobile apps for easy remote access and management. Furthermore, with its intuitive user interface, users can quickly set up the decoder and manage connected cameras.

Overall, the Uniview DC5301 is a powerful single-channel high-definition video decoder that can provide up to 4k resolution output. It can decode video streams in multiple formats and supports audio in G.711a and G.711μ formats. It is also easy to install and use, and it supports multiple storage and playback solutions. This makes the Uniview DC5301 an ideal choice for any surveillance professional.

Datasheet

Download

Uniview DC5301High-def video decoder with HDMI, VGA, CVBS outputs. Supports up to 4K resolution and H.265, H.264, MPEG4, MPEG2, MJPEG. ONVIF and split display up to 16 Datasheet.

Additional information

Weight5 lbs
Dimensions9 × 12 × 3 in
