SPC-7000

Hanwha Vision SPC-7000 control keyboard. Featuring a 5" touch display and responsive PTZ joystick, it's user-friendly and versatile Top View. Get all your PTZ accessories from Collsam Distribution.

SPC-7000

Original price was: $1,300.00.Current price is: $782.95.

In stock
0 out of 5

Original price was: $1,300.00.Current price is: $782.95.

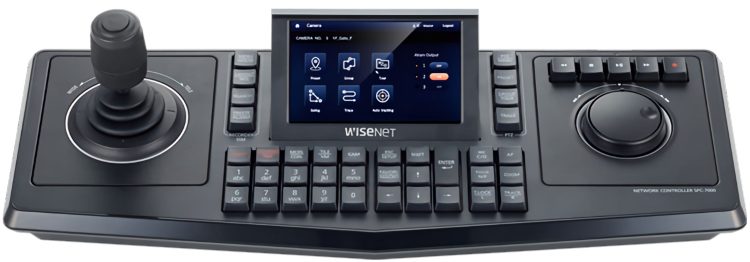

Hanwha SPC-7000 System Control Keyboard with 5″ Touch TFT LCD

  • 5″ TFT touch LCD
  • Network Camera, SSM, Analog Camera, DVR control
  • User-friendly design and easy-to-use keypad
  • 3 Axis joystick to control PTZ function
  • Detachable joystick and jog shuttle for universe use (Switchable Right or Left hand use)
  • USB interface support (1ea for SSM, 1ea for image snapshot and Upgrade)
  • Fast camera-tile mapping, Config import or export
At Hanwha Vision, LogoNDAA plays a crucial role in providing direction on how to utilize military funding. Includes authorizing specific funding levels for defense activities. SKU: SPC-7000 EAN: 8801089130099 Categories: , , Tag:

Description

Introducing the Hanwha Vision SPC-7000, the ultimate IP network system control keyboard for your surveillance needs. This state-of-the-art control keyboard boasts a 5-inch touch display and a highly responsive PTZ joystick, providing you with a seamless and efficient way to manage and control your IP network system. With its user-friendly design and easy-to-use keypad, the SPC-7000 is suitable for both novice and experienced users alike.

The SPC-7000 features a 3-axis joystick that allows you to easily control the PTZ function, making it a breeze to pan, tilt, and zoom your cameras to capture every angle. Additionally, it also offers a detachable joystick or jog shuttle for universal use, providing you with even more flexibility and convenience in controlling your surveillance system. This makes it perfect for various applications, from large-scale installations to smaller, more specific setups.

Not only is the SPC-7000 designed with functionality in mind, but it also delivers on performance. It supports a USB interface, offering seamless compatibility with other devices and making it a breeze to transfer data. It also comes with one USB port for SSM (Samsung Security Manager) and another for image snapshot/upgrade, ensuring that you have all your bases covered when it comes to managing your IP network system.

At Collsam Distribution, we understand the importance of having high-quality and reliable PTZ accessories for your surveillance system. That is why we offer a wide range of Hanwha Vision PTZ accessories, including the SPC-7000, to cater to all your surveillance needs. With our top-notch products and exceptional customer service, we strive to provide you with the best experience possible. So don’t wait any longer, upgrade your surveillance control system with the Hanwha Vision SPC-7000 and our range of PTZ accessories, available at Collsam Distribution.

Datasheet

Download

Hanwha Vision SPC-7000 control keyboard. Featuring a 5" touch display and responsive PTZ joystick, it's a user-friendly and versatile Datasheet. Get all your PTZ accessories from Collsam Distribution.

User's Manual

Download

Hanwha Vision SPC-7000 control keyboard. Featuring a 5" touch display and responsive PTZ joystick, it's a user-friendly and versatile User's Manual. Get all your PTZ accessories from Collsam Distribution.

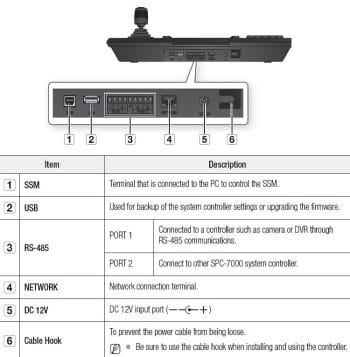

Communication
Control EquipmentNetwork Camera / SSM / Analog Camera / DVR
interfaceRS-485/422 (Analog Camera, DVR) 1ea,
RS-485/422 (Cascade among controllers) 1ea
interface ProtocolEthernetSUNAPI
USBDedicated
RS-485/422SRD, Pelco-D/P, Panasonic, Vicon, AD, Honeywell, Bosch, Elmo, GE, Samsung-T/E
Units to ControlNetwork Camera : Max. 255ea, SSM : 1ea, Analog Camera / DVR : Max. 255ea
Baud Rate (RS-485/422)2400 ~ 57,600bps
Network ProtocolTCP, HTTP, DHCP, IPv4
Irrational Mechanical
LCD5″ TFT LCD
Joystick3 Axis twist zoom
Jog ShuttleSSM / DVR playback control
Control
CameraPan / Tilt / Zoom, Focus, Auto focus, Preset, Group, Tour, Swing, Trace, Auto tracking, Alarm off/on, Freeze
Video WallCamera-tile (Channel) mapping, Layout (Display division mode) change
RecorderRecording / Playback control, Alarm off, Menu
Device ManagementBuilt-in device registration / Modification on LCD
User ManagementAdmin + 9 operators
import / ExportConfiguration import / export
Miscellaneous
Video SnapshotStill image (Network camera) export using USB memory
inputAlphabet input (Virtual keyboard)
LanguageEnglish, Spanish, French, Italian, German, Turkish, Polish, Russian, Korean, Chinese, Japanese
Environmental
operating Temperature32 °F (0 °C)~ 104 °F (40 °C)
operating humidity20 ~ 85%
Electrical
input Voltage12V DC
Power ConsumptionMax. 6.4W
Mechanical
Dimensions (W × H × D)18.07 inches (45.9 cm) x 2.33 inch (5.92 cm) x 7 inch (17.78 cm)
Weight3.3 lb (1.5 kilogram)

Additional information

Weight3 lbs
Dimensions19 × 7 × 3 in
