Description

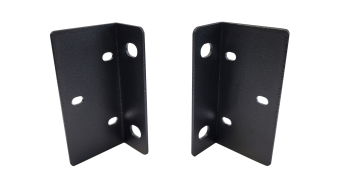

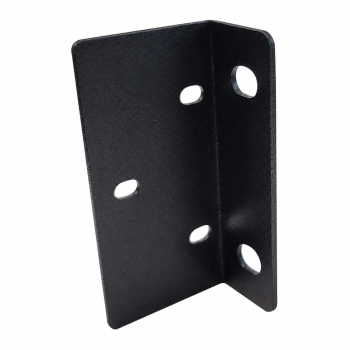

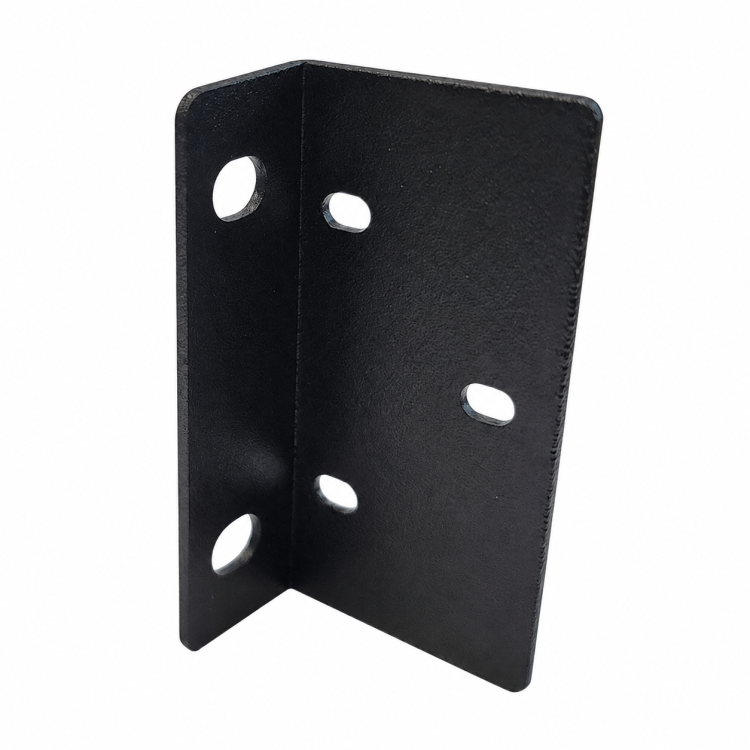

Digital Watchdog DW-VP16RE rack mount ears help secure compatible VMAX IP Plus recorders in a standard 19-inch equipment rack. The fixed aluminum pair attaches to the recorder chassis and creates a clean, organized installation. It supports select third-generation DW-VP12-8P and DW-VP16-16P recorder families. However, installers should confirm the recorder model, serial-number prefix, and generation before ordering.

Each rack ear measures about 2.67 inches (68 mm) high and 1.75 inches (44.45 mm) wide. The official drawing also identifies mounting features measuring 0.35 inch (9 mm), 0.29 inch (7.5 mm), 0.25 inch (6.5 mm), 0.23 inch (6 mm), and 0.49 inch (12.5 mm). Therefore, check the mounting-hole pattern against the recorder chassis before installation.

Exact fit matters because similar rack ears may use different hole locations or chassis shapes. First, inspect the chassis threads and keep the original fasteners when possible. Next, align both ears without forcing the screws. Finally, tighten the hardware evenly after confirming that every hole lines up correctly.

Digital Watchdog discontinued the DW-VP16RE and ended support on June 26, 2024. Collsam keeps this page available so owners can identify the historical accessory, confirm compatibility, and review official product information. The product is not available for purchase, and Digital Watchdog lists no verified direct replacement.

The Specification and Product Documents tabs provide the measured details and official drawing. In addition, these resources help service teams maintain accurate records for legacy VMAX IP Plus systems. Before choosing another mounting kit, contact Digital Watchdog and provide the recorder model, generation, and serial-number prefix. Written confirmation can prevent an incorrect fit and avoid damage to the chassis or mounting hardware.

For best results, compare both rack ears with the official drawing and document the installed recorder before removing or replacing existing hardware. This process supports accurate maintenance records.
