IB-2724-60

0 out of 5

( There are no reviews yet. )

Original price was: $119.99.Current price is: $39.95.

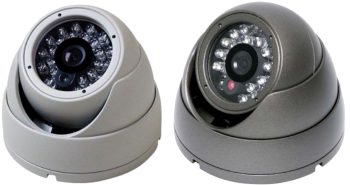

IB-2724-60 EYEBALL 420TVL IR Metal Dome Camera with Fixed Lens

1/3” Sony Super HAD CCD
6.0 mm Fixed Lens
420TV Line in Color
60ft (18.29 m) Infrared Range / 24 IR LED
Auto White Balance (AWB)
Backlight Compensation (BLC)
Auto Gain Control (AGC)
DC 12V / 1500mA Recommended
Weather and Vandal-Resistant Case
IP66 Outdoor
Case color Gray or white
3-Axis Construction
24 IR LED
6.0 mm Fixed Lens
Made in Korea

SKU: IB-2724-60 Categories: Analog Coaxial, Analog Coaxial Cameras Tags: 1/3" Sony Super HAD CCD, 12V DC power, 3-Axis Angle it Anywhere, AWB (Auto White Balance), IP66 Ingress Protection

Color

Description

The Eyemax IB-2724-60 Hi-Res Infrared CCTV Camera is small and powerful. It’s suitable for use both inside and outside. This camera is small and unique. You can easily put it on low ceilings and get a clear picture that other cameras can’t. This makes it ideal for use in various settings, including parking lots, warehouses, bus barns, and gates.

This camera can see up to 60ft (18.29m) in total darkness. Its durable metal case and high-resolution 380/420 TV lines ensure clear and crisp images, even in high-risk and high-security areas. The camera’s 1/3” Sony Color CCD further enhances picture quality and delivers beautiful images.

The Eyemax IB-2724-60 has a 3.6 mm lens that makes setting up and changing the camera angle quick and easy. This is useful when you need to take a specific picture with your camera. The camera features 24 infrared LEDs that are not visible from a distance of 60 feet (18.29 meters). This makes it possible to take clear pictures even in complete darkness.

The Eyemax IB-2724-60 has an aluminum housing to ensure durability and safety when it comes to surveillance cameras. This makes it resistant to vandalism and capable of withstanding harsh weather conditions. The impact-resistant dome makes it an excellent choice for high-risk areas such as prisons, banks, and military installations.

Knowing that there are fake versions of this camera, it’s best to get the real thing from the maker. The Eyemax IB-2724-60 camera has a 3-axis feature, which makes it easy to move and adjust the camera. This feature is especially useful when trying to capture details in the camera’s field of view.

There is a high-quality security camera that is tough and versatile. The compact size and design make it a good choice for different settings. Its powerful infrared capabilities make surveillance easy even in low-light conditions. With its superior quality and advanced features, this camera is a reliable choice for all your security needs.

Datasheet

Download

Eyemax IB-2724-60 CCTV camera. With 24 IR LED and 60ft (18.29 m) night vision, it's perfect for high-risk areas. 3-Axis design for easy installation on low ceilings. Don't settle for imitations, trust the genuine high-resolution Sony CCD imager for crystal clear images. A durable metal case and impact-resistant dome make it ideal for prisons, banks, Available in Gray or White Color Datasheet.

Brochure

Download

Resolution	380 (Color) / 420(B/W) TV Lines Horizontally
Image Pick-up Device	Sony 1/3 inch Super HAD CCD with NEXT process chip
Picture Elements	537(H) × 505(V) 270K pixels
Effective Picture Elements	510(H) × 492(V) 250K pixels
Scanning Area	3.65(H) × 2.74(V) mm
Scanning System	2:1 Interface/ 525 Lines / 60 Fields / 30 Frames
Iris Mode	DC Iris (only with Auto-Iris Lens) ESC (only with Fixed and Manual-Iris Lens)
Lens	6.0mm Fixed Lens
Minimum Illumination	0.3 Lux at F1.2 / 0 Lux (IR On)
Sync. System	Internal Only
Video Output	1.0 Vp-p Comp. 75Ω
Electronic Iris	1/60 sec ~ 1/100,000 sec
Backlight Compensation	Built-in
Gain Control	Built-in
White Balance	AWB
Day & Night	Auto / On
IR LED	24 IR LED up to 60ft (18.29 m)
Gamma	r=0.45
S/N Ratio	50dB (AGC Off, Eight On)
Operating Temp.	14 °F (-10 °C) ~ 122 °F (50 °C)
Power Source	DC 12V
Dimensions	3.7 inches (9.4 cm) (Ø) × 3.0 inch (7.62 cm)(H) / 1.2 lbs / Metal Case

Additional information

Weight	3 lbs
Dimensions	6 × 6 × 6 in
Color	Gray, White
