-55%

UAC-T122-AF28M-W

Uniview UAC-T122-AF28M-W 2MP ColorHunter HD Fixed Turret Analog Security Camera. 24/7 full-color imaging, multi-format compatibility, and advanced features for reliable indoor and outdoor monitoring.

UAC-T122-AF28M-W

Original price was: $119.00.Current price is: $53.95.

In stock

Original price was: $119.00.Current price is: $53.95.

UAC-T122-AF28M-W Uniview 2MP White Light Analog Turret 2.8mm

  • 2MP high-quality imaging
  • TVI/AHD/CVI/CVBS
  • Supports white light illumination, 24/7 color images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
  • Built-in microphone for high-quality audio transmission via coaxial cables
  • Supports digital defog
  • Metal front face and housing
  • 3-Axis

Description

Introducing the Uniview UAC-T122-AF28M-W, a top-of-the-line 2MP ColorHunter HD Fixed Turret Analog Security Camera. It offers high-reliability surveillance capabilities for both indoor and outdoor use. Therefore, this camera is perfect for keeping an eye on your property, day and night. With its advanced features and multi-format compatibility, this camera is a must-have for any security setup.

Designed to provide 24/7 full-color imaging, the Uniview UAC-T122-AF28M-W is equipped with a 2MP resolution. It can capture 1080p videos at up to 30 frames per second. This is all thanks to its powerful 1/2.9” CMOS image sensor, which ensures crystal-clear footage every time. Additionally, the 2.8 mm fixed focal length lens offers an expansive 101.5° horizontal field of view. This gives you comprehensive coverage of your surroundings.

The Uniview UAC-T122-AF28M-W goes above and beyond when it comes to visibility in low-light conditions. With dual white-light spotlights, this camera can illuminate up to 40 meters (131.23 ft) in complete darkness. As a result, it allows for full-color video coverage even in the darkest of areas. This feature is perfect for those who require high-quality footage at all times.

In terms of versatility, this camera stands out from the rest. It supports four switchable analog outputs, including HD-TVI, AHD, HD-CVI, and traditional CVBS. This means that you can use it with a wide range of devices and systems. Therefore, it is a great choice for both personal and commercial use.

It also features a built-in microphone. This allows for high-quality audio to be streamed simultaneously with video over standard coaxial cabling.

Not only does the Uniview UAC-T122-AF28M-W excel in performance, but it also boasts a heavy-duty metal housing. This gives it durability and strength. It has an IP67 weatherproof rating, making it resistant to harsh weather conditions. This also ensures it continues to function in any environment. Additionally, it operates on standard 12V DC power and has a low maximum consumption of 3.12W. As a result, it is energy-efficient and cost-effective.

The Uniview UAC-T122-AF28M-W also features advanced technologies such as built-in 2D/3D digital noise reduction (DNR), digital defog, and digital wide dynamic range (DWDR). These features work together to balance high-contrast lighting. This gives you clear and detailed footage even in challenging lighting conditions. This camera also has a 3-axis mechanical adjustment system. Therefore, it allows for flexible installation on ceilings, walls, poles, or corners.

Setting up and adjusting this camera is simple, thanks to its on-screen display setup configuration. It is accessible in 11 different languages, making it user-friendly for people from all over the world.

Overall, the Uniview UAC-T122-AF28M-W is a reliable, versatile, and top-performing security camera. It will provide you with peace of mind and security for years to come. Don’t wait any longer; upgrade your surveillance system with the Uniview UAC-T122-AF28M-W today.

Datasheet

Download

Uniview UAC-T122-AF28M-W 2MP ColorHunter HD Fixed Turret Analog Security Camera. 24/7 full-color imaging, multi-format compatibility, and advanced features for reliable indoor and outdoor monitoring Datasheet.

Camera
Max Resolution2 MP
Sensor Size1/2.9” CMOS
Min. Illumination0.005 lux (F1.6, AGC ON)
0 lux (white light on)
Lens
Focus2.8 mm
Lens MountM12
Angle of View (H)101.5°
Angle of View (V)56.9°
Angle of View (D)117.4°
Illuminator
Illuminator NumberTwo white-light illuminators
Illumination Distance40m
Lifetime≥ 60000 hours
Video
Resolution1080P: 1920(H)×1080(V)
720P: 1280(H) × 720(V)
Frame RateTVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s-1/50000s,
NTSC: 1/30s-1/50000s
Exposure ModeFour modes: Global (default), BLC, HLC, and DWDR
Day/Night24/7 color images
Digital Noise Reduction2D/3D
White BalanceTwo modes: Auto (default), Manual
WDRDWDR
FlipSupports 180° horizontal flip, 180° vertical flip
Digital DefogSupport
Audio
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps
Interface
Power Interface5.5 mm Power Interface
Video OutputBNC supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature-22 ℉ to 140 ℉
Humidity≤ 95% RH (non-condensing)
Surge Protection4 KV for power, 4 KV for video output interfaces
Ingress ProtectionIP67
General
PowerDC 12 V ± 25%
Power ConsumptionMAX 3.12W
MountWall Mount, Pole Mount, Corner Mount, Pendant Mount

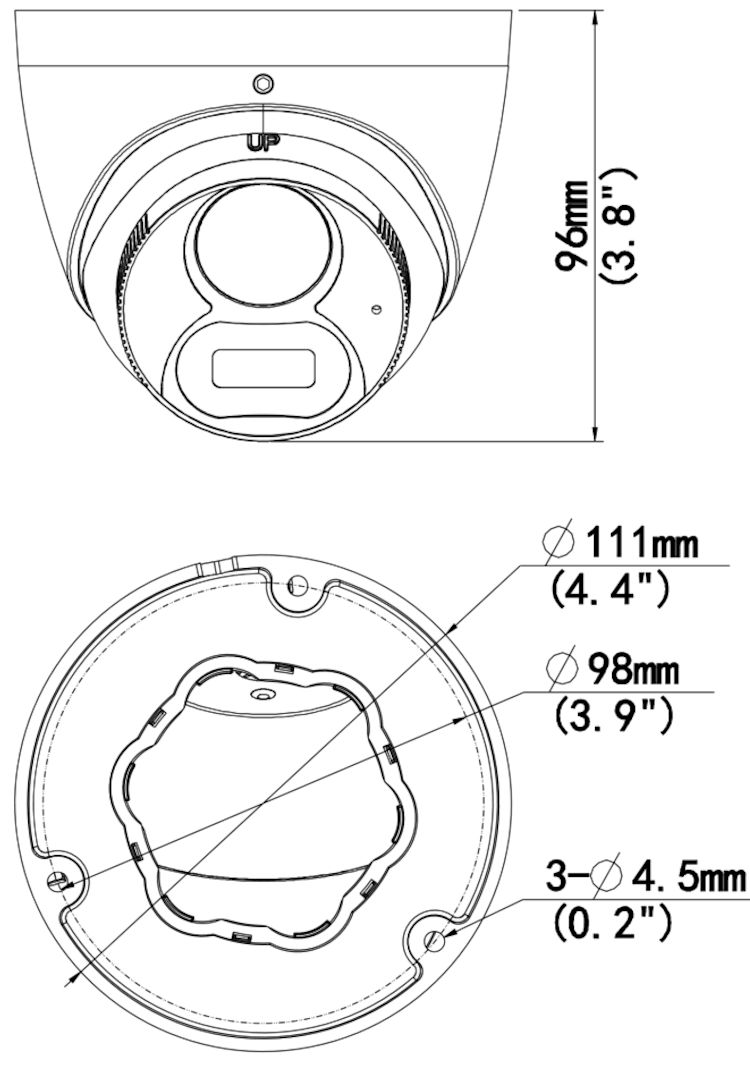

DimensionsΦ 3.9 inches (9.91 cm) X 3.8 inches (9.65 cm)
MaterialMetal + Plastic
Weight0.79 lb (0.36 kg)
