UIR-2344V-B
Original price was: $344.99.$206.95Current price is: $206.95.Ea.
Eyemax UIR-2344V-B EX-SDI IR Bullet 2 Megapixel COB IRx8 2.8~12 mm Auto Varifocal Megapixel ICR Dual Power AC 24V DC 12V Smart Mount II
- 1/2.9-inch SONY CMOS sensor
- IMX-222
- IMX-322
- HD-SDI CROP
- 1080P
- 720P
- 720P
- Extended Serial Digital Interface
- 0 Lux at IR On (IR LED 8 pcs)
- Upgraded Waterproof Housing (IP68rating)
- OSD Controlled
- DNR (Digital Noise Reduction)
- Smart IR
- WDR (Wide Dynamic Range)
- Day and Night (ICR Option)
- Digital ZOOM, Privacy, and Image Conversion
- DC Auto IRIS and TDN Varifocal Lens 2.8~12 mm
- Fixed Lens
- 3.6 mm
- 3.7 mm
- 4 mm
- 4.3 mm
- 6 mm
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description

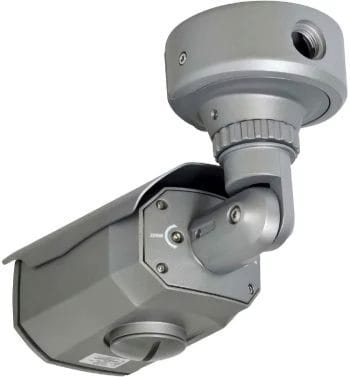

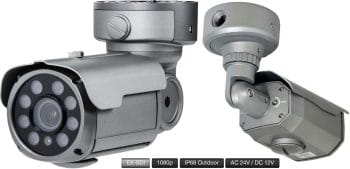

Upgrade your surveillance system with the Eyemax UIR-2344V-B EX-SDI 1080p IR Bullet Camera. This high-definition camera offers the simplicity and affordability of an analog camera while delivering 2-megapixel resolution. The UIR-2344V-B has a 2.812 mm lens and 8 COB IR lights. Its dual power feature allows for easy installation and ensures uninterrupted performance.
The UIR-2344V-B comes equipped with features that make it easy to control and monitor. You can conveniently control the camera’s OSD (On-Screen Display) settings from your PC, mobile devices, or Eyemax’s EX-SDI series DVRs. This allows for easy customization of the camera’s functionality to suit your specific surveillance needs. Additionally, the camera’s 960H video output allows for easy connection to a test monitor or analog DVR.
The IP68 rating for weather resistance makes this camera ideal for outside installation. Its durable construction ensures that it can withstand harsh weather conditions, making it perfect for outdoor use. The UIR-2344V-B can be used with existing coaxial wiring and camera power to upgrade an analog CCTV system to HD. Upgrade your cameras and DVR, and you’re up and running in no time!
The UIR-2344V-B utilizes progressive scan technology to deliver IP-quality video over coax, providing superior image quality. It also features 12VDC/24VAC dual voltage, DNR, and WDR for enhanced performance in various lighting conditions. Whether it’s day or night, this camera ensures that you have clear and crisp footage at all times.
Depend on the Collsam Distribution for all your Eyemax needs. We are dedicated to providing our customers with top-quality surveillance products at competitive prices. We believe the Eyemax EX-SDI 1080p IR Bullet Camera is good and can do all your surveillance. With the Eyemax UIR-2344V-B, you can upgrade your surveillance system to HD resolution.
| Resolution | 1080P, 720P, 720P CROP |
| Sensor | 1/2.9-inch SONY CMOS (IMX-222 / IM × 322) |
| Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
| Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE274M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) |
| Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| shutter | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / × 2 / × 4 / × 8 / × 16 / × 32 |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| ACE | OFF / LOW / MIDDLE / HIGH |
| Day and Night | AUTO (Day <–> Night TIME Change), COLOR, Black and White, EXTERN, |
| Privacy | OFF / ON |
| Motion | OFF / SET |
| D.ZOOM | x1.0 ~ × 16.0 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| DEFOG | OFF / SET |
| COMM | RS-485 (PELCO-D) |
| SMART IR (IR product SPEC.) | ADJUSTABLE (0 ~ 20 STEP) |
| Operating Temperature / Humidity | 14°F (-10 °C) ~ 122°F (50°C) / 30% ~ 80% RH |
| Storage Temperature / Humidity | -4 °F (-20 °C) ~ 140°F (60°C) / 20% ~ 90% RH |
| Power | Dual Power 24VAC 12VDC (option) |
| Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M)) |
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 12 × 7 × 7 in |
