Eyemax UVI-2542V Superdome Series Indoor IR Dome 1080P HD-SDI Camera XDR-2542V, 2.8-12mm 12V DC

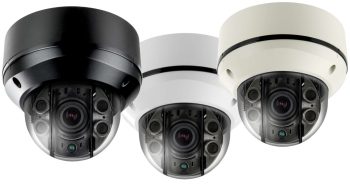

Capture crystal clear footage day and night with the Eyemax UVI-2542V Anti-IR Reflection camera. Featuring 1080P HD-SDI and EX SDI compatibility, COB IR, and a durable STORM case, this vandal-resistant camera is a top choice for security. Available in black, ivory, or white casing Assmply.

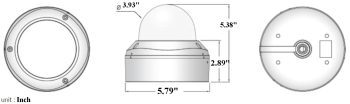

Eyemax UVI-2542V Superdome Series Indoor IR Dome 1080P HD-SDI Camera XDR-2542V, 2.8-12mm 12V DC Dimensions
Eyemax UVI-2542V Superdome Series Indoor IR Dome 1080P HD-SDI Camera XDR-2542V, 2.8-12mm 12V DC
Capture crystal clear footage day and night with the Eyemax UVI-2542V Anti-IR Reflection camera. Featuring 1080P HD-SDI and EX SDI compatibility, COB IR, and a durable STORM case, this vandal-resistant camera is a top choice for security. Available in black, ivory, or white casing Assmply.

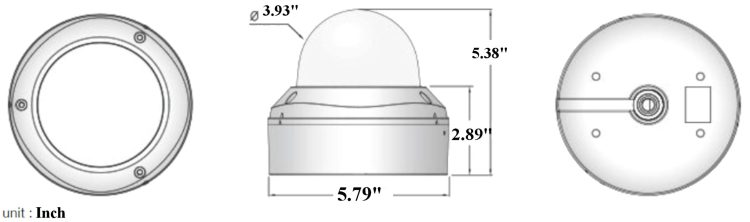

Eyemax UVI-2542V Superdome Series Indoor IR Dome 1080P HD-SDI Camera XDR-2542V, 2.8-12mm 12V DC Dimensions

UVI-2542V

Eyemax UVI-2542V Superdome Series Indoor IR Dome 1080P HD-SDI Camera XDR-2542V, 2.8-12mm 12V DC

UVI-2542V

Original price was: $211.99.Current price is: $131.95.

In stock
0 out of 5

Original price was: $211.99.Current price is: $131.95.

Eyemax UVI-2542V EX-SDI 1080p 2Megapixel STORM IR Dome Camera with 4 COB IR and 2.8~12 mm Lens

  • 1080p FULL HD Flawless Video
  • 1/2.9” Sony CMOS
  • 2.8 ~ 12 mm Auto-Iris VariFocal Lens
  • 0 Lux at IR On (COB IR : 4pcs)
  • Upgraded Waterproof Housing (IP68 Rating)
  • Smart IR. DNR (Digital Noise Reduction)
  • True Day and Night (ICR)
  • RS-485 Option
  • Easy Installation
  • DC 12V
Eyemax security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security
SKU: UVI-2542V Categories: , Tags: , , , , , ,

Description

Introducing the Eyemax UVI-2542V, the ultimate anti-IR reflection camera for your security needs. With its sleek and sturdy design, this camera is not only highly functional but also aesthetically pleasing. It is an ideal choice for both indoor and outdoor surveillance because of its advanced technology.

The UVI-2542V camera boasts a high-definition 1080p resolution, providing clear and crisp footage. It also supports the EX SDI selectable balun, making it compatible with various systems. This feature allows for easy installation and integration with your existing security setup. With its anti-IR reflection technology, this camera eliminates any interference caused by infrared light, ensuring accurate and reliable surveillance footage.

With its 2.8-12mm lens, you can cover a larger area or zoom in for a closer look. The lens is also a megapixel lens, providing superior image quality and clarity.

The camera has an infrared cut filter that automatically switches to night vision mode when the lighting is dim. This ensures round-the-clock surveillance without any compromise on image quality.

An IP68 rating protects the UVI-2542V from the elements outside. This means it is dust-tight and can withstand submersion in water for a prolonged period. The camera also has IK10 vandal resistance, making it resistant to impacts and tampering. It is housed in a sturdy STORM case, providing maximum protection against harsh weather and vandalism.

One of the standout features of the UVI-2542V is its 4 pieces of chip-on-board (COB) infrared LEDs. The range of these powerful infrared lights in complete darkness is up to 100 feet (30.48 m). This makes the camera ideal for outdoor areas with low lighting. The COB LEDs also consume less power, resulting in longer lifespan and lower maintenance expenses.

In summary, the Eyemax UVI-2542V is a top-of-the-line security camera designed to meet all your surveillance needs. With its high-definition resolution, anti-IR reflection technology, flexible lens, and durable build, it is a reliable choice for both residential and commercial use. Don’t compromise on your security, invest in the UVI-2542V and have peace of mind knowing your property is under constant watch.

Datasheet

Download

Eyemax UVI-2542V Superdome Series Indoor IR Dome 1080P HD-SDI Camera XDR-2542V, 2.8-12mm 12V DC Datasheet

Resolution1080p, 720p
Sensor1/2.9 inch SONY CMOS (IMX-222 / IM × 322)
Total Pixels2000(H) × 1241(V) = 2,482,000
Effective Pixels1944(H) × 1092(V) = 2,122,648
Scanning SystemProgressive
S/N (Y Signal)More than 52 dB (AGC Off)
Video OutputSMPTE274M (HD-SDI) / CVBS: 1.0Vp-p (75ohm)
Min. IlluminationIR Product: 0 Lux at IR On
White BalanceAuto / Auto Ext / Preset / Manual
ShutterAuto / Manual (1/30sec ~ 1/30,000sec)/ FLICKER
BrightnessAdjustable (0 ~ 20 Step)
Sens UpOFF / × 2 ~ × 32
DNROFF / Low / Middle / High
BacklightOFF / WDR / BLC / HLM
ACEOFF / Low / Middle / High
Day & NightAuto (Day <–> Night Time Change), Color, B/W, EXTERN
PrivacyOFF / ON
MotionOFF / ON
FlipOFF / ON
DefogOFF / ON
LanguageEnglish, Chinese, Chinese(S), Japanese, Korean
SharpnessAdjustable (0 ~ 10 Step)
DefogOFF / SET
Communication PortRS-485 (Pelco-D)
Smart IRAdjustable (0 ~ 20 Step)
Operating Temp / Humidity14 °F (-10 °C) ~ 122 °F (50 °C) / 30% ~ 80% RH
Storage Temp / Humidity-4 °F (-20 °C) ~ 140 °F (60 °C) 20% ~ 90% RH
PowerDC 12V
Signal TransmissionThe distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (500M))

Additional information

Weight3 lbs
Dimensions7 × 7 × 7 in
Color

Black, Ivory, White
