Eyemax UVI-M2564V Advanced EX-SDI Video Transmission

UVI-M2564V

0 out of 5

( There are no reviews yet. )

Original price was: $243.99.Current price is: $165.95.

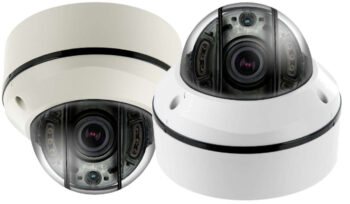

Eyemax UVI-M2564V EX-SDI 2MP STORM® IR Dome Camera with 6 COB IR, Varifocal Lens, Dual Power

Eyemax Storm Series 1080P HD-SDI, EX SDI Vandal DOME IR Camera 2.8-12mm Dual Power Manual Motorized
Manual MOTORIZED 2.8–12 mm Auto-Iris VariFocal Lens
1080p FULL HD Flawless Video
HD-SDI, EX SDI Selectable
1/2.9” Sony CMOS
0 Lux at IR On (COB IR : 6pcs)
Upgraded Waterproof Housing (IP68 Rating)
Smart IR / DNR (Digital Noise Reduction) / True Day & Night (ICR)
RS-485 Option
Easy Installation
Dual Power : AC 24V / DC 12V
Comes in ivory or white color.
Made in Korea

SKU: UVI-M2564V Categories: 2 Megapixel HD Coaxial Cameras, HD Coaxial Cameras Tags: 1/2.9″ SONY CMOS (IMX-222/IMX322), 2.8-12mm Motorized Varifocal Auto Iris Lens, DNR (Digital Noise Reduction), Dual Power 12VAC or 24VDC, ICR True Day and Night Auto Switch, IP68 Ingress Protection, NDAA Compliant;, White Balance ATW ( Auto Tracking White Balance)

Color

Description

The Eyemax Storm® UVI-M2564V is a top-of-the-line dome security camera. It offers high-definition surveillance for outdoor and indoor areas. Its vandal-resistant design makes it a reliable option for ensuring the safety and security of your property. Because of its exceptional features, the Eyemax Storm® UVI-M2564V is the go-to choice for businesses and homeowners looking for a reliable and effective surveillance solution.

Featuring a 1080p Full HD (2 Megapixel) resolution, this camera delivers crystal-clear images with exceptional detail and clarity. The motorized 2.8~12 mm auto-iris Varifocal lens allows you to adjust the focus to your desired viewing angle. As a result, it is suitable for a wide range of applications. Furthermore, the 1/2.9” Sony CMOS sensor enhances the quality of the footage captured. It ensures accurate color reproduction and superior low-light performance.

One standout feature of the Eyemax Storm® UVI-M2564V is its EX-SDI video transmission technology. This advanced system enables the camera to transmit high-quality videos over standard coaxial cables. Consequently, it is a cost-effective solution for surveillance purposes.

Additionally, the specialized anti-IR reflection technology incorporated in this camera eliminates the washed-out effect. This effect results from infrared light on the camera dome reflecting from rain, oil, or other obstructions. This ensures clear and crisp footage at all times.

Equipped with 6 Chip-On-Board (COB) IR LEDs, this camera can capture clear images in complete darkness. Thus, it is an ideal choice for 24/7 surveillance. The IP68 ingress protection-rated waterproof housing and the patented STORM vandal-resistant case protect the camera from harsh weather conditions. Physical tampering is also not allowed. This ensures its longevity and reliability.

The Eyemax Storm® UVI-M2564V offers dual power support. You can connect to either an AC 24V or a DC 12V power source. This versatility makes it suitable for various installation setups. In addition, the camera has an RS-485 communication port (Pelco-D protocol) that allows for remote lens and setting control. Consequently, it is convenient to adjust and customize the camera’s settings according to your requirements.

Resolution	1080p, 720p, 720p CROP
Sensor	1/2.9 inch SONY CMOS (IMX-222 / IM × 322)
Total Pixels	2000(H) × 1241(V) = 2,482,000
Effective Pixels	1944(H) × 1092(V) = 2,122,648
Scanning System	Progressive
S/N (Y Signal)	More than 52 dB (AGC Off)
Video Output	SMPTE274M (HD-SDI) / CVBS: 1.0Vp-p (75 ohm)
Min. Illumination	IR Product: 0 Lux at IR On
White Balance	Auto / Auto Ext / Preset / Manual
Shutter	Auto / Manual (1/30sec ~ 1/60,000sec)
Brightness	Adjustable (0 ~ 20 Steps)
Sense Up	OFF / × 2 / × 4 / × 8 / × 16 / × 32
DNR	OFF / Low / Middle / High
Backlight	OFF / WDR / BLC / HLM
ACE	OFF / Low / Middle / High
Day & Night	Auto (Day <–> Night Time Change), Color, B/W, Extern
Privacy	OFF / ON
Motion	OFF / SET
Digital Zoom	×1 ~ × 16
Flip	OFF / ON
Freeze	OFF / ON
Language	English, Chinese, Chinese(S), Japanese, Korean
Sharpness	Adjustable (0 ~ 10 Steps)
Defog	OFF / SET
Communication Port	RS-485 (Pelco-D)
Smart IR	Adjustable (0 ~ 20 Steps)
Operating Temp / Humidity	14°F (-10°C) ~ 122°F (50°C) 30% ~ 80% RH
Storage Temp / Humidity	-4 °F (-20°C) ~ 140°F (60°C) 20% ~ 90% RH
Power	AC 24V / DC 12V
Signal Transmission	The distance difference occurred according to cable options and other circumstances. (based on 5C-HFBT: HD-SDI (200M) / EX-SDI (400M))

Additional information

Weight	5 lbs

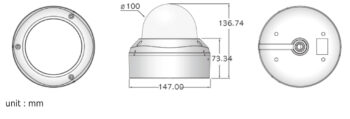

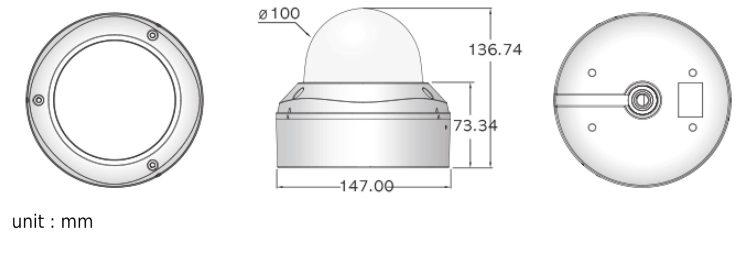

Dimensions	14 × 8 × 14 in
Color	Ivory, White
