UVI-8712V
Original price was: $381.99.$320.95Current price is: $320.95.

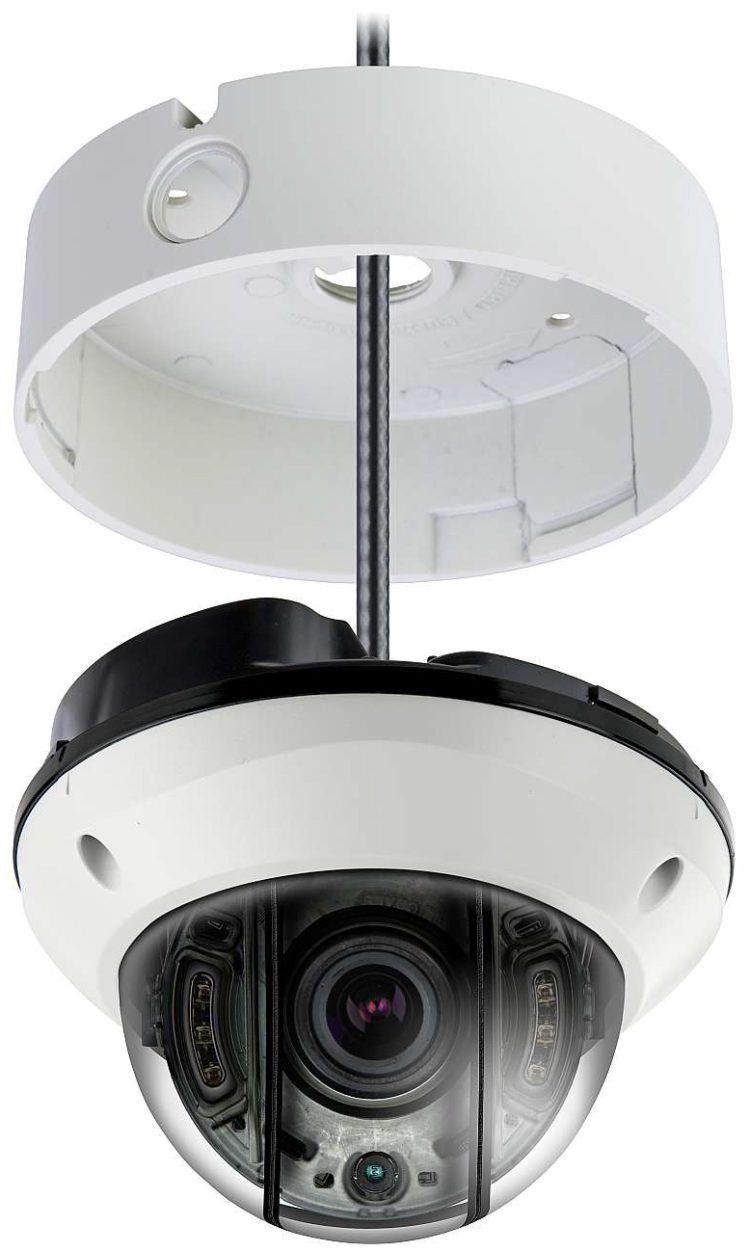

Eyemax UVI-8712V Anti-IR Reflection 4K EX-SDI/HD-SDI STORM® IP68 3.6~10 mm varifocal Dome Camera
- 1/1.7 inch SONY CMOS (IMX-226)
- 0 Lux at IR On (IR LED 10 pcs)
- Waterproof Housing: IP 68 rating ingress protection.
- DNR (Digital Noise Reduction)
- WDR (Wide Dynamic Range)
- Day and Night (ICR Option)
- ICR F lens, DC Auto IRIS V/F Lens, DC Auto IRIS & TDN V/F Lens
- 3.6~10 mm varifocal
- Description
- Product Documents
- Speciifications
- Additional information
- Collsam Brands
Description
Introducing the Eyemax UVI-8712V 4K Dome Camera, the ultimate solution for all your surveillance needs. This camera’s 1/1.7” SONY CMOS (IMX-226) sensor and 8.3MP resolution make it perfect for monitoring high-risk areas. The 3.6–10 mm varifocal lens lets you pick the field of view you require for close-up or wide-angle surveillance.
With a maximum range of 98 feet (29.87 m) and 10 COB IR LEDs, this camera has great night vision. The anti-IR reflection technology prevents video washouts caused by infrared light, ensuring that the footage is always clear and visible. Because it has a 0 Lux infrared rating, this camera can take pictures even when it’s completely dark outside.
The Eyemax UVI-8712V is built to withstand harsh weather conditions and has an IP68 ingress protection rating. This means that the camera is completely waterproof and can even withstand submersion in water for up to 30 minutes. This camera will work fine in heavy rain or very hot or cold temperatures, so it’s perfect for use outside.
One of the standout features of the Eyemax UVI-8712V is its advanced image processing technology. The camera takes pictures that are clear, sharp, and have little noise thanks to True WDR and DNR. This ensures that the footage captured by this camera is of the highest quality, even in challenging lighting conditions.
The Eyemax UVI-8712V also offers an extensive range of functionality options to suit your specific surveillance needs. The camera offers three options: the Varifocal Lens, the DC Auto IRIS Varifocal Lens, and the TDN Varifocal Lens. DC 12V Day and Night (ICR Option) is another feature that lets you monitor continuously day or night.
The Eyemax UVI-8712V 4K Dome Camera is a smart and unobtrusive addition to any security system. It is also a powerful surveillance tool. This camera is strong, flexible, and useful, so it’s a great choice for very safe homes or businesses. You can count on Eyemax to give you the safest and most reliable products.
| Resolution | 2160 (UHD) 1080P (HD-SDI) |
| Sensor | 1/1.7” SONY CMOS (IMX-226) |
| Effective Pixels | 4074(H) × 3046(V) = 12.4M |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | UHD / HDMI 1.4 / SMPTE274M (HD-SDI) |
| Min.Illumination | 0 Lux at IR On |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN |
| PRIVACY / MOTION | OFF / ON |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| COMM. | RS-485(PELCO-D) |
| Temperature/Humidity | Operational temperature range: 14 °F (-10 °C) to 122 °F (50 °C) at 30% to 80% relative humidity. Storage temperature range: -4 °F (-20 °C) to 140 °F (60 °C) at 20% to 90% relative humidity. |
| Power | DC12V |
| signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : UHD 492.13 ft (150 m)) |
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 9 × 9 × 9 in |
| Color | Ivory, White |
