TVST-PVT-04N5

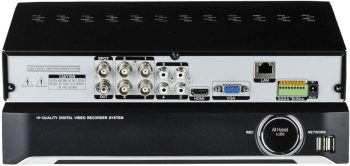

Eyemax TVST-PVT-04N5 4Channel Pentabrid DVR. Supports up to 5MP cameras and offers advanced features like digital zoom, PTZ control, Up to 12 Terabytes Hard Drive and multiuser authority.

TVST-PVT-04N5

Out of stock
0 out of 5

Eyemax TVST-PVT-04N5 4 Channel 3 Megapixel H.265 Pentabrid TVI, AHD, CVI, IP, 960H, 1 x SATA

  • Full GUI with alpha blending
  • Individual setting of resolution, frame rates and picture quality
  • Instant Replay
  • Digital Zoom
  • Mouse Control
  • Weekly scheduler with holiday by 10 minutes setting
  • Covert, Disable and Private function of cameras
  • Motion Detection with 576 area setting
  • Relay alarm output
  • PTZ control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi-User Authority up to 8 Users
  • Deinterlacer upon live and playback
  • 22 languages with full graphic
  • Individual Network port setting
  • Auto Deletion
  • Import and Export the configuration
  • Interactive setup via network
  • POS Interface
  • No Mirroring
  • Dual CODEC engine for independent video transmission
Eyemax LogoCollsam Security NDAA

Description

Eyemax TVST-PVT-04N5 4-Channel Pentabrid DVR, the ultimate surveillance solution for your home or business. With support for cameras up to 5MP, this DVR is perfect for high-definition TVI, CVI, AHD, and 960H analog cameras. This DVR can upgrade or replace your security system.

This DVR can handle different types of video, making it a good choice for any security setup. If you don’t have a hard drive, you can choose a storage size of up to 12 terabytes. This means you can save videos for weeks or even months.

The Eyemax TVST-PVT-04N5 has a full GUI with alpha blending that makes it easy to navigate and tweak your settings. You can adjust each camera individually.

Need to review a particular moment from the past? You can watch the footage you need by going back to a specific time and date. The digital zoom and mouse control allow you to get a closer look at any detail in the footage.

The Eyemax TVST-PVT-04N5 has a relay alarm output, PTZ control via RS-485, and support for daylight saving time. With multiuser authority, you can give other team members access to the system.

With 22 languages to select from, full graphics, and individual network port settings, this DVR delivers exceptional video quality. You can use the network feature to import and export settings quickly.

Businesses can seamlessly connect their sales data with video footage for optimal security with the Eyemax TVST-PVT-04N5 built-in POS interface. And with its dual CODEC engine, you can rest assured that your video transmission will be smooth and efficient.

Video
Camera input4 BNC
Individual HD/Analog selectableAnalog, TVI, AHD, CVI, IP
Available sourceTVI/AHD/Analog – up to 3M
IP Camera SpecONVIF 2.3, RTSP, H.264, H.265, and dual stream use a gigabit Ethernet hub
IP Camera Number1
IP Camera ResolutionUp to 3M
IP Camera RestrictionCannot set up a Private ZONE
Cannot support Timestamp
Output1 HDMI (Main Display)
1 VGA (Main Display)
1 Composite (Programmable SPOT)
Audio
Audio input4 RCA
Output1 RCA
Sensor In4 (NC, NO selectable)
Alarm out1 relay
Operating SystemEmbedded Linux OS
Display
SpeedReal Time
Resolution (Pixel)1280 × 1024, 1280 × 720, 1920 × 1080
Split screen1,4
Main Recording
CODECH.265
Resolution (Pixel)2, 3MP or 720p @ 2,3MP input
720p or 960 × 540 @ 720p input
960H or D1 @ Composite, 960H input
Picture quality4 steps (Super, High, Medium, Low)
Speed60fps @ 1080p
Dual Recording
CODECH.264
Resolution (Pixel)x
Playback
Display1,4
Search modeCalendar, Event, POS, Panorama, Thumbnail, Bookmark
Speed30fps @ 1080p
Fast/Slow speedNormal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x, 1/4x], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network InterfaceMegabit Ethernet
High Resolution (Pixel)same as main recording
Low Resolution (Pixel)480 × 256 stream @ 2,3M, 720p
CIF stream @ 960H, Composite
Speed20fps @ 1080p
ProtocolTCP/IP, HTTP, DHCP
ApplicationWindows 7 / 8 / 10 (PC Client system and I.E.,)/MAC
Web BrowserInternet Explorer, Safari
Smartphone AppAndroid, iPhone for live and search
Backup
InterfaceUSB 2.0 × 2
Backup deviceExternal HDD and CD/DVD-RW, Network, Thumb Drive
The number of HDD1 SATA(No capacity limit ; 10TB or more)
Others
Power Consumption24W
Operating Temperature32 °F (0 °C) ~ 104 °F (40 °C)
Relative HumidityMaximum 80% non-condensing
Dimension11.81 inches (30 cm) (W) × 8.27 inches (21.01 cm) (D) × 1.89 inches (4.8 cm) (H)

Additional information

Weight9 lbs
Dimensions13 × 10 × 3 in
Hard Drive

No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive
