TVST-PVT3-08N5
Price range: $188.95 through $502.95
Eyemax TVST-PVT3-08N5 8-Channel 5 Megapixel Pentabrid System with HD-TVI, CVI, AHD, IP & Analog Support
- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality Instant Replay
- Digital Zoom
- Mouse Control
- Weekly scheduler with holiday by 10 minutes setting Covert, Disable and Private functions of cameras
- Motion Detection with 576 area setting
- Description
- Product Documents
- Speciifications
- Additional information
- Collsam Brands
Description
Introducing the TVST-PVT3-08N5, an advanced 8-channel system that allows you to capture crystal-clear footage in 5-megapixel resolution. This state-of-the-art system is perfect for both commercial and residential use. It offers excellent quality and versatility for all your security needs.
One of the standout features of the TVST-PVT3-08N5 is its Pentabrid compatibility. This means that it is capable of supporting multiple camera types, including HD-TVI, CVI, AHD, IP, and traditional analog cameras. This allows you the flexibility to use the camera of your choice, without having to worry about compatibility issues.
So whether you already have existing cameras or plan to upgrade in the future, this system has got you covered.
With its individual settings for resolution, frame rates, and picture quality, the TVST-PVT3-08N5 allows you to customize your recording preferences according to your specific needs. This means you can choose to record in high definition or lower quality. It depends on your storage capacity and other factors. The system also offers a convenient weekly scheduling function. This allows you to automatically adjust these settings based on your desired schedule.
The TVST-PVT3-08N5 also comes equipped with motion detection technology, providing you with an added layer of security. With 576 different areas that can be configured for motion detection, you can rest assured that every corner of your property is being monitored. This feature also allows you to receive alerts and notifications whenever motion is detected. Thus, keeping you informed and in control at all times.
Another great feature of the TVST-PVT3-08N5 is its support for digital zoom and instant replay. This allows you to zoom in on specific areas of the recorded footage for a closer look. This can be extremely useful in identifying potential threats or incidents. The instant replay function also enables you to quickly review footage without having to wait for the entire recording to finish.
Additionally, this system is user-friendly and supports multiple languages, making it accessible to a wide range of users. Whether you are a security professional or a homeowner, the TVST-PVT3-08N5 is easy to set up and operate. This makes it a convenient and hassle-free security solution. Overall, the TVST-PVT3-08N5 offers top-of-the-line features and flexibility. It is a must-have for any security-conscious individual or business.

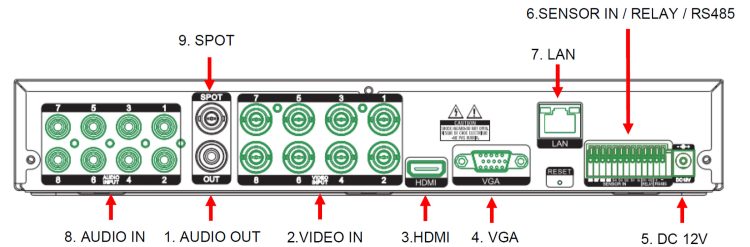

| Video | |
|---|---|
| Camera input | 8 BNC |
| Individual HD/Analog selectable | Analog / TVI / AHD / CVI / IP |
| Available source | TVI / AHD / CVI 720p@25/30 / 1080p@25/30 / 3MP@18 / 4MLite@12~30/ Composite / 960H / Mixed |
| IP Camera Spec | ONVIF 1812 / RTSP / H.264 / H.265 / dual stream use gigabit Ethernet hub |
| IP Camera | 2 |
| IP Camera Resolution | up to 3M |
| IP Camera Restriction | Cannot setup Private ZONE Cannot support Timestamp |
| Output | 1 HDMI (Main Display ~4M@30) 1 VGA (Main Display ~1080P60) 1 Composite (Programmable SPOT) |
| Audio | |
| Audio input | 8 RCA |
| Output | 1 RCA |
| Sensor In | 8 (NC / NO selectable) |
| Alarm out | 1 relay |
| Operating System | Embedded Linux OS |
| Display | |
| Speed | Real Time |
| Resolution (Pixel) | 1280 × 1024 / 1280 × 720 / 1920 × 1080 |
| Split screen | 1 / 4 / 6 / 8 / 9 |
| Main Recording | |
| CODEC | H.264 / H.265 |
| Resolution (Pixel) | 2,3MP or 720p @ 2,3MP input 720p or 960 × 540 @ 720p input 960H or D1 @ Composite / 960H input |
| Picture quality | 4 steps (Super / High / Medium / Low) |
| Speed | 120fps @ 1080p |
| Dual Recording | |
| CODEC | H.264 / H.265 |
| Resolution (Pixel) | 512 × 320 |
| Playback | |
| Display | 1 / 4 / 6 / 8 / 9 |
| Search mode | Calendar / Event / POS / Thumbnail / Bookmark |
| Speed | 120fps |
| Fast/Slow speed | Normal / REW & FF (recorded speed ×2 / ×4 / ×8 / ×16 / ×32 / ×64 / ×1/2 ×1/4) / Frame to frame / Pause |
| Network (Individual setting of resolution / frame rates and picture quality) | |
| Network Interface | Megabit Ethernet |
| Protocol | TCP/IP / HTTP / DHCP |
| Application | Windows 7 / 8 / 10 (PC Client System & I.E.,) / MAC |
| Web Browser | Internet Explorer |
| Smartphone App | Android / iPhone for live and search |
| Backup | |
| Interface | USB 2.0 × 2 |
| Backup device | External HDD and CD/DVD-RW / Network / Thumb Drive |
| The number of HDD | 1 SATA(No capacity limit ; 10 TB or more) |
| Mirroring | No |
| Others | |
| Power Consumption | 24W |
| Operating Temperature | 32 °F (0 °C)~104 °F (40 °C) |
| Relative Humidity | Maximum 80% non-condensing |
| Dimension W × D × H | 11.8 inches (29.97 cm) × 8.27 inches (21.01 cm) × 1.89 inches (4.8 cm) |
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 20 × 12 × 5 in |
| Hard Drive | No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive |
