NPT-IR-A8400

0 out of 5

( There are no reviews yet. )

Original price was: $811.99.Current price is: $455.95.

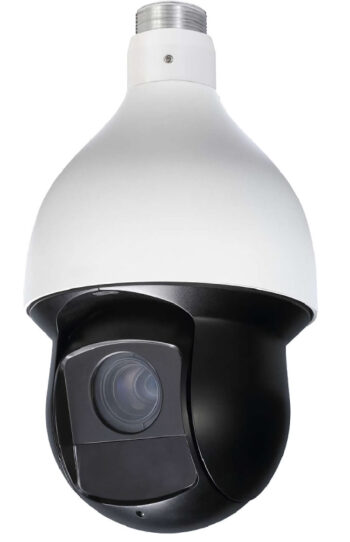

Eyemax NPT-IR-A8400 4MP H.265+ IR PTZ Network Camera with 25x Optical Zoom, Starlight Technology, PoE+

1/2.8″ STARVIS™ CMOS
25x optical zoom
H.265 Encoding
Max. 25/30 fps @ 4M/3M
25/30/50/60fps@1080P
IVS
Support PoE+
IR distance up to 100m
Auto-tracking and IVS
Support PoE+
IP66

SKU: NPT-IR-A8400 UPC: 745557283819 Categories: Network IP Cameras, PTZ Network IP Cameras Tags: 1/2.8" STARVIS™ CMOS, 3D DNR (3D Digital Noise Reduction), Digital PTZ and multi-view, H.265 H.264 MJPEG, PTZ, PTZ Auto Cruise, PTZ Network IP, WDR (Wide Dynamic Range)

Description

The Eyemax NPT-IR-A8400 is a state-of-the-art 4-megapixel PTZ network camera. It combines advanced technology with exceptional performance. This high-definition camera is designed for professional surveillance applications. Consequently, it provides broad area coverage and high-detail zooming capabilities. Whether you need to monitor a large outdoor area or capture details of specific objects, the Eyemax NPT-IR-A8400 is the perfect solution.

With a resolution of 4MP (2592 × 1520), this camera delivers crystal-clear images and videos in real time. It also records at 25/30 frames per second.

The powerful 25x or 30x optical zoom options (depending on the specific sub-model/version) allow you to view objects in great detail. You can see these objects no matter how far they are from the camera. As a result, the Eyemax NPT-IR-A8400 is ideal for security applications that require precise identification of objects or individuals from a distance.

One of the standout features of the Eyemax NPT-IR-A8400 is its industry-leading IR capability, with a range of up to approximately 656 feet (0.2 km). This means that the camera is highly effective in low-light conditions. It provides clear and detailed images even in complete darkness. Additionally, the 1/2.8” STARVIS CMOS sensor further enhances low-light performance. Therefore, it ensures that the camera captures every detail in any lighting situation.

The Eyemax NPT-IR-A8400 also boasts True WDR (120 dB) technology, which allows it to maintain image clarity even in high-contrast lighting scenarios. This means that the camera can capture clear images in both bright and dark areas of the scene. As a result, it is ideal for outdoor surveillance in varying lighting conditions.

The camera also comes with several advanced features that enhance its capabilities. These include auto-tracking, which keeps moving objects in the scene in focus. Additionally, IVS (intelligent video surveillance) can automatically detect and alert you of any suspicious activity. Moreover, the upgraded smart H.265+ encoding technology reduces network bandwidth and storage requirements. This makes it an efficient and cost-effective option for surveillance applications.

The Eyemax NPT-IR-A8400 is designed for ease of use and installation. It supports both PoE+ (802.3at) and AC24V power supply, making it flexible and convenient to power the camera.

The camera also features a 360° endless pan and a 0° to 90° tilt range with auto-flip capability. Thus, it allows you to monitor a wide area with ease. Moreover, its rugged design makes it suitable for use in both indoor and outdoor environments. Therefore, it is a versatile and durable surveillance solution.

In conclusion, the Eyemax NPT-IR-A8400 is a high-performance PTZ network camera that delivers exceptional image quality, advanced features, and ease of use. Its innovative technology and robust design make it a top choice for professional surveillance applications. These applications require superior coverage and detailed zoom capabilities. Whether for commercial, industrial, or residential use, the Eyemax NPT-IR-A8400 is a reliable and powerful camera. It will meet all your surveillance needs.

Camera
Image Sensor	1/2.8” STARVIS™ CMOS
Pixel	4 Megapixels
Max. Resolution	2560 (H) × 1440 (V)
ROM	4GB
RAM	1GB
Electronic Shutter Speed	1/1 s–1/30,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.005 Lux @ F1.6 B/W: 0.0005 Lux @ F1.6 0 Lux @ F1.6 (IR light on)
Illumination Distance	100 m (328.08 ft)
Illuminator On/Off Control	Zoom Prio / Manual / Smart IR
Illuminator Number	4
Lens
Focal Length	4.8 ~ 120 mm
Max. Aperture	F1.6 ~ F4.0
Field of View	H: 60.0°–2.5°; V: 30.8°–2.2°; D: 66.7°–2.9°
Optical Zoom	25x
Focus Control	Auto, Semi-Auto, Manual
Close Focus Distance	0.33 ft (0.1 m) ~ 4.92 ft (1.5 meters)
Iris Control	Auto Manual
DORI Distance	Detect: 2540 m (8333.33 ft) Observe: 1016 m (3333.33 ft) Recognize: 508 m (1666.67 ft) Identify: 254 m (833.33 ft)
PTZ
Pan/Tilt Range	Pan: 0°–360° (endless) Tilt: -15°–90° (auto flip 180°)
Manual Control Speed	Pan: 0.1°–200°/s Tilt: 0.1°–120°/s
Preset Speed	Pan: 240°/s Tilt: 200°/s
Presets	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Speed Adjustment	Support
Power-off Memory	Support
Idle Motion	Preset / Tour / Pattern / Scanning
Protocol	DH-SD Pelco-P/D (auto recognition)
General Intelligence
Event Trigger	Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, storage anomaly
IVS	Object Abandoned/Missing
Artificial Intelligence
Perimeter Protection	Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
SMD PLUS	Support
Face Detection	Support
Smart Capture	Support human, motor vehicle, and non-motor vehicle image capture.
Video
Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG (sub stream)
Streaming Capability	3 streams
Resolution	4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Frame Rate	Mainstream: 4MP / 3MP / 1080P / 1.3MP / 720P (1–25 fps) Substream 1: D1/CIF (1–25 fps) Substream 2: 1080P / 1.3M / 720P (1–25 fps)
Bit Rate Control	Variable / Constant
Bit Rate	H.265 / H.264: 3 kbps–20480 kbps
Day/Night	Auto (ICR) / Color / B/W
BLC	Support
WDR	120 dB
HLC	Support
White Balance	Auto / Indoor / Outdoor / Track / Manual / Sodium lamp / Natural light / Streetlamp
Gain Control	Auto, Manual
Noise Reduction	Ultra DNR (2D/3D)
Motion Detection	Support
Region of Interest	Support
Electronic Image Stabilization	Support
Electronic Defog	Support
Digital Zoom	16x
Flip	180°
Privacy Masking	Up to 24 areas, and up to 8 areas in the same view
Audio
Compression	G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3 (MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Interoperability	ONVIF Profile S&G&T; CGI
Streaming Method	Unicast, Multicast
User, Host	20
Storage	NAS; Local PC; Micro SD card (256G)
Browser	IE7 and newer versions Chrome 45 and earlier versions Firefox 52 and earlier versions Safari (no version restrictions)
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	iOS/Android
Certification
Certifications	CE: EN55032/EN55024/EN50130 ~ 4 FCC: Part 15, subpart B, ANSI C63.4 ~ 2014 UL: UL62368 ~ 1+CAN/CSA C22.2, No. 62368 ~ 1
Port
Audio Input	1
Audio Output	1
Alarm I/O	2/1
Power
Power Supply	DC 12V/3A / PoE+ (802.3at)
Power Consumption	13W / 21W (IR on)
Environment
Operating Temperature	-40°F (-40°C) to +158°F (70°C)
Operating Humidity	≥95%
Protection	IP66; TVS 6000V lightning proof; surge protection
Structure
Dimensions	6.30 inches (16 cm) × 11.61 inches (29.49 cm)
Net Weight	3 kg (6.61 lb)
Gross Weight	10.58 lb (4.8 kg)

Additional information

Weight	7 lbs
Dimensions	15 × 9 × 9 in
