NPT-IR-A9200SL
Original price was: $719.99.$409.95Current price is: $409.95.
The Eyemax NPT-IR-A9200SL is a 2-megapixel (1080P) H.265+ Starlight PTZ Network Camera.
- 1/2.8” 2-Megapixel CMOS
- Powerful 25x optical zoom
- Starlight technology
- Max. 50/60fps@1080P
- Deep-learning-based perimeter protection
- Support PoE+
- IR distance up to 330 ft (0.1 km)
- SMD Plus: Smart Motion Detection (SMD+)
- IP66 Ingress Protection
- IK10 Vandal Resistance
- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description
The Eyemax NPT-IR-A9200SL is a cutting-edge PTZ network camera that offers high-performance surveillance for detailed applications. With its 2MP (1080p) resolution, this camera provides crystal clear images and videos. This makes it ideal for capturing even the finest details.
The camera features a 1/2.8″ 2-megapixel STARVIS™ CMOS sensor. This sensor delivers stunning image quality at a smooth 50/60 frames per second. This high frame rate ensures that no detail goes unnoticed. As a result, it is perfect for security applications where accurate and detailed footage is of the utmost importance.
One of the standout features of the Eyemax NPT-IR-A9200SL is its powerful 25x optical zoom. It has a zoom range of 4.8~120 mm. This allows you to zoom in on objects and people from a considerable distance while still maintaining clarity and detail.
This feature is particularly useful for applications that require long-range surveillance, such as large outdoor spaces or parking lots. With this camera, you can rest assured that no detail will be missed. This remains true no matter how far away it may be.
The camera’s Starlight low-light technology is another impressive feature that sets it apart from other surveillance cameras in the market. This advanced technology ensures high-quality images even in low-light environments. Therefore, you can capture clear and detailed footage at any time of the day or night.
This feature is especially useful for outdoor applications where lighting conditions can be challenging. For instance, it is helpful in parking lots or construction sites. With the Eyemax NPT-IR-A9200SL, you can be confident that your surveillance system will never miss a beat. This is true even in low-light situations.
In addition to its high-resolution imagery and advanced zoom and low-light capabilities, the Eyemax NPT-IR-A9200SL also offers WIZSENSE AI technology for perimeter protection.
This technology includes features such as filtering false alarms and SMD Plus (Smart Motion Detection Plus). SMD Plus uses AI algorithms to accurately detect and distinguish between humans and vehicles. This sophisticated AI-powered analytics system reduces the number of false alarms. In turn, it saves you time and resources while ensuring that genuine threats are identified and dealt with promptly.
Built to withstand harsh environmental conditions, the Eyemax NPT-IR-A9200SL is designed with an IP66-rated housing. This means that it is dust- and water-resistant, making it suitable for outdoor installations.
Additionally, the camera supports both PoE+ and 24VDC power options. This provides you with flexibility and convenience when setting up your surveillance system. Overall, the Eyemax NPT-IR-A9200SL is the perfect camera for applications that require high-performance, detailed surveillance with AI-powered analytics to reduce false alarms.
| Camera | |
|---|---|
| Image Sensor | 1/2.8” STARVIS™ CMOS |
| Pixel | 2MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 4GB |
| RAM | 1GB |
| Electronic Shutter Speed | 1/1 s ~ 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 Lux @ F1.6 B/W: 0.0005 Lux @ F1.6 0 Lux @ F1.6 (IR light on) |
| Illumination Distance | 100 m (328.08 ft) |
| Illuminator On/Off Control | Zoom Prio/Manual/SmartIR |
| Illuminator Number | 6 |
| Lens | |
| Focal Length | 4.8 mm ~ 120 mm |
| Max. Aperture | F1.6 ~ F4.4 |
| Field of View | H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9° |
| Optical Zoom | 25x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.33 ft (10.06 cm)–4.92 ft (1.5 meters) |
| Iris Control | Auto/Manual |
| DORI Distance | Detect: 1613 m (5291.99 ft) Observe: 646 m (2119.42 ft) Recognize: 323 m (1059.71 ft) Identify: 161 m (528.22 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0°–360° (endless) Tilt: -15°–90° (auto flip 180°) |
| Manual Control Speed | Pan: 0.1°–200°/s Tilt: 0.1°–120°/s |
| Preset Speed | Pan: 240°/s Tilt: 200°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Support |
| Power-off Memory | Support |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Protocol | DH-SD Pelco-P/D (auto recognition) |
| General Intelligence | |
| Event Trigger | Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, storage anomaly |
| IVS | Object Abandoned/Missing |
| Artificial Intelligence | |
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| SMD PLUS | Support |
| Face Detection | Support |
| Smart Capture | Support human, motor vehicle, and non-motor vehicle image capture. |
| Video | |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG (sub stream) |
| Streaming Capability | 3 streams |
| Resolution | 1080P (1920 × 1080); 1.3 M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Mainstream: 1080P/1.3 M/720P (1–50/60 fps) Substream 1: D1/CIF (1–25/30 fps) Substream 2: 1080P/1.3M/720P/D1/CIF (1–25/30 fps) |
| Bit Rate Control | Variable/Constant |
| Bit Rate | H.265/H.264: 3 kbps ~ 20480 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Support |
| WDR | 120 dB |
| HLC | Support |
| White Balance | Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Streetlamp |
| Gain Control | Auto/Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Image Stabilization | Electronic |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
| Audio | |
| Compression | G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3 (MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| Interoperability | ONVIF Profile S&G&T; CGI |
| Streaming Method | Uni-cast/Multi-cast |
| User/Host | 19 |
| Storage | NAS; Local PC; Micro SD card (256G) |
| Browser | IE7 and newer versions Chrome 45 and newer versions Firefox 52 and earlier versions Safari (no version restrictions) |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS/Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130 ~ 4 FCC: Part 15, subpart B, ANSI C63.4 ~ 2014 UL: UL62368 ~ 1+CAN/CSA C22.2, No. 62368 ~ 1 |
| Port | |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm I/O | 2/1 |
| Power | |
| Power Supply | DC 12V/3A PoE+ (802.3at) |
| Power Consumption | 13W 22W (IR on) |
| Environment | |
| Operating Temperature | -40°F to +158°F |
| Operating Humidity | ≤95% |
| Protection | IP66; TVS 6000V lightning proof; surge protection |
| Structure | |

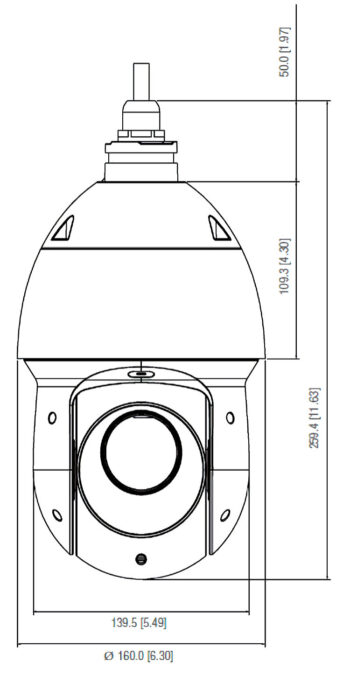

| Dimensions | 6.30 inches (16 cm) × 11.61 inches (29.49 cm) |
| Net Weight | 6.61 lb (3 kg) |
| Gross Weight | 10.58 lb (4.8 kg) |
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 9 × 9 × 13 in |
