-19%

NPT-IR-E4004

Eyemax IR-E4004, a 4MP PTZ camera with advanced features like SMD Plus, WizSense, and AI Series. Enjoy clear, detailed footage day and night with 50ft (15.24 m) IR range and Starlight technology. Perfect for outdoor use with IP66 and IK08 ratings.

NPT-IR-E4004

Original price was: $351.99.Current price is: $283.95.

In stock
0 out of 5

Original price was: $351.99.Current price is: $283.95.

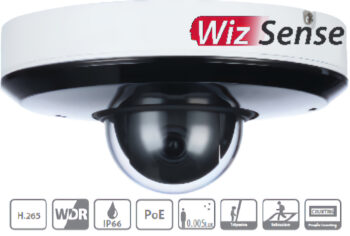

Eyemax IR-E4004 4Megapixel Starlight Outdoor PTZ Camera, 4× Optical Zoom, SMD Plus, True WDR, WizSense, AI Series, IVS.

  • 1/2.8” 4Megapixel STARVIS™ CMOS
  • Starlight technology
  • Max. 25/30 fps@4MP
  • 4&tiems; optical zoom
  • Face Detection, People Counting, Perimeter Protection
  • IR distance up to 50 ft (15.24 m)
  • SMD Plus
  • PoE
  • IP66, IK08
Compare

Description

The Eyemax NPT-IR-E4004 is a high-performing and innovative 4MP Starlight Outdoor PTZ Camera, created for ultimate surveillance and protection. This camera has a 4x optical zoom, SMD Plus technology, and a 50ft (15.24 m) range. With its advanced capabilities and top-notch components, this camera is a must-have for any outdoor surveillance system.

The Eyemax NPT-IR-E4004 has a 1/2.8 4Megapixel STARVIS CMOS sensor and Starlight technology. This allows for 24/7 surveillance without compromising on image quality. With a maximum frame rate of 25/30fps, this camera captures every detail and movement with precision and accuracy.

The Eyemax Camera has SMD Plus technology, which means Smart Motion Detection Plus. This advanced technology not only detects motion but also identifies human and vehicle shapes, reducing false alarms significantly. With this feature, you only get notified when there’s a real danger lurking nearby.

The Eyemax NPT-IR-E4004 has advanced surveillance features, such as face detection, people counting, and perimeter protection. These features make it easier to find and identify potential threats.

The Eyemax Camera has a housing that is IP66 and IK08. The camera is safe and can handle the elements. A single cable is all it takes to set up and power this camera, eliminating the need for additional power sources.

In conclusion, this Eyemax Camera is a high-quality and versatile PTZ camera that offers advanced surveillance and security features. With its 4× optical zoom, Starlight technology, SMD Plus, and various intelligent video analytics, this camera is perfect for outdoor use and is suitable for both residential and commercial settings. So, why settle for anything less when you can have the ultimate outdoor surveillance solution with the Eyemax NPT-IR-E4004?

Datasheet

Download

Eyemax IR-E4004, a 4MP PTZ camera with advanced features like SMD Plus, WizSense, and AI Series. Enjoy clear, detailed footage day and night with 50ft (15.24 m) IR range and Starlight technology. Perfect for outdoor use with IP66 and IK08 ratings Datasheet.

Camera
Image Sensor1/2.8-in. STARVIS™ CMOS.
Effective Pixels2560(H) x 1440(V), 4 MP
RAM/ROM1 GB/4 GB
Scanning SystemProgressive
Electronic Shutter Speed1/1 s to 1/30,000 s
Minimum IlluminationColor: 0.005 lux at F1.8 B/W: 0.0005 lux at F1.8 0 lux at F1.8 (IR on)
IR DistanceDistance up to 49.20 ft (15 m)
IR On/Off ControlZoom Priority, Manual, Smart IR
IR LEDsThree (3)
Lens
Focal Length2.8 mm to 12 mm Varifocal
Maximum ApertureF1.8 to F2.7
Angle of ViewHorizontal: 96.9° to 31.6°
Vertical: 51.4° to 17.8°
Diagonal: 116.2° to 36.4°
Optical Zoom4x
Focus ControlAutomatic, Semi-automatic, Manual
IRIS ControlAutomatic
Close Focus Distance0.66 ft (20.12 cm) to 1.64 ft (49.99 cm)
DORI Distance¹
Detect (8 ppf)Observe (19 ppf)Recognize (38 ppf)Identify (76 ppf)
147.0 m (482.28 ft)192.91 ft (58.8 m)96.46 ft (29.4 m)48.23 ft (14.7 m)
PTZ
Pan/Tilt RangePan: 0° to 355°
Tilt: 5° to 90°
Manual Control SpeedPan: 0.1° to 70° /s
Tilt: 0.1° to 30° /s
Preset SpeedPan: 80° /s
Tilt: 40° /s
Presets300
PTZ Mode8 Tours (up to 32 presets per tour)
Speed SetupHuman-oriented focal Length/speed adaptation
Power up ActionAuto-restore to previous PTZ and lens status after
power failure
Idle MotionActivate Preset/Tour if there is no command in the
specified period
Video
CompressionSmart H.265+, H.265, Smart H.264+, H.264B,
H.264M, H.264H, MJPEG (sub stream only)
Streaming CapabilityThree (3) Streams
Resolution4 MP (2560 × 1440), 3 MP (2048 × 1536),
1080p (1920 × 1080), 1.3 MP (1280 × 960),
720p (1280 × 720), D1 (704 × 480), CIF (352 × 240)
Frame RateMain Stream: 4 MP at 30 fps
Sub Stream 1: D1 or CIF at 30 fps
Sub Stream 2: 720p, D1, or CIF at 30 fps
Bit Rate ControlCBR, VBR
Bit RateH.265/H.264/MJPEG: 3 Kbps to 20480 Kbps
Day/NightAuto (ICR), Color, B/W
Backlight CompensationBLC, HLC, True WDR (120 dB)
White BalanceAuto, Indoor, Outdoor, Track, Manual, Sodium Lamp, Natural Light, Streetlight
Gain ControlAuto, Manual
Noise Reduction2D/3D
Advanced FeaturesMotion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a, G.711Mu, G.726, G.722.1, G.729, G.723, MPEG2-L2
Network
EthernetRJ45 (10/100 Base-T)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
InteroperabilityONVIF, CGI
Streaming MethodUnicast, Multicast
Max. User Access.20 Users
Edge StorageFTP, P2P,
Micro SD Card Slot, maximum 256 GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmartPSS, DSS
Mobile Operating SystemIOS, Android
CybersecurityVideo Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Electromagnetic Compatibility (EMC)EN55032, EN55024, EN50130-4
47 CFR FCC Part 15 Subpart B ANSI C63.4- 2014
Interface
AudioInput: One (1) Channel Output: One (1) Channel
Electrical
Power Supply12 VDC, 1.5 A (±15%) or PoE (IEEE 802.3af, Class 0)
Power ConsumptionBasic: 3 W
Maximum: 8.5 W with IR on
Environmental
Operating Temperature–22° F to +140° F, Less than 95% RH
Ingress ProtectionIP66 Ingress Protection
Vandal ResistanceIK08 Vandal Resistance
Surge ProtectionTVS 6000V
Construction
CasingMetal

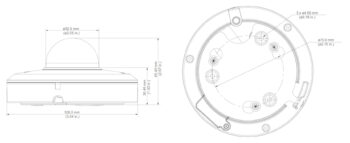

Dimensionsø 5.04 inch (12.8 cm) x 2.57 inch (6.53 cm)
Net Weight1.08 lb (489.88 g)
Gross Weight1.54 lb (698.53 g)
Analytics+ Functions
Perimeter Protection•  Detects human or vehicle violations using the following
methods:
Tripwire: a target crosses a defined line.
Intrusion: a target enters or exits a defined perimeter.
•  Monitors a combination of ten (10) detection methods.
•  Search and retrieve video based on target type.
People Counting•  Delivers accurate flow statistics from the following
methods:
Line Crossing: counts a person as they cross a threshold in a defined direction.
Region: counts the number of people in a defined
area.
•  Counts people simultaneously from four (4) threshold lines and four (4) defined regions.
Smart Motion Detection²•  Differentiates between and classify human and vehicle objects.
•  Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
•  Extracts human or vehicle objects from recorded video for quick target search and retrieval.
Face Detection•  Detects and captures a snapshot of a human face within a scene.
Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features•  Tampering with the camera.
•  Error writing to an onboard Micro SD card.
•  Error sending or receiving data over the network.
•  Unauthorized access to the camera.
•  IP Address Conflict
Premium Features
MotionAn object moves through any part of the scene.
Scene ChangeA person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing ObjectA target leaves an object in a designated area, or a target removes an object from the same designated area.
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the   right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.

2. Pair a Smart Motion Detection camera with a ONVIF recording device that also offers SMD functionality to take advantage of SMD alarm filtering and object classification when searching and playing back recorded video.

Additional information

Weight3 lbs
Dimensions7 × 7 × 4 in
