XNP-C9310R
Original price was: $5,099.99.$2,884.95Current price is: $2,884.95.

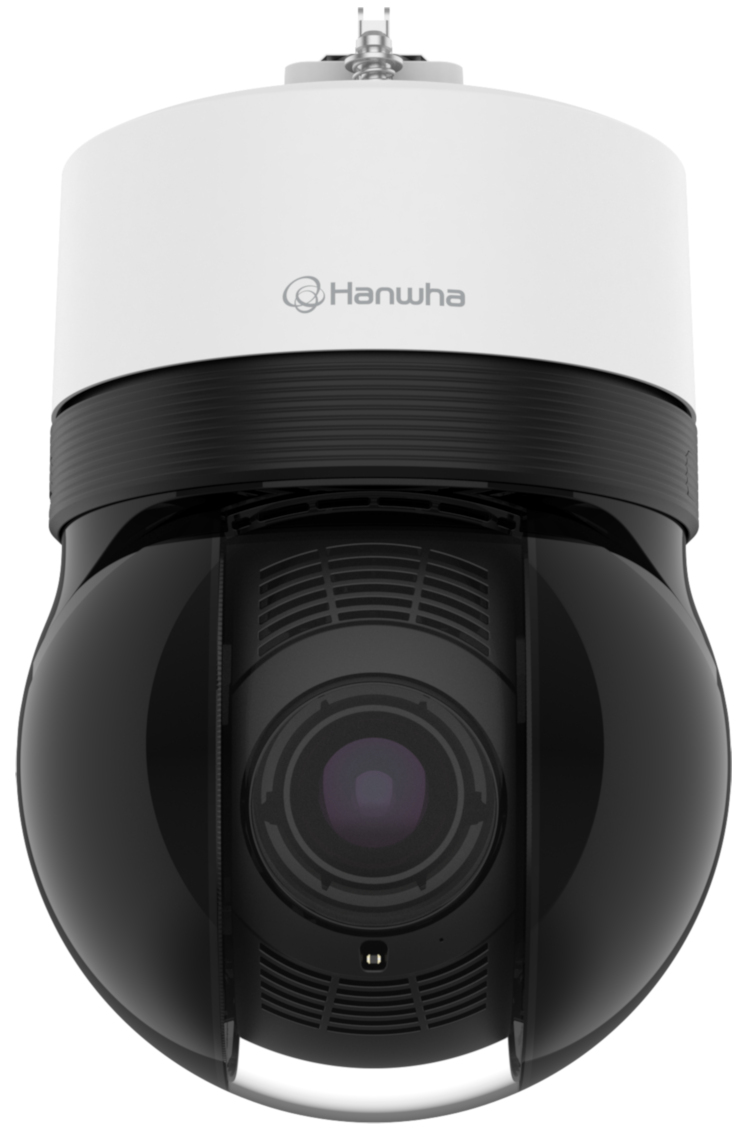

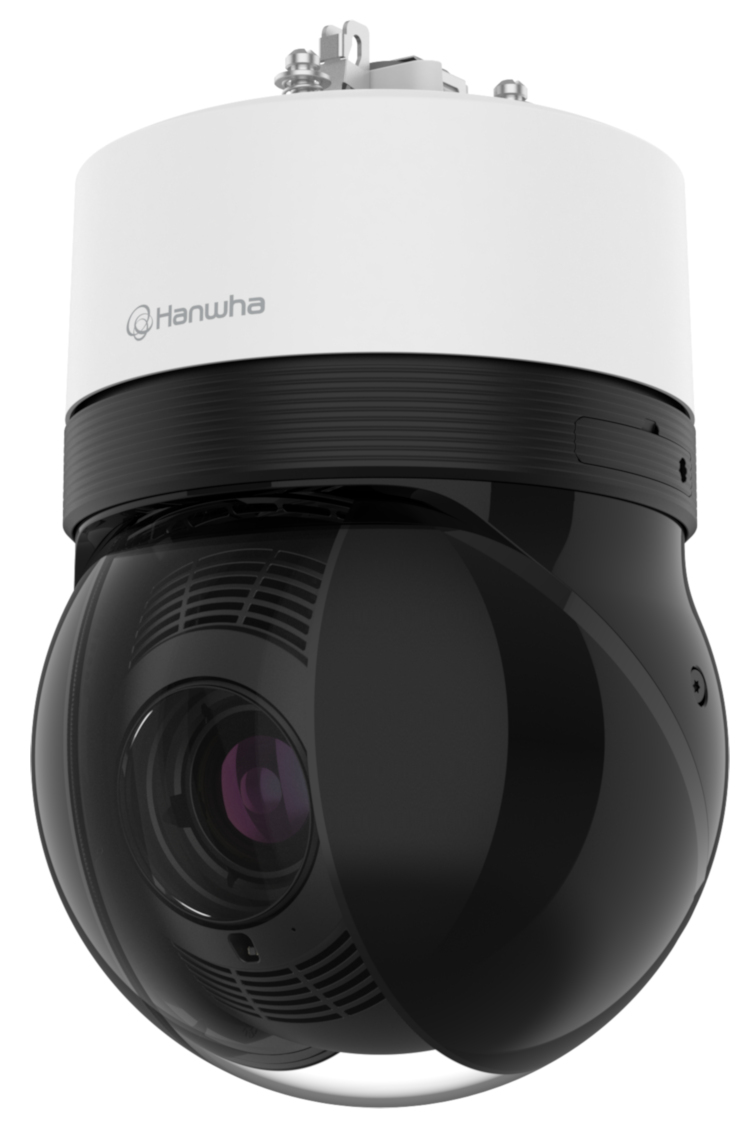

Hanwha Vision XNP-C9310R 8 Megapixel Network PTZ Camera with 31X Lens
- Maximum 4K resolution
- 6.91 ~ 214.7mm(31x) motorized varifocal
- IR viewable length Wise IR 820.21ft (250 m)
- 0.06Lux@F1.36 (Color), 0.006Lux (B/W, IR LED on)
- Day & Night(ICR), WDR(120dB), WiseNRⅡ (Using AI engine), prefer shutter
- H.265, H.264, MJPEG codec, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
- DIS with built-in Gyro sensor
- Reinforced durability (IP66/IP67, IK10, NEMA4X)
- ONVIF Profile S/G/T/M, SUNAPI (HTTP API), Wisenet open platform
- Next-level cybersecurity (TPM with FIPS 140-2 level2)
SKU: XNP-C9310R
EAN: 8801089223142
Categories: Network IP Cameras, PTZ Network IP Cameras
Tags: 1/2.8″ SONY progressive scan CMOS, 3D DNR (3D Digital Noise Reduction), 8 MP Progressive-scan CMOS Sensor, Digital PTZ and multi-view, NDAA Compliant;, Smart H.265+ and Smart H.264+ Dual Codec, WDR (Wide Dynamic Range)- Description
- Attachment
- Specifications
Description
The Hanwha XNP-C9310R 8 Megapixel PTZ network camera delivers exceptional performance and dependability in even the most challenging environments. Both indoor and outdoor applications are possible with it.
The Hanwha XNP-C9310R has a powerful optical zoom that lets you see things clearly from far away. This is great for places like big outdoor areas, parking lots, and warehouses.
The camera’s automatic focus adjustment and P-Iris control make sure that the image quality stays good at all zoom levels. This camera can help you focus on something or see more of what’s around you.
The Hanwha XNP-C9310R has a unique feature called PTZ, which allows for 360-degree monitoring and precise camera movement control. A complete overview of the surveillance zone can be given by the camera’s viewing angle.
This is a good choice for places that need constant attention, like big public places, shopping malls, and factories. An additional layer of security and convenience can be provided by the Hanwha XNP-C9310R’s advanced video analytics capabilities.
The camera can alert users to any suspicious activity, which reduces the risk of theft, vandalism, or other security threats. Moreover, with remote accessibility via a web browser or mobile device, users can easily monitor their surveillance footage anytime, anywhere.
Collsam Security is your reliable source for all Hanwha Vision Products, including the XNP-C9310R PTZ camera. We are committed to providing high-quality security solutions that help our customers keep their assets safe and secure.
You can be sure that you are getting a top-of-the-line surveillance camera with the Hanwha XNP-C9310R. Enhance your security strategy today with Collsam Security and the Hanwha XNP-C9310R PTZ network camera.
| Video | |
| Imaging Device | 1/1.8” CMOS |
| Resolution | 3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Frame rate. | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@8MP Max. 5fps) |
| Min. Illumination | Color: 0.06 Lux(F1.36, 1/30sec, 30 IRE) BW: 0.006 Lux(F1.36, IR LED Off), 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 6.91 ~ 214.7mm(31x) zoom (digital 32x, total 992x zoom) Support Quick zoom |
| Optical Zoom | 31x |
| Max. Aperture Ratio. | F1.36(Wide)~F4.6(Tele) |
| Angular Field of View | H : 60.6°(Wide)~2.59°(Tele) V : 35.1°(Wide)~1.45°(Tele) D : 68.8°(Wide)~2.97°(Tele) |
| Min. Object Distance. | 3m(9.84ft) |
| Focus Control | One-shot AF, Focus save, Focus scan, Wise autofocus |
| Lens Type | P-iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 550°/sec, Manual: 0.024°/sec~200°/sec |
| Tilt Range | 110° (90° ~ -20°) |
| Tilt Speed | Preset: 550°/sec, Manual: 0.024°/sec~200°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.05° (±20°C by temperature at preset setting) |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day and Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support (built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones – Color: Gray/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Off / Max gain / Manual |
| White Balance | ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control (Based on AI engine) |
| Video Rotation | Flip and Mirror |
| Analytics | Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle (Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine – Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Motion detection Analytics events -Tampering, Fog detection, Shock detection, Virtual area (Appear/Disappear) * Audio detection, Sound classification (Via optional I/O box SPM-4210) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input((Via optional I/O box SPM-4210), Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload (image) : e-mail/FTP/SFTP – File upload (video clip): FTP/SFTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – MQTT: publication * Alarm output (Via optional I/O box SPM-4210) |
| Light Type | IR LED (850nm) |
| IR Viewable Length | Wise IR 820ft (249.94 m) |
| Water Removal | Support (Spin dry, Lens heater) |
| Auto-Tracking | Support Object auto-tracking (Person/Vehicle) Target lock tracking |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast (20 users) / Multicast Multiple streaming (Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI (HTTP API) Hanwha Vision Open Platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authentication, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (Websocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Vision Root CA) |
| Secure Storage | TPM (Trusted platform module), HTPM(Hanwha trusted platform module), SD card partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB (512MBx2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental and Electrical | |
| Operating Temperature / Humidity | Normal : -58 °F (-50 °C) ~ 131 °F (55 °C)/+165 °F (73.89 °C)(Max) based on NEMA TS-2(2.2.7) * Start up should be done at above -22.00 °F (-30 °C) 0~100%RH (Condensing) Humidity control /w AIR vent |
| Storage Temperature / Humidity | -58 °F (-50 °C) ~140 °F (60 °C) / 0~90% RH |
| Certification | IP66/IP67, IK10, NEMA4X Safety(UL, KC-SDOC), EMC(FCC, CE, VCCI, RCM, KC) NEMA-TS 2(2.2.7, 2.2.8, 2.2.9) |
| Input Voltage | HPoE(IEEE802.3bt type4, Class8, Injector included) |
| Power Consumption | HPoE: Max 62W, typical 23W |
| Mechanical | |
| Color / Material | Body : White / Aluminum Head : Black / Polycarbonate Hard-coated dome |
| RAL Code | White: RAL9003 / Black: RAL9005 |
| Product Dimensions | ø 7.40 inches (18.8 cm) x 10.47 inch (26.59 cm) |
| Weight | 9.70lb (4.4 kg) |
| Hanging Mount (Dome) | SBP-156HMW |
| Ceiling Mount (Assy) | SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI |
| Wall Mount | SBP-156WMW, SBP-390WMW2 |
| Pole Mount | SBP-300PMW2 |
| Parapet Mount | SBP-156LMW, SBP-300LMW |
| Corner Mount | SBP-156KMW, SBP-300KMW1 |
| Cabinet | SBP-300NBW |
| Certifications and Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9) NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 431.19ft (131.43 m) / Tele: 11146.16ft (3,397.35 m) |
| Observe (63PPM/ 19PPF) | Wide: 172.48ft (52.57 m) / Tele: 4458.46ft (1,358.94 m) |
| Recognize (125PPM/ 38PPF) | Wide: 86.24ft (26.29 m) / Tele: 2229.23ft (679.47 m) |
| Identify (250PPM/ 76PPF) | Wide: 43.12ft (13.14 m) / Tele: 1114.62ft (339.74 m) |
