XNV-9083RZ
Original price was: $2,049.99.$1,219.95Current price is: $1,219.95.
Hanwha XNV-9083RZ 8MP Outdoor Network PTRZ Dome Camera with Night Vision
- 4K resolution
- 4.4~9.3mm (2.1x) motorized Varifocal
- Remote lens adjustment with PTRZ
- Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 30 fps (H.265/H.264)
- IR viewable length: 49.21ft (15 m), 98.43ft (30 m) based on scene
- Day & Night (ICR), extremeWDR (120 dB)
- Hard-coated dome bubble
- WiseNR (Based on AI engine), WiseStream III (Based on AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
- Audio detection, Sound classification, Shock detection, Appear/Disappear
- IP66/IP67/IP6K9K, NEMA4X, IK10+, FIPS 140-2
- Operating temperature: -58 °F (-50 °C) ~ 131 °F (55 °C)
- Power: PoE+/12VDC, Metal shielded RJ-45
- Description
- Product Documents
- specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Hanwha XNV-9083RZ 8MP Network PTRZ Dome Camera is a great video camera with numerous features. This camera captures 4K UHD video at a smooth 30 frames per second. This ensures that every detail is captured with stunning clarity, making it an ideal choice for monitoring high-security areas.
The Hanwha XNV-9083RZ camera has an infrared LED that can see up to 98 feet (29.87 meters). This lets the camera keep watching even when it’s dark, so it can watch everything all day without losing quality. The camera also has a 4.4-9.3 mm motorized varifocal lens that covers 113 to 47° horizontally.
The Hanwha XNV-9083RZ camera can pan, tilt, and rotate from 0 to 350°. It also has a 2.1x optical zoom, enabling you to zoom in on specific areas for a closer look. This makes it an excellent choice for monitoring areas that require detailed surveillance, such as parking lots, warehouses, and schools.
The Hanwha XNV-9083RZ camera has dual card slots that can hold up to 512 GB of microSD/SDHC/SDXC cards. This can save up to 1TB of video footage, which is a lot of space. Furthermore, the camera has PoE technology that makes connecting things easier by sending data and power through one cable. This makes installing it easy and fast.
The Hanwha XNV-9083RZ 8MP Network PTRZ camera is also highly versatile. This makes it compatible with a wide range of surveillance devices. Moreover, the camera is housed in an IP69K-, NEMA 4X, and IK10-rated aluminum enclosure, making it suitable for outdoor use in areas at risk of vandalism. This ensures that your camera is well-protected and can withstand harsh weather conditions, making it a reliable and durable choice for all your surveillance needs.
| Video | |
| Imaging Device | 1/1.8” progressive CMOS |
| Resolution | 3840×2160, 3328×1872, 3072×1728, 2592×1944, 2688×1520, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Frame rate. | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F1.3, 1/30sec, 30IRE) BW: 0.003Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.4~9.3mm(2.1x) motorized varifocal |
| Max. Aperture Ratio. | F1.3(Wide) ~ F2.15(Tele) |
| Angular Field of View | H: 113° (Wide)~47° (Tele) V: 58° (Wide)~26° (Tele) D: 138° (Wide)~54° (Tele) |
| Min. Object Distance. | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P-iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200 cycles) 0°~350° / 0°~85° / 0°~340° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day and Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR (120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color : Gray, Green, Red, Blue, Black, White – Mosaic |
| Gain Control | Off / Max Gain / Manual |
| White Balance | ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support (Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Prefer / Anti flicker (2~1/12,000sec) Auto-Prefer shutter control (Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle (Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on an AI engine – Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit) Analytics events – Defocus detection, Motion detection, Tampering, Fog detection, Virtual area (Appear/Disappear) * Audio detection, Sound classification (with NW I/O box SPM-4210) |
| Alarm Triggers | Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle (Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on an AI engine – Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit) Analytics events – Defocus detection, Motion detection, Tampering, Fog detection, Virtual area (Appear/Disappear) * Audio detection, Sound classification (with NW I/O box SPM-4210) |
| Alarm Events | When alarm trigger occurred – File upload (image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Alarm output (with NW I/O box SPM-4210) – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) |
| IR Viewable Length | 49.21ft (15 m) 98.43ft (30 m) based on scene |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast (20 users) / Multicast Multiple streaming (Up to 10 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI (HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental and Electrical | |
| Operating Temperature / Humidity | -58 °F (-50 °C) ~ 131 °F (55 °C) 165 °F (73.89 °C) (Max) based on NEMA TS-2(2.2.7) * Start up should be done at above -22 °F (-30 °C) 0~95%RH(non-condensing) Humidity control /w AIR vent |
| Storage Temperature / Humidity | -58 °F (-50 °C) ~ 140 °F (60 °C) / Less than 90% RH |
| Certification | IP66/IP67/IP6K9K, NEMA4X, IK10+ |
| Input Voltage | PoE+(IEEE802.3at type 2, Class4) |
| Power Consumption | PoE+: Max 22.5W, typical 12.1W |
| Mechanical | |
| Color / Material | White / Aluminum Hard-coated dome bubble |
| RAL Code | RAL9003 |

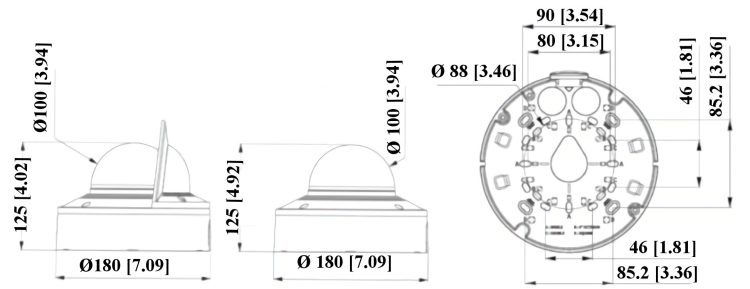

| Product Dimensions | Ø 7.09 inches (18.01 cm) x 5.31 inch (13.49 cm), |
| Weight | 4.41 lb (2 kg) |
| Compatible Conduit hole / Gangbox | 19.1mm(3/4”)(M25) single, double, 4″ octagon, 4″ square |
| Hanging Mount (Dome) | SBP-187HMW |
| Certifications & Standards | |
| EMC | EN 50121-4 FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471 |
| Environment | EN IEC 63000 IEC 60529 IP66/IP67, ISO 20653 IP6K9K, IEC 62262 IK10+ NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 166.77ft (50.83 m) / Tele: 579.49ft (176.63 m) |
| Observe (63PPM/ 19PPF) | Wide: 66.71ft (20.33 m) / Tele: 231.80ft (70.65 m) |
| Recognize (125PPM/ 38PPF) | Wide: 33.35ft (10.17 m) / Tele: 115.90ft (35.33 m) |
| Identify (250PPM/ 76PPF) | Wide: 16.68ft (5.08 m) / Tele: 57.95ft (17.66 m) |
