NVR516-S
Price range: $1,499.95 through $1,799.95
UNIVIEW NVR516-S 32 or 64 Channel IP Video Input, 12 Megapixels Resolution Recording, 16 SATA RAID Up to 10 TB Each 24 Alarm In 8 Out 100-240V AC Power
- ONVIF Conformance Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
- TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS Protocols
- 2 Chanel HDMI
- 1 Chanel VGA
- HDMI up to 4K (3840×2160) Resolution
- HDMI1, HDMI2, and VGA Independent Outputs
- Decoding Cards Optional
- Up to 12 Chanel HDMI
- HDD Hot Swap
- RAID 0, 1, 5, 6, 10, 50, 60 Storage Schemes Configurable
- 16 SATA hard drives, up to 10 TB for each
- N+1 Hot Spare
- 12V Power Output Redundant Power Supply Optional
- ANR Technology to Enhance Storage Reliability
- Support Cloud Upgrade
- Complies with Section 889 of the NDAA
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The UNIVIEW NVR516-S is a powerful and reliable Network Video Recorder designed to provide superior video quality. With support for Ultra 265/H.265/H.264 video formats, this NVR will meet the needs of even the most demanding surveillance applications.
For monitoring a wide range of IP cameras, the NVR516-S is equipped with 32 or 64 IP video inputs and supports third-party cameras with ONVIF conformance profiles. The protocol also supports several network protocols, such as TCP/IP, P2P, UPnP, NTP, DHCP, and PPPoE. Plus, two decoding cards are available, allowing users to connect to 12 HDMI channels.
This device features dual HDMI and one VGA independent outputs for flexible configurations. Moreover, it supports up to 4K (3840×2160) resolution for the HDMI1 and HDMI2 ports. Its 16 SATA hard drives support up to 10 TB per disk, with N+1 hot spare for additional reliability. Additionally, the 12V power output and 100-240V AC power consumption of 50W make it suitable for any security system.
The UNIVIEW NVR516-S is a good choice for any surveillance system because it can be upgraded to the cloud and uses ANR technology to keep the data safe. Use RAID storage schemes, such as RAID 0, 1, 5, 6, 10, 50, and 60, to keep the recordings safe. Furthermore, redundant power supply is also available as an option.
In conclusion, the UNIVIEW NVR516-S Network Video Recorder provides an all-in-one solution for secure and reliable video recording. It has an impressive range of features, including support for up to 12 Megapixels resolution, dual HDMI output, multiple RAID levels, and the ability to support up to 32 IP cameras. This powerful and reliable NVR will ensure that all of your surveillance needs are met.
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | NVR516‑32S:4 x 12MP@20, 4 x 4K@30, 16 x 1080P@30, 32 x 720P@30 NVR516‑64S:4 x 12MP@20, 4 x 4K@30, 16 x 1080P@30, 36 x 720P@30, 64 x D1 |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 320Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6 |
| Browser (Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above) |
| Video/Audio Input | |
| IP Video Input | 32 Channel NVR516‑32S 64 Channel NVR516‑64S |
| BNC Audio Input | 1‑ch |
| Video/Audio Output | |
| HDMI Output | HDMI1/HDMI2(HDMI audio output is not supported):4K (3840×2160)/30Hz, 1920×1080p/60Hz, 1920×1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA Output | VGA:1920×1080p/60Hz, 1920×1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| BNC Audio Output | 1‑ch |
| Liveview Display | NVR516‑32S:1/4/6/8/9/16/25/32 NVR516‑64S:VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | |
| Two-way Audio | 1‑ch, BNC (Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/Event Snapshot | NVR516‑32S:32‑ch snapshot, up to 4K resolution NVR516‑64S:64‑ch snapshot, up to 4K resolution |
| Recording | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16‑ch |
| Smart | |
| VCA Detection by IPC | Face Detection;Vehicle Detection;SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke, and Fire Detection);People Counting (People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring |
| VCA Search | Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report |
| Smart by IPC | NVR516‑32S:All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring NVR516‑64S:All channels (up to 32 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Alarm | |
| General Alarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| Alert Alarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;High CPU Temperature;High Motherboard Temperature;Array Damaged;Array Degraded |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 16 SATA Interfaces |
| Capacity | Up to 16TB for each HDD (the maximum HDD capacity varies with environment temperature) |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot Swap | Support |

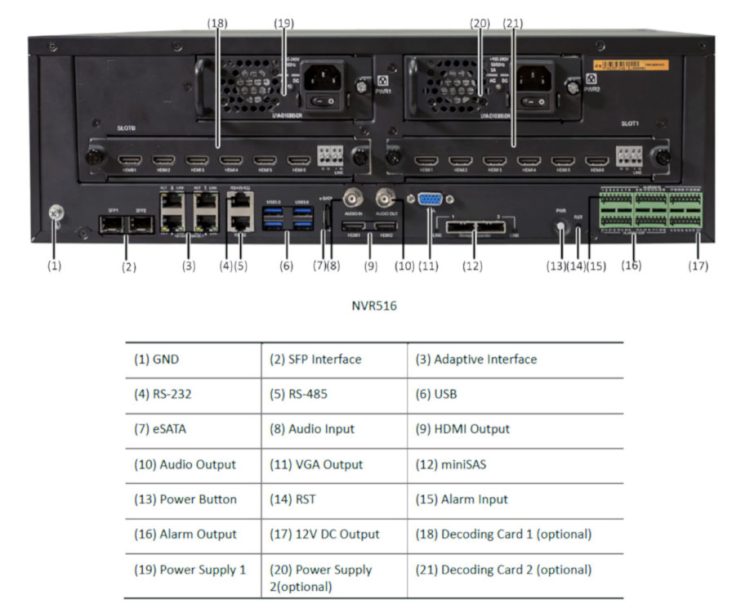

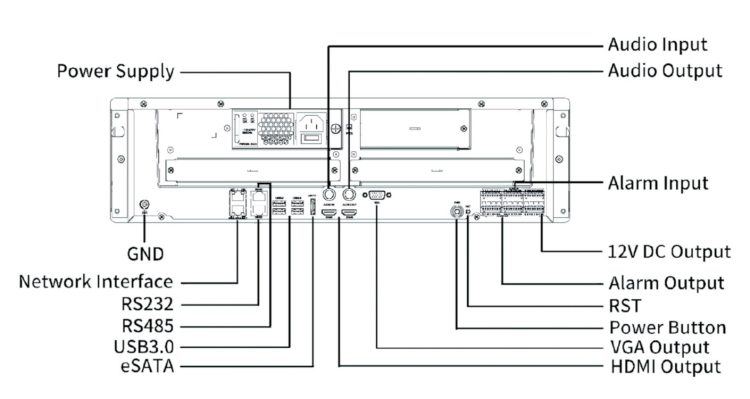

| External Interface | |
| Network Interface | 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Rear panel: 4 x USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 24‑ch |
| Alarm Out | 8‑ch |
| eSATA | 1 |
| Power Output | 12V |
| Power Supply | AC 100 ～ 240 V |
| Power Switch | Support |
| Working Environment | |
| Working Temperature | 14 °F (-10 °C) ~ 131 °F (55 °C) |
| Working Humidity | ≤ 90% RH (non‑condensing) |
| Power Consumption (without HDD) | ≤ 50W |
| Weight and Dimensions | |
| Weight (without HDD) | 22.05 lb (10 kg) |

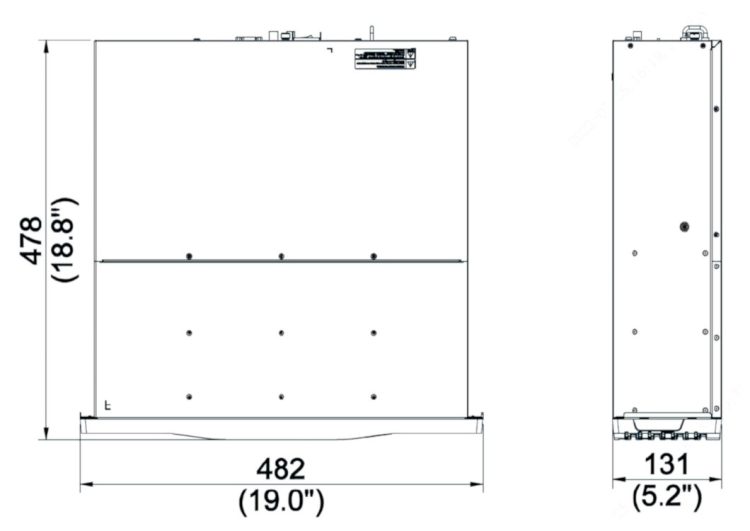

| Dimensions | 19.0 inches (48.26 cm) × 18.8 inches (47.75 cm) × 5.2 inches (13.21 cm) |
| Certification | |
| Certification | CE;FCC;UL;RoHS;WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part 15 Subpart B |
Additional information
| Weight | 25 lbs |
|---|---|
| Dimensions | 22 × 21 × 7 in |
| Camera Capacity | 32 Camera's, 64 Camera's |
