Upgrade your video decoding capabilities with the Uniview DC55XX-E-V2 Decode high-quality video in multiple formats and display it on a video wall or large screen with ease. Get yours now!

DC55XX-E-V2

0 out of 5

Price range: $2,071.20 through $3,247.20

Uniview DC55XX-E-V2 High-Definition Video Decoder

Provide 4/6/10 HDMI output interfaces
2 HDMI input interfaces
Up to 3840×2160@60Hz via HDMI output interfaces
Up to 1920×1080@60Hz via HDMI input interfaces
Up to decoding at 8MP resolution
Model Specifications
- DC5504-E-V2 4-ch@4K/16-ch@1080P/36-ch@720P/64-ch@D1 decoding ability
- DC5506-E-V2 6-ch@4K/24-ch@1080P/54-ch@720P/96-ch@D1 decoding ability
- DC5510-E-V2 10-ch@4K/40-ch@1080P/90-ch@720P/160-ch@D1 decoding ability
H.265/ H.264/ MPEG4/ MPEG2/ MJPEG decoding
1/2/3/4/6/7/9/16 display split
Standard ONVIF video stream support
Up to 4/6/10 video-wall display units

Uniview security cameras and NVR systems are available at Collsam Security

SKU: DC55XX-E-V2 Categories: Accessories, Encoder and Decoder Tags: 4/6/10 HDMI Interfaces, 8mp Resolution, H.265 H.264 Mpeg4 Mpeg2 MJPEG, Multicast, NDAA Compliant;, ONVIF, Uniview, Video Decoder, Video-Wall 4/6/10 Display Units

Description
Product Documents
Specifications
Additional information
Collsam Brands

Description

High-definition video decoder designed to meet the demands of modern video streaming is the Uniview DC55XX-E-V2. H.265, H.264, MPEG4, MPEG2, and MJPEG are some formats this powerful decoder can handle. Whether you’re streaming live video or playing back pre-recorded footage, the Uniview DC55XX-E-V2 guarantees crystal-clear images and vibrant hues.

One of the standout features of the Uniview DC55XX-E-V2 is its multiple HDMI output interfaces. This decoder can output 4, 6, or 10 HDMI signals. This makes it perfect for a wide range of applications, from small-scale video playback to large-scale video walls and displays. With the ability to connect multiple screens, users can choose how to split and display their video.

The Uniview Decoder’s ability to decode video at up to 8MP resolution ensures that you’ll always get top-notch video playback. The decoder can handle any type of video, whether it’s from a good camera or a bad one. This is a good choice for places where video quality is critical, like watching things or having fun.

The Uniview DC55XX-E-V2 has 2 HDMI input interfaces, so users can connect multiple video sources to the decoder. This allows for simultaneous playback of multiple videos, providing users with a more comprehensive and dynamic viewing experience. You can use the inputs to switch between different sources during events or presentations.

Overall, the Uniview DC55XX-E-V2 is a versatile and powerful video decoder that is perfect for a wide range of applications. With its ability to decode multiple video formats, support for high resolutions, and multiple HDMI input and output interfaces, it offers unmatched flexibility and quality for video playback. So whether you are looking to create a stunning video wall or simply want to display video on a large screen, the Uniview Decoder is the perfect choice for all your video decoding needs.

Datasheet

Download

Uniview DC5504-06-10-E-V2 High-Definition Video Decoder Provides up to 4,6, or 10 HDMI Output Interfaces 2 HDMI input interfaces, and up to 8MP resolution decoding. Supports 4-ch@4K 16-ch@1080P 36 Datasheet.

Model	DC5504-E-V2	DC5506-E-V2	DC5510-E-V2
Video Output
Output channel	4	6	10
HDMI output	3840×2160(4K)@60HZ、3840×2160(4K)@30HZ、1920×1080(1080P)@60HZ、1600×1200(UXGA)@60HZ、 1440×900(WXGA+)@60HZ、1280×1024(SXGA)@60HZ、1280×720(720P)@60HZ、1024×768(XGA)@60HZ
Video input
Input channel	2×HDMI
HDMI input	1920×1080(1080P)@60HZ、1920×1080(1080P)@50HZ、1600×1200(UXGA)@60HZ、1440×900(WXGA)@60HZ、1280×1024(SXGA)@60HZ、1280×720(720P)@60HZ、1280×720(720P)@50HZ、1024×768(XGA)@60HZ
Video Decoding
Video Stream Format	H.265, H.264, MPEG4, MPEG2, MJPEG
Decoding Capability	4×3840×2160@30、16×1080P@30, 36×720P@30、64xD1	6×3840×2160@30、24×1080P@30、 54×720P@30、96xD1	10×3840×2160@30、40×1080P@30、90×720P@30、160xD1
Display split	1/2/3/4/6/7/9/16
External Interface
Audio Input	2-ch (Reservation)
Audio Output	1-ch (3.5mm)
Alarm Input	6 (Reservation)
Alarm Output	3 (Reservation)
USB Interface	1×USB 3.0
Serial Interface	1×RS-232, 1×RS485
Network Interface	1×RJ-45, 10M/100M/1000M adaptive Ethernet Interfaces
General

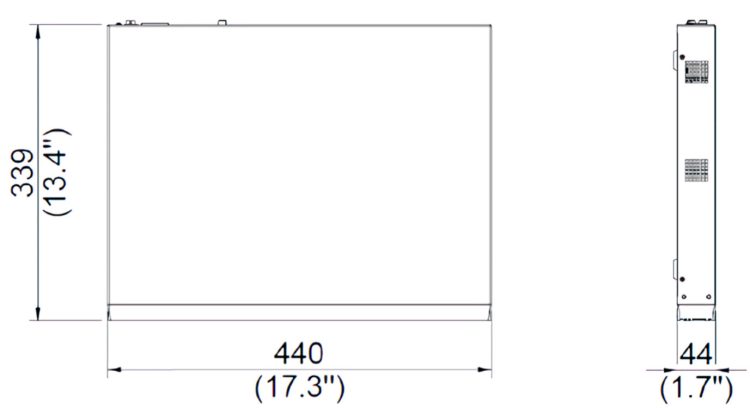

Dimensions(W× H×D)	13.4 inches (34.04 cm) x 17.3 inch (43.94 cm) x 1.7 inch (4.32 cm)
Weight	7.23 lb (3.28 kg)	7.28 lb (3.3 kg)	7.43 lb (3.37 kg)
Working Temperature	-10 °F (-23.33 °C) ~ 131 °F (55 °C)
Working Humidity	10% ~ 90%(No-condensing)
Power Supply	100V ~ 240V AC; 50Hz/60Hz
Consumption	20W	24W	31W

Additional information

Weight	10 lbs
Dimensions	15 × 19 × 2 in
Camera Capacity	4 Cameras, 6 Camers, 10 Cameras
