SPD-152
Original price was: $850.00.$552.50Current price is: $552.50.
- Clone and Expand mode support (HDMI#1 UHD, HDMI#2 FHD)
- Maximum 64 channels (HDMI 1 Clone mode), 36 (HDMI 1), 25 (HDMI 2) Expand mode
- Maximum decoding performance 8MP@60fps, 2MP@360fps
- ONVIF, SUNAPI, RTSP cameras supported
- Freely adjust camera size to highlight important areas (Tile merge)
- H.265, H.264, MJPEG codec support
- Up to 20 layouts and sequence
- Fisheye dewarping, PTZ Controls, thermal camera temperature check, save snapshot to USB drive
- Management using USB mouse or web interface

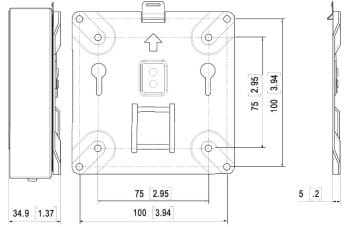

- Easy installation with included VESA monitor-back mount or pole mount with optional pole straps
- PoE and DC 12V Dual power for Power Redundancy Failover
- NDAA and FCC Compliant
- Description
- Attachment
- Specifications
- Additional information
Description
The Hanwha SPD-152 is a top-of-the-line network video decoder that is perfect for advanced monitoring stations. This decoder can decode video and audio from up to 64 cameras and is easy-to-use. Monitoring is easier and there is no need for a separate workstation. This makes it a good choice for security professionals and businesses alike.
The Hanwha SPD-152 has two displays that can display all 64 camera feeds. The maximum decoding speed is 8M at 60 frames per second. This makes it an ideal choice for situations where real-time monitoring is crucial.
The Hanwha SPD-152 also has a 10/100/1000BASE-T Ethernet port, which makes it easy to connect to the network. This means that the decoder can handle a lot of information easily, making it ideally suited for high-risk surveillance tasks. There are two HDMI video outputs that support up to 4K video and 1080p without audio. This provides the flexibility to connect to different types of displays and resolutions.
The Hanwha SPD-152 can handle heavy data loads without losing any performance. Its embedded Linux CPU ensures a reliable and effective operation. If you buy Hanwha from Collsam.com, you will get a good product that will do everything you need for surveillance. Any advanced monitoring station requires the Hanwha SPD-152 network video decoder, which is reliable and powerful.
System | ||
CPU | Embedded CPU | |
Operating System | Embedded Linux | |
Video Output | HDMI#1 | 1EA (up-to 4K), Audio support |
HDMI#2 | 1EA (up-to 1080p), Audio not supported | |
Video-out Format | 3840 X 2160@30Hz (HDMI#1)\n2560 X 1440@30Hz (HDMI#1)\n1920 X 1080@60Hz (HDMI#1, HDMI#2)\n1280 X 1024@60Hz (HDMI#1, HDMI#2)\n1280 X 720@60Hz (HDMI#1, HDMI#2) | |
External | Ethernet | 1EA (10/100/1000BASE-T) |
USB | 2EA(USB 2.0) | |
LED | Power, Network | |
Network | Bandwidth | Max. 150Mbps |
Environmental | ||
Operating Temperature | 32℉ (0 °C) ~ 104 °F (40 °C) | |
Operating Humidity | 20% ~ 85% RH | |
Electrical | ||
Power Input | 12VDC, PoE (IEEE802.3af) | |
Power Consumption | Max. 11.0W (12V DC), Max. 12.95W (PoE) | |
Mechanical | ||
Color / Material | Black / Metal and Plastic | |

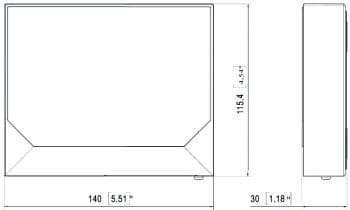

Dimension (W × H × D) | 5.51 inches (14 cm) × 1.16 inch (2.95 cm) × 4.54 inch (11.53 cm) | |
Weight | 0.57 lb (ca. 259 g) | |
Software | ||
Video | Codec | H.265 / H.264 / MJPEG |
Max. Decoding Performance. | 8M@60fps, 2M@360fps | |
Division (/Monitor) | ■ Clone mode\n (HDMI#1) Max. 64\n■ Expand mode\n (HDMI#1) Max. 36 (HDMI#2) Max. 25 | |
Layout | Up to 20, Sequence support | |
Audio | Codec | G.711 / G.726 / AAC |
Management | Local UI, Web-Viewer | |
Time Setting | NTP/Manual | |
Export/Import | Configuration Export/Import | |
Log | Max. 100,000 (System log) | |
Protocol | RTP, RTSP, HTTP, CGI (SUNAPI), ONVIF | |
Security | IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware |
Additional information
Weight | 2 lbs |
---|---|
Dimensions | 7 × 3 × 6 in |
