-10%

R-MPA

Upgrade your security system with the Luminys R-MPA All-Metal Keypad. Featuring Mifare card reading, tamper alarm, and multiple communication protocols.

R-MPA

Original price was: $199.99.Current price is: $179.98.

In stock

Original price was: $199.99.Current price is: $179.98.

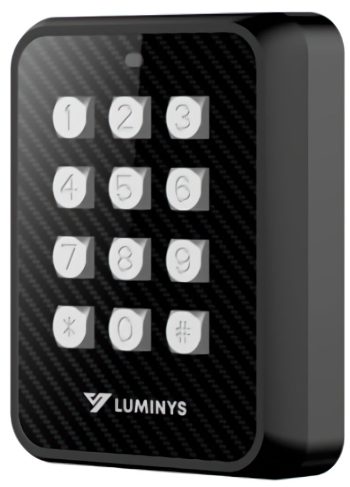

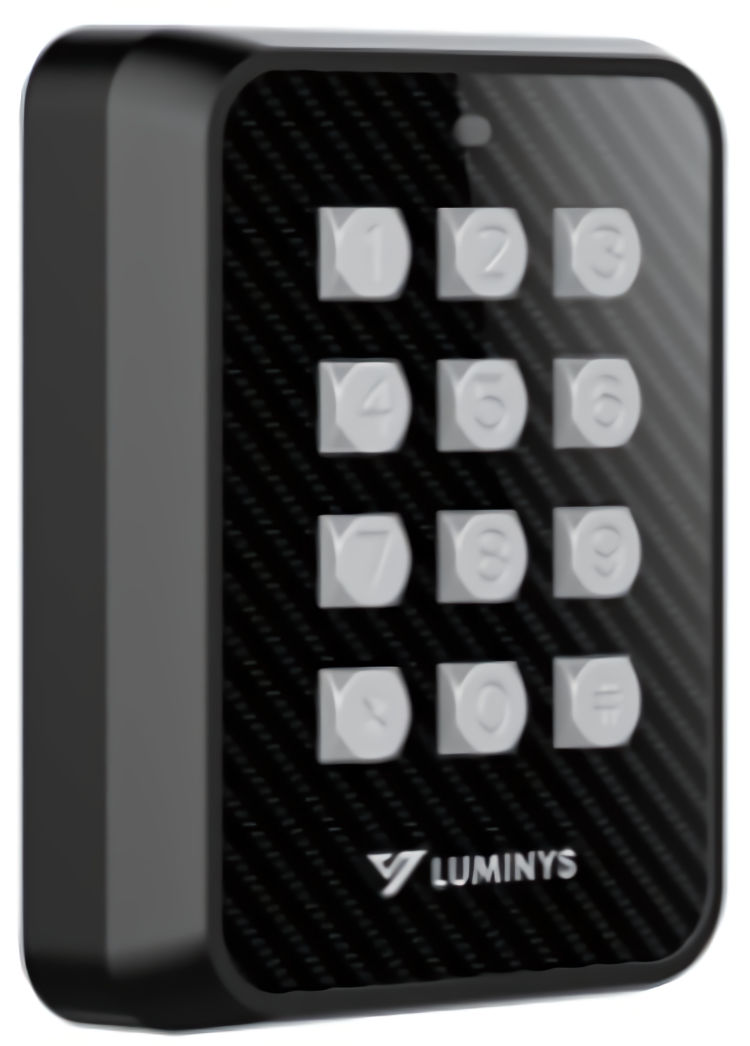

Luminys R-MPA Vandal-proof Keypad Access Reader

  • All-Metal Keypad with Indicator Light and Buzzer
  • Supporting MIFARE (IC) Cards Reading and Password Unlocking Method
  • Supports PIN and MIFARE (IC) Card Access Methods
  • IK08 Impact Resistance
  • IP66 Ingress Protection
  • Supports RS-485 and Wiegand Communication Protocols
  • Equipped with Anti-Tampering Alarm
  • Supports Surface and Flush Mounting
  • All-Metal Keypad with Indicator Light and buzzer
Luminys connected security solutions brand logo

Description

Welcome to the Luminys R-MPA All-Metal Keypad, the best access control system on the market. Its purpose is to keep your home or business safe. This advanced keypad boasts an all-metal construction, ensuring durability and longevity for long-term use. Its design includes a light and a buzzer to help detect and notify of intrusion attempts.

You can pick the method that works best for you since the Luminys R-MPA keypad can read both Mifare (IC) cards and passwords. Users can get into areas without using traditional locks or keys thanks to the Mifare (IC) card reading feature. Instead, they can just swipe their cards. But password unlocking is safer because users have to enter a special code to get in.

With an IK08 certification and extensive testing, this keypad is resistant to outside impact and tampering attempts. Furthermore, the Luminys R-MPA has a tamper alarm that goes off when the system detects unauthorized access or tampering. You can sleep easy at night knowing that your property is always safe thanks to this extra security measure.

A lot of different access control systems can talk to the R-MPA keypad because it supports both Wiegand and RS-485. This allows for seamless integration into your existing security infrastructure, saving you time and money on installation and maintenance expenses.

In summary, the Luminys Systems Corporation R-MPA All-Metal Keypad is a highly secure, durable, and versatile access control system. The product has an IK08 rating, a tamper alarm, and the ability to read Mifare (IC) cards and unlock them with a password.

Additionally, it features an indicator light and buzzer, and it is compatible with the RS-485 and Wiegand communication protocols. It is the perfect solution for any property or business looking for top-notch security. Choose the R-MPA keypad and experience the ultimate peace of mind in access control.

System
Card TypeIC (MIFARE)
Frequency Range13.56 MHz
Maximum Transmission Power42 dBm at 10 m
Verification MethodCard, Password
Response Time0.1 s
Card Reading Distance0.0 inches (0 cm)to 1.2 inches (3.05 cm)
BacklightBuilt-In
Interface
RS-485One (1) Channel
WiegandOne (1) Output Channel
Alarm
EventTamper
Electrical
Power Supply9-15 VDC, 100 mA
Power Consumption• Standby: ≤ 0.9 W

• Working: ≤ 1.0 W

Construction
Net Weight1.1 lb (0.5 kg)
Gross Weight1.2 lb (0.54 kg)

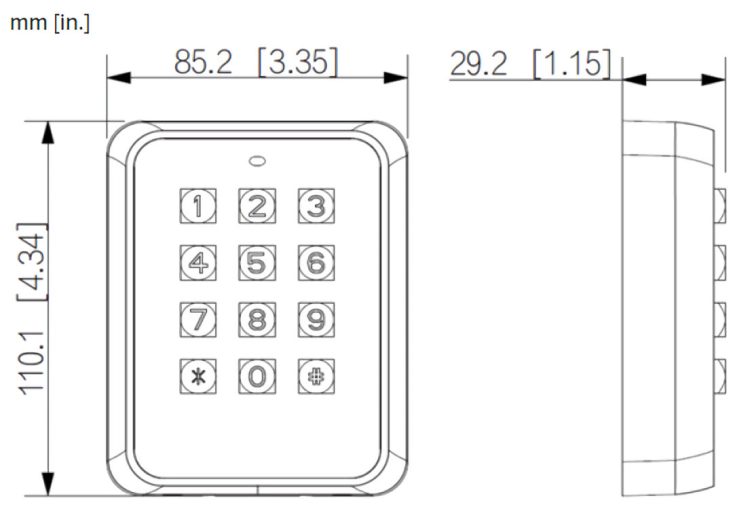

Product Dimensions (L × W × H)4.33 inches (11 cm) x 3.35 inch (8.51 cm) x 1.02 inch (2.59 cm)
Package Dimensions (L × W × H)6.0 inches (15.24 cm) × 5.7 inch (14.48 cm) × 3.0 inch (7.62 cm)
Operating Temperature14 °F (-10 °C) to 131 °F (55 °C) 0% to 95% (RH), Non-Condensing
Protection RatingsIK08
MaterialZinc Alloy
Installation Method86 Case Mount, Surface Mount

Datasheet

Download

Upgrade your security system with the Luminys R-MPA All-Metal Keypad. Featuring Mifare card reading, tamper alarm, and multiple communication protocols Datasheet.

Additional information

Weight2 lbs
Dimensions7 × 6 × 4 in

Brand

Luminys Systems Corporation

Luminys Systems Corporation provides professional security technology for commercial, industrial, educational, retail, healthcare, and remote monitoring applications. Its portfolio includes network security cameras, network video recorders, cloud video surveillance, and mobile solar security solutions.Network security cameras support intelligent monitoring, high-resolution video, low-light performance, and advanced analytics. Network video recorders provide centralized recording, storage, playback, and management for surveillance systems of different sizes.Cloud video surveillance supports remote access, centralized management, alerts, playback, and flexible video storage. Mobile solar security supports temporary and off-grid surveillance at construction sites, parking areas, utilities, events, and other remote locations.Luminys Systems Corporation also provides access control, video management, networking, and connected security technologies. These products are available from Collsam Security for professional surveillance and remote monitoring projects.
