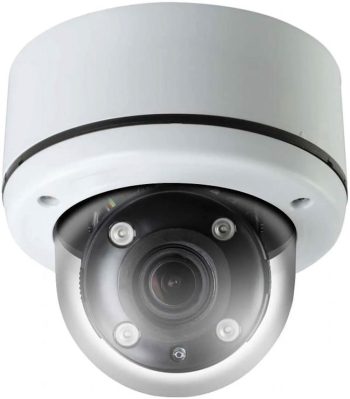

Upgrade your security with the Eyemax TIV-MB5332V-W HD-TVI 5 Megapixel IR Vandal Dome Camera. 4-in-1 support, 115 ft (35.05 m) IR distance, and 2.8~12 mm motorized lens.
Upgrade your security with the Eyemax TIV-MB5332V-W HD-TVI 5 Megapixel IR Vandal Dome Camera. 4-in-1 support, 115 ft (35.05 m) IR distance, and 2.8~12 mm motorized lens.

TIV-MB5332V-W

Upgrade your security with the Eyemax TIV-MB5332V-W HD-TVI 5 Megapixel IR Vandal Dome Camera. 4-in-1 support, 115 ft (35.05 m) IR distance, and 2.8~12 mm motorized lens.

TIV-MB5332V-W

Original price was: $136.99.Current price is: $87.95.

In stock
0 out of 5

Original price was: $136.99.Current price is: $87.95.

Eyemax TIV MB5332V-W HD-TVI 5MP IR Vandal DOME Camera 2.8-12 mm Motorized, 4 COB IR LED 12V DC

  • 1/2.5” 5 Megapixel Sensor
  • TVI up to 5MP@20fps, default output TVI 4M@30fps (Switchable)
  • TVI/CVI/AHD/CVBS 4-IN-1
  • 2.8~12 mmmegapixel motorized lens
  • IR Cut Filter, 2DDNR
  • 4 white power COB LEDs 115ft(35m) IR Distance
  • Support UTC function
  • toggle cable
Eyemax security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security
SKU: TIV-MB5332V-W Categories: , Tags: , , , , , , , , ,

Description

With its cutting-edge HD-TVI 5MP IR Vandal Dome Camera, the Eyemax TIV-MB5332V-W is sure to improve your security system. With a ½.5” 5-Megapixel Sensor, this camera captures high-quality images and videos that are crystal clear and razor sharp. The camera was designed to function effectively in any weather conditions, including rain and cold.

Equipped with TVI up to 5MP@20fps, the Eyemax TIV-MB5332V-W ensures a high frame rate for smooth and fluid footage. Additionally, it offers a default output of TVI 4M@30fps, which is switchable for your convenience. The camera is also capable of supporting four formats simultaneously: TVI, CVI, AHD, and CVBS. This capability allows for the integration with a wide range of security systems.

One of the standout features of the Eyemax TIV-MB5332V-W is its 2.8~12 mm 5-Megapixel Motorized Lens. This cutting-edge lens makes installation and setup simple by offering a wider viewing angle and remote focus adjustment. With its four white power COB LEDs and 115-foot (35.05-meter) infrared range, this camera is always usable.

The IR cut filter on the Eyemax TIV-MB5332V-W lets you see bright colors during the day. At night, it can switch to black and white mode to make things less bright. It also features 2DDNR technology that eliminates noise and provides clear images, even in low light. The camera also has a UTC function support and a toggle cable for easy control and customization of settings.

The Eyemax TIV-MB5332V-W is made to withstand harsh weather conditions in terms of durability. Because of its IP67 rating, this camera is suitable for both indoor and outdoor use. Even in high-risk areas, it will endure because it is designed to be difficult to damage.

In conclusion, the Eyemax TIV-MB5332V-W is a high-performance HD-TVI 5MP IR Vandal Dome Camera that offers exceptional quality and reliability. With its 5-Megapixel Sensor, 4-in-1 support, and strong IR range, it is the best choice for any security system. With its durable design and easy installation, the TIV-MB5332V-W is the perfect solution for all your surveillance needs.

Datasheet

Download

Upgrade your security with the Eyemax TIV-MB5332V-W HD-TVI 5 Megapixel IR Vandal Dome Camera. 4-in-1 support, 115 ft (35.05 m) IR distance, and 2.8~12 mm motorized lens Datasheet.

Image Sensor1/2.5” 5 Megapixel Sensor
Effective Pixels5.0 Megapixels
Built-in Lens2.8 ~ 12 mm Varifocal 5 Megapixel Lens
Signal SystemPAL/NTSC
Horizontal ResolutionNTSC: 2560 × 1440P (30F/S 4MP output/ 2560 × 1944 (20F/S 5MP output)
PAL: 2560 × 1440P (25F/S 4MP output) / 2560 × 1944 (20F/S 5MP output)
Sync. SystemInternal Sync.
Video OutputTVI &CVI&AHD& CVBS Output
S/N RatioMore than 50dB (AGC OFF)
DNR2D
OSD MenuSupport
UTCSupport by UTC
White BalanceAuto Tracking White Balance
Shutter Speed1/25 ~ 50,000 Sec.
Weather-proofIP67
Protection LevelIP67
Working Temperature14 °F (-10 °C) ~ 122 °F (50 °C)
Storage Temperature-4 °F (-20 °C) ~ 140 °F (60 °C)
Power RequirementDC12V, Max Power consumption Less Than 3W (When the infrared lamps turn on)
Weight1.76 lb (0.8 kg)
