TVST-TR2908A

Eyemax TR-2908A 8-channel 1080p hybrid DVR front view

TVST-TR2908A

In stock

Eyemax TVST-TR2908A 8-Channel 1080p Hybrid DVR

  • 8-channel video surveillance recorder
  • 1080p recording capability
  • Hybrid CCTV DVR support
  • Front-panel numeric keypad
  • Local playback and menu controls
  • Status indicators for system monitoring
  • Directional navigation controls
  • Front USB connection
  • Compact DVR enclosure
  • Suitable for residential and commercial surveillance systems
Eyemax video surveillance brand logo

This product is no longer available.

Description

The Eyemax TVST-TR2908A is an 8-channel hybrid CCTV DVR built for home and business security systems. This 8-channel video recorder provides 1080p recording and central control for multiple security cameras. In addition, this 1080p surveillance DVR works well for new systems and compatible upgrades.

The 8-channel security DVR supports up to eight compatible camera channels. Therefore, it works well for homes, offices, stores, warehouses, and other sites that need several cameras. It also provides detailed 1080p video for live viewing, playback, and recorded video review.

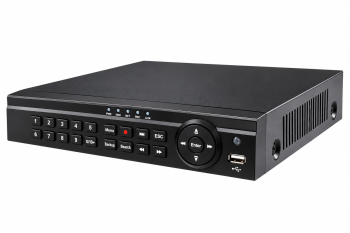

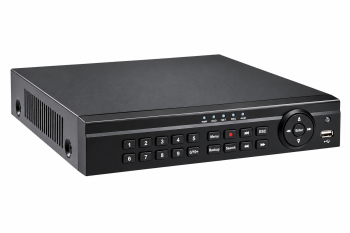

The front control panel gives users quick access to common DVR functions. For example, it includes a numeric keypad, status lights, menu buttons, playback controls, directional controls, and a USB connection. As a result, users can reach important functions directly from the recorder.

The 8-channel hybrid CCTV DVR uses a compact desktop enclosure for easy placement within a security system. In addition, ventilation openings help maintain normal airflow. Meanwhile, the organized front panel makes the controls easy to find and use.

This 1080p surveillance DVR can act as the main recording unit for a compatible multi-camera security system. Furthermore, the 8-channel video recorder provides a practical option for upgrading an existing CCTV system or building a new installation.

Overall, the Eyemax TVST-TR2908A 8-channel security DVR combines eight-camera support, 1080p recording, hybrid system support, and easy local controls. Therefore, it provides a practical recording solution for homes, stores, offices, warehouses, and other business security applications.

Datasheet

Download

Telpix TVST-TR2908A DVRs. Connect Analog, AHD, And IP Cameras Simultaneously For 8 Channel Recording and Playback Datasheet. Trust Collsam Distribution for all your Telpix needs.

Owner's Manual

Download

Telpix TVST-TR2908A DVRs. Connect Analog, AHD, And IP Cameras Simultaneously For 8 Channel Recording and Playback Owner’s Manual. Trust Collsam Distribution for all your Telpix needs.

Video Input / Resolution8 CH (BNC) / 1080P
IP Cam InputIPC x1/6MPS
OutputVGA x 1: 1080P
HDMI x 1:1080P
BNC x 1: 1080P(CVBS or SPOT)
Multi-OperationPentaplex: Live Display / Record / Playback / Backup / Remote Access
OSEmbedded Linux
Recording720P (1280 × 720), 1080P Lite (960×1080), 1080P (1920X 1080)
Recording (720P)200fps: 25fps per channel
Recording (1080P Lite)200fps: 25fps per channel
Recording (1080P)100fps: 12fps per channel
Audio inRCA x 4
Two-Way AudioYes
Mic inNo
Audio outRCA x 1
Bit Rate768Kbps ~ 8Mbps
EncodeVBR / CBR
Quality Levels6 levels
Recording ModesManual, Timer, Motion, Sensor
File ManagementLock, Unlock, Reserving time, Redundancy
Local Playback8 CH
SearchTime, Motion, Sensor, Single or Multi-channel
FunctionPlay, Pause, FF, FB, Shutter Control, Jog, Digital zoom
Alarm ModesSensor, Motion, Video loss
Alarm TriggeringRecord, PTZ move, relay out, e-mail, etc
Network InterfaceRJ45 x 1
Remote Playback4CH
Master Steam4CH
Dual-streamIndividual network video stream and local recording stream, set seperately
PTZ ProtocolPelco D, Pelco P, RANGE, VISCA, DSCP, VIDO, STAR, NEON, MINKING, LILIN
ProtocolTCP/IP, UDP, DHCP, DNS, PPoE, DDNS, SMTP, NAT, HTTP
Remote ViewingCMS / Web Browser / Mobile (iOS/Android)
Remote Users10 users online, dual stream
SATA HDDUp to 6TB (1 x 6TB)
Alarm in4
Alarm out1
RS485RS485 x1 (for PTZ or Keyboard)
USBUSB 2.0 × 2 (for mouse and USB backup device)
AccessoryRemote controller, SATA cable, USB mouse
Power SupplyDC: 12V
Working Environment14°F (-10 °C) ~ 122°F (50°C), 10% ~ 90% (Humidity)
Dimension10 inches (ca. 25 cm) × 8.27 inches (ca. 21 cm) × 1.65 inches (ca. 4 cm)

Additional information

Weight12 lbs
Dimensions16 × 9 × 2 in
