TVST-TR5708

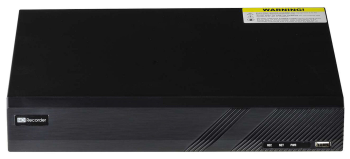

TVST-TR5708 TR series 5708 | 8Ch TVI, AHD, CVI, Analog, IP Hybrid DVR System, H.265, up to 5MP, 8Ch Audio, HDMI, × SATA Front View

TVST-TR5708

In stock

Eyemax TVST-TR5708 TR series 5708 | 8Chanel TVI, AHD, CVI, Analog, IP Hybrid DVR System, H.265, up to 5MP, 8Ch Audio, HDMI, 1 and time,

  • 8 CH TVI / AHD/CVI 5MP / 4MP / 1080P / 720P / WD1 video input
  • 8 CH DVRs default support 4 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
  • Adopt standard H.265 high-profile compression format to get high-quality
  • video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse
  • Multimode recording: manual / timed / motion /AI recording
  • Playback : 8 CH simultaneously playback
  • Search: time slice, time, event (manual, motion), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
  • Support remote network transmission and remote surveillance with mobile device Multi-user online simultaneously
  • Authorization management, log review and device status review
  • 1080P output, true high-resolution display
  • Support PTZ preset and auto-cruise, up to 255 presets and 8 cruises
  • Support NAT function and QR Code scanning by mobile phones
  • Powerful mobile surveillance by smartphones with iOS and Android OS
TVST-TD2708-N5 8Channel Penta-brid DVR System, H.265, 5MP TVI AHD CVI IP Camera and Analog Angel
Replacement Product
Give us a call (951) 282-8707 to help you find a replacement, Please

Compare

Description

Experience the power of advanced surveillance technology with the Eyemax TVST-TR5708 8 CH 5MP Lite high-definition DVRs. These top-of-the-line DVRs are designed to provide high-quality, real-time recording for all your surveillance needs. Whether you need to monitor your home, office, or business premises, the Eyemax TVST-TR5708 is the perfect choice for you.

The Eyemax TVST-TR5708 has a remarkable ability to connect both analog and digital cameras simultaneously. You can use traditional analog cameras and modern IP cameras to make a surveillance system that meets all your needs. With this feature, you can easily upgrade your existing surveillance system without the need for expensive equipment or complicated configurations.

The Eyemax TVST-TR5708 also adopts the standard H.265 high-profile compression format, which allows for more efficient video compression and storage. This means you can store more footage without compromising on the quality of the video. Furthermore, these DVRs use a special technique called SOC that records everything in real-time. This means you won’t miss important information even when there is a lot of traffic.

To further enhance the robustness of the system, the Eyemax TVST-TR5708 uses the most advanced technology available. This ensures that the DVR is stable, reliable, and can withstand any external factors that may affect its performance. If your surveillance system is strong enough, it will work well and give you good footage all the time.

At Collsam Distribution, we are proud to be your source for all Eyemax products. With Eyemax DVRs, cameras, and accessories, you can make a complete surveillance system for your home or business. Our goal is to provide our clients with top-notch products that are durable and easy to use. The Eyemax TVST-TR5708 8 CH 5MP Lite high-definition DVR from Eyemax is available from Collsam Distribution.

Datasheet

Download

TVST-TR5708 TR series 5708 | 8Ch TVI, AHD, CVI, Analog, IP Hybrid DVR System, H.265, up to 5MP, 8Ch Audio, HDMI, × SATA Datasheet

Video
Analog Video InputBNC × 8
BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live)
IP Video Input4CH
Up to 5MP@30fps
Total Input12CH
OutputHDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
BNC × 1 : CVBS (used as the main or spot output)
CompressionH.264 / H.265
Multiscreen Display1 / 4 / 6 / 8 / 9 / 13 / 16
Audio
InputRCA × 8
OutputRCA × 1 (linear, 600Ω)
Two-way audioTake up channel one audio input
CompressionG.711(U/A)
Record
Resolution5MP Lite / 4MP Lite / 1080P / 1080P Lite / 720P / WD1 / D1
Frame Rate (Analog Channel)5MP Lite@10fps (PAL / NTSC)
4MP Lite / 1080P@12fps(PAL) / 15fps (NTSC)
1080P Lite / 720P / WD1 / D1@25fps (PAL) / 30fps (NTSC)
Frame Rate (IP Channel)25fps (PAL) / 30fps (NTSC)
Bit Rate32Kbps ~ 4Mbps
ModeManual, timer, motion, smart event
Playback
Playback8CH
SearchTime slice / time / event / tag search
Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
FunctionPlay, Pause, FF, FB, Digital Zoom, etc.
Alarm
ModeManual, Motion, Exception, Smart event
Input8CH
Output2CH
Network
InterfaceRJ45 100Mbps × 1
ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, SMTP
Incoming Bandwidth32Mbps
Outgoing Bandwidth60Mbps
Client ConnectionMax. 5 users access
Mobile Device
OSiOS, Android
Storage
HDDSATA × 1, up to 10TB; E-SATA×1
Backup
Local BackupU disk, USB mobile HDD
Network BackupYes
Port
RS 485Yes (half-duplex), connect to PTZ or keyboard
USBUSB 2.0 × 2
Others
Power SupplyDC12V / 3A
Consumption≤ 10W (without HDD)
Dimensions11.81 inch (30 cm) (W) × 9.80 inch (24.89 cm) (D) × 1.77 inch (4.5 cm)(H)
Working Environment-14 °F (-25.56 °C) ~ 122 °F (50 °C), 10% ~ 90% (humidity)
CertificateCE, FCC
Environmental ProtectionDirective EU RoHS, WEEE, REACH

Additional information

Weight15 lbs
Dimensions18 × 10 × 4 in
Hard Drive

No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive
