-42%

XNP-C9253R

Hanwha XNP-C9253R network surveillance camera. Robust design, intelligent features, and advanced lens system make it the ideal choice for outdoor surveillance. Get crystal-clear images and secure data transmission. From Collsam Security.

XNP-C9253R

Original price was: $5,130.00.Current price is: $2,973.95.

In stock

Original price was: $5,130.00.Current price is: $2,973.95.

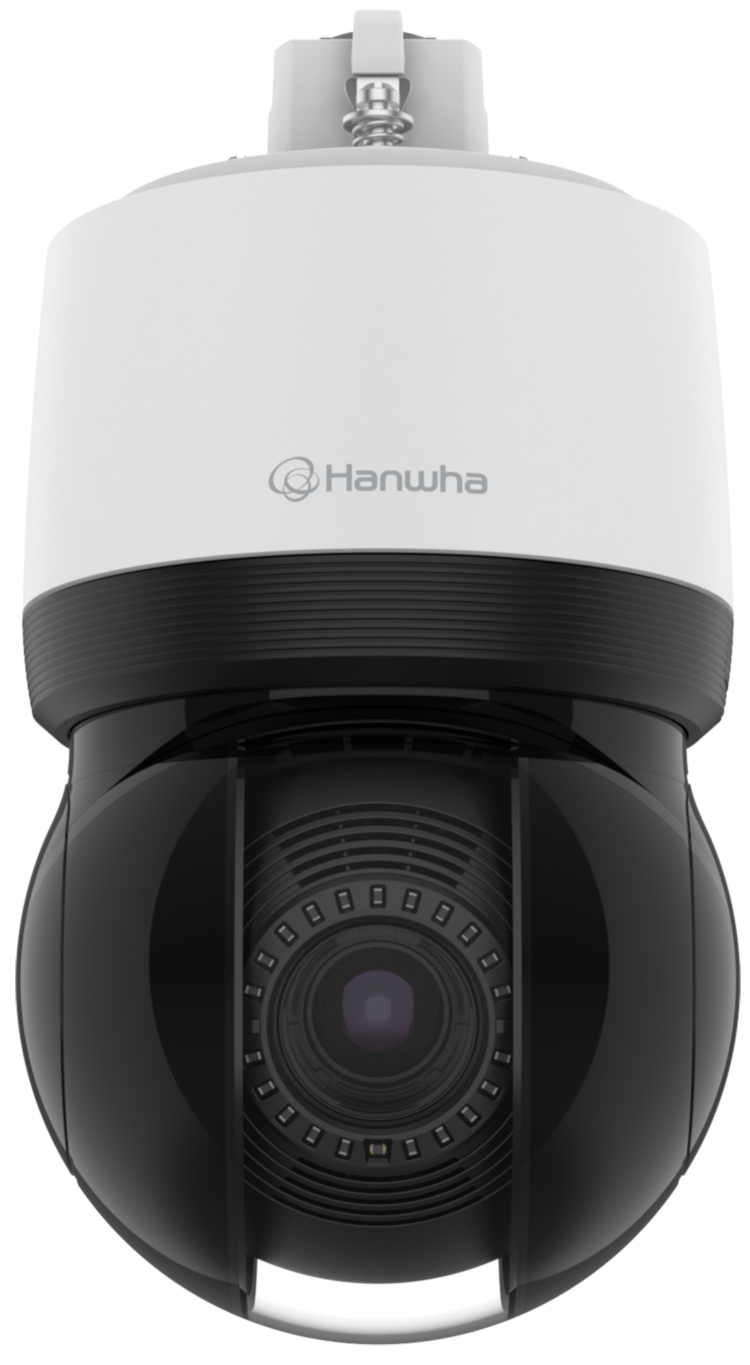

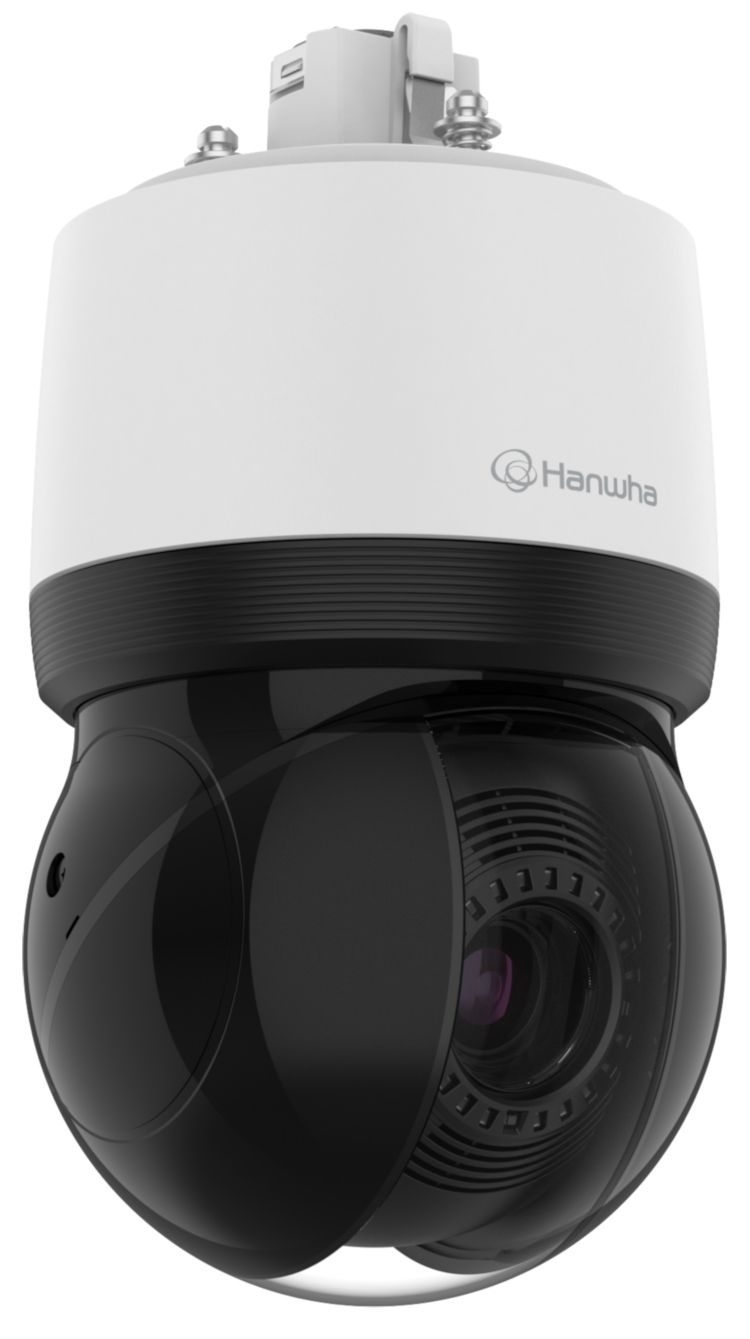

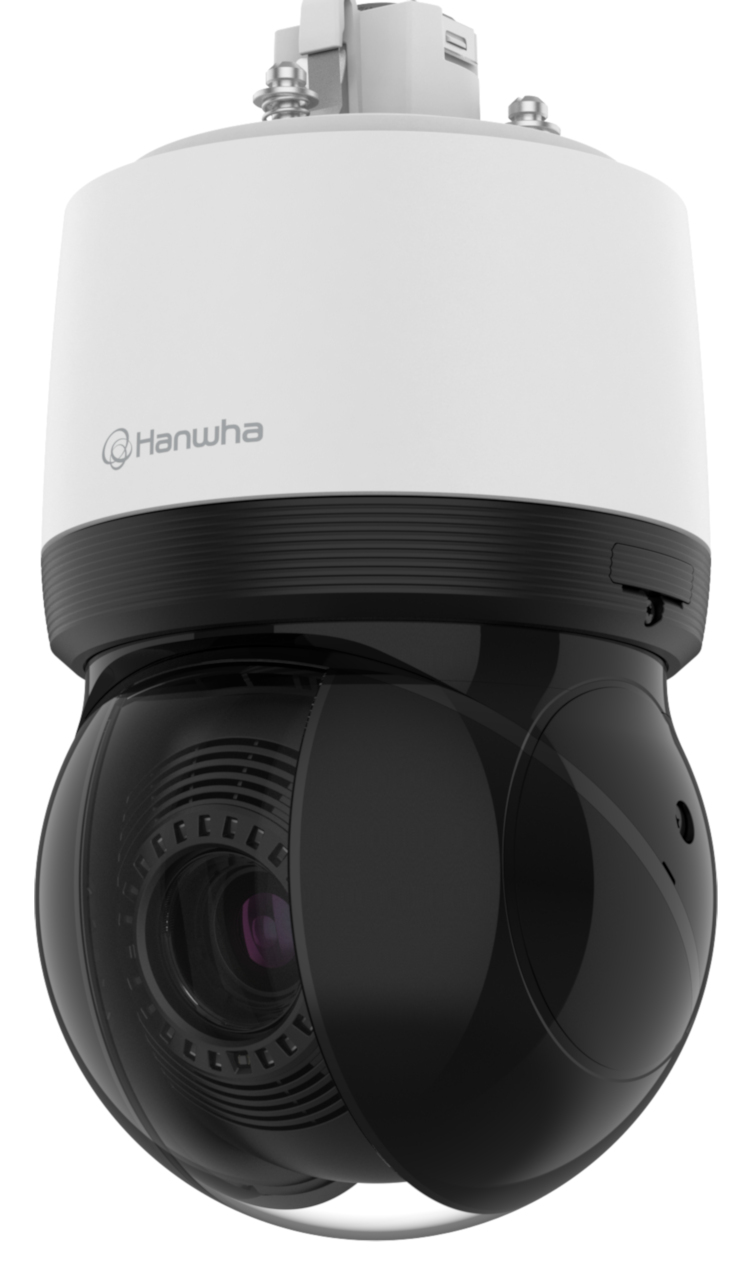

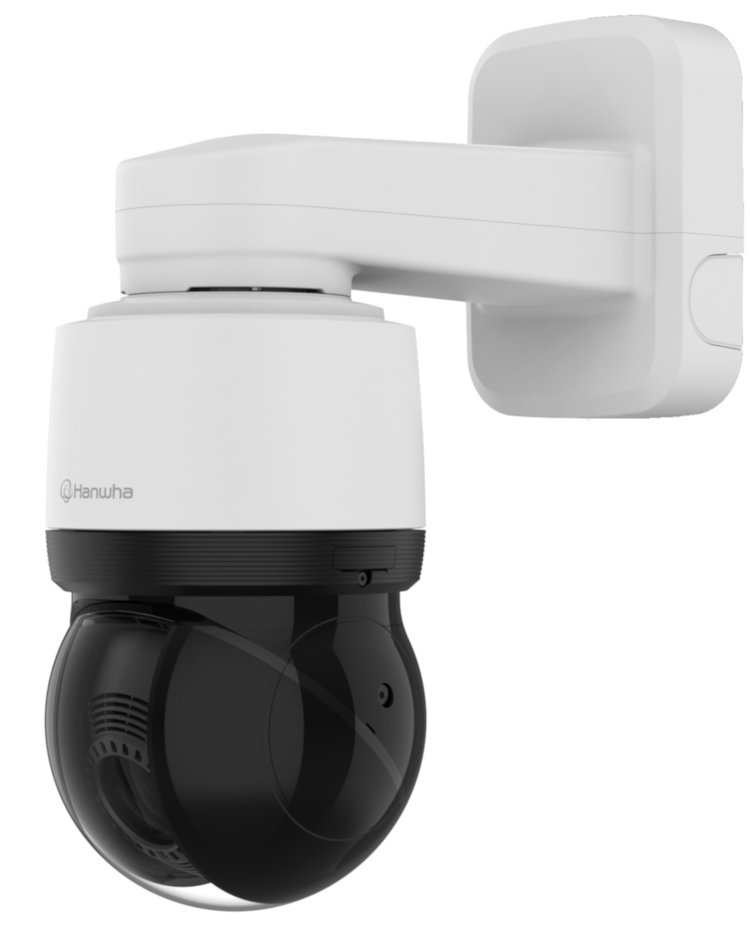

Hanwha XNP-C9253R 8 Megapixel 25x AI PTZ Camera with 5-125mm Lens

  • 4K resolution
  • 25X optical zoom 5mm ~ 125mm
  • IR viewable length : 656ft (199.95 m)
  • -20° tilt look-up capability to see above the horizon
  • Spin dry for water removal
  • 360° endless pan
  • Triple codec H.265/H.264/MJPEG
  • WiseStream III technology
  • Extreme WDR
  • Azimuth display (cardinal and intermediate directions)
  • AI-based object auto-tracking (person, vehicle), target lock tracking, intelligent video analytics
  • Analytics events based on AI engine
    • Object detection
      • Person
      • Face
      • Vehicle
      • License plate
    • IVA (Virtual line)
      • Area
      • Enter and Exit
      • Loitering
      • Direction
      • intrusion
    • Analytics events
      • Defocus detection
      • Motion detection
      • Tampering
      • Fog detection
      • Audio detection
      • Sound classification (with NW I/O box)
      • Object auto-tracking
        • Person
        • Vehicle
      • Target lock track
  • True DNR
  • Dual SD card slots
  • DIS with Built-in Gyro sensor
  • HPoE (IEEE802.3bt, Class 6, Type 3, Injector included)
  • IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) and 2.2.9 (Shock)
  • Optional SPM-4210 Network I/O box for alarm and audio I/O
  • TPM 2.0 with FIPS 140-2 level 2
Hanwha Vision, LogoCollsam Security NDAA

Description

The Hanwha XNP-C9253R network surveillance camera is a reliable and high-performance solution for monitoring outdoor environments. Equipped with a high-definition 1/2.8” CMOS sensor with 8 million total pixels, the XNP-C9253R delivers clear and detailed images in resolutions up to 3840×2160.

This ensures that you can capture any activity or event in crisp detail, making it an excellent choice for security purposes. Additionally, the camera’s advanced lens system with a 25x optical zoom and motorized focus allows for accurate monitoring over large areas, providing you with a comprehensive surveillance solution.

The XNP-C9253R is packed with intelligent features that further enhance its performance. These include Extreme WDR, Defog, and WiseIR, which work together to ensure optimal image quality under any lighting conditions. Whether it’s a bright sunny day or a foggy night, this camera can capture clear and detailed footage, making it a reliable choice for all your surveillance needs.

In addition to its exceptional image quality and intelligent features, the XNP-C9253R also offers advanced surveillance capabilities. Its motion, face, and intrusion detection functionalities, combined with 300 preset positions, allow for comprehensive coverage of a wide area. This makes it an ideal solution for monitoring large outdoor spaces such as parking lots, shopping centers, and industrial sites.

The Hanwha XNP-C9253R also prioritizes security, with compliance to stringent standards such as FIPS 140-2 Level 2 and NDAA. This ensures secure data transmission and protects against cyber threats, providing you with peace of mind when it comes to the security of your footage. Additionally, the camera supports advanced video compression formats such as H.265, which offers efficient storage solutions, saving you time and money.

The Hanwha XNP-C9253R is a durable, high-performance, and secure solution for all your outdoor surveillance needs, brought to you by Collsam Security.

Datasheet

Download

Hanwha XNP-C9253R network surveillance camera. Robust design, intelligent features, and advanced lens system make it the ideal choice for outdoor surveillance. Get crystal-clear images and secure data transmission Datasheet. From Collsam Security.

User's Manual

Download

Hanwha XNP-C9253R network surveillance camera. Robust design, intelligent features, and advanced lens system make it the ideal choice for outdoor surveillance. Get crystal-clear images and secure data transmission User's Manual. From Collsam Security.

Quick Guide

Download

Hanwha XNP-C9253R network surveillance camera. Robust design, intelligent features, and advanced lens system make it the ideal choice for outdoor surveillance. Get crystal-clear images and secure data transmission Quick Guide. From Collsam Security.

Online Help

Download

Hanwha XNP-C9253R network surveillance camera. Robust design, intelligent features, and advanced lens system make it the ideal choice for outdoor surveillance. Get crystal-clear images and secure data transmission Online Help. From Collsam Security.

Video
Imaging Device1/2.8” CMOS
Resolution3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Frame rate.H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@8MP Max. 5fps)
Min. IlluminationColor: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On)
Lens
Focal Length (Zoom Ratio)5~125mm(25x) zoom (digital 32x, total 800x zoom)
Optical Zoom25x
Max. Aperture RatioF1.6(Wide)~F3.73(Tele)F1.6(Wide)~F3.73(Tele)
Angular Field of ViewH: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele)
Min. Object Distance.5m(16.4ft)
Focus ControlOne-shot AF, Focus save
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan Range360° Endless
Pan SpeedMax. 700°/sec, Manual: 0.024°/sec~250°/sec
Tilt Range110°(90°~-20°)
Tilt SpeedMax. 500°/sec, Manual: 0.024°/sec~250°/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset AccuracyUp to ±0.1°, Pan/Tilt correction
Operational
Camera TitleDisplayed up to 85 characters
Direction IndicatorSupport
Day and NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic RangeExtreme WDR(120dB)
Digital Noise ReductionWiseNRⅡ (Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport (built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8-point polygonal zones
Privacy Masking32ea, 4-point Quadrangle zones

  • Color: Gray/Green/Red/Blue/Black/White
  • Mosaic
Gain ControlOff / Max gain / Manual
White BalanceATW / Narrow ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter SpeedMinimum / Maximum / Anti-flicker (2~1/12,000sec) Prefer shutter control (Based on AI engine)
Video RotationFlip and Mirror
AnalyticsClassified object type : Person/Face/Vehicle/License plate Attributes : Vehicle (Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot
Analytics events based on AI engine

  • Object detection, virtual line (crossing/direction), virtual area (loitering/intrusion/enter/exit), motion detection analytics events
  • Tampering, fog detection, shock detection, virtual area (appear/disappear)

* Audio detection, sound classification (via optional I/O box SPM-4210)

Alarm TriggersAnalytics, network disconnect, alarm input (via optional I/O box SPM-4210), time schedule, MQTT subscription
Alarm EventsWhen the alarm trigger occurred

  • File upload (image) : e-mail/FTP/SFTP
  • File upload (video clip): FTP/SFTP
  • Notification : e-mail
  • Recording : SD/SDHC/SDXC or NAS recording at event triggers
  • Handover:  PTZ preset, send message by HTTP/HTTPS/TCP
  • Audio clip playback
  • MQTT: publication

* Alarm output (Via optional I/O box SPM-4210)

Light TypeIR LED(850nm)
IR Viewable LengthWise IR 200m(656.17ft)
Water RemovalSupport (Spin dry, Lens heater)
Auto-TrackingSupport
Object auto-tracking (person/vehicle) target lock tracking
Network
EthernetMetal shielded RJ-45 (10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual(5ea area), WiseStream II, WiseStream III (Based on AI Engine)
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast (20 users) / Multicast (128 users) Multiple streaming (up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
Application Programming InterfaceONVIF Profile S/G/T/M
Sunapi (HTTP API)
Hanwha Vision Open Platform
Security
OS / Firmware ProtectEncrypted Firmware, Secure Boot, Signed Firmware
User authenticationDigest Authentication, Prevent brute-force attacks
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS (Websocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption Credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate (Hanwha Vision Root CA)
Secure StorageTPM (Trusted Platform Module), HTPM(Hanwha trusted platform module), SD card partition encrypt
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge StorageMicro SD/SDHC/SDXC 2-slot 1TB (512GBx2)
Memory4GB RAM, 512MB Flash
Environmental and Electrical
Operating Temperature / Humidity
  • 40°F (-40 °C) ~ 131°F (55°C) / 165°F (73.89°C) (MAX) based on NEMA-TS 2(2.2.7)

* Start-up should be done at above -22 °F (-30 °C) 0~100%RH (Condensing) Humidity control with AIR vent

Storage Temperature / Humidity-58 °F (-50 °C) ~ 140°F (60°C) / 0~90% RH
Wind Load149.75 mph (241 km/h)
EPA (Effective Projected Area) : 0.035㎡
CertificationIP66, IK10, NEMA4X, NEMA-TS 2(2.2.7, 2.2.8, 2.2.9)
Input VoltagePoE++(IEEE802.3bt, Class6, Type3, Injector included)
Power ConsumptionTypical 24W, Max 40W
Mechanical
Color / MaterialBody : White / Aluminum Head : Black / Polycarbonate Hard-coated dome
RAL CodeWhite: RAL9003 / Black: RAL9005
Product Dimensionsø 6.22 inches (15.8 cm) x 11.55 inches (29.34 cm)
Weight7.05 lb (3.2 kg)
Certifications and Standards
EMCFCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A) CE/UKCA
EN 55032 Class A, EN 50130-4 VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
EnvironmentEN IEC 63000
IEC 60529 IP66, IEC 62262 IK10
NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9)
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 460.0 ft (140.21 m) / Tele: 10,652.56 ft (3,246.9 m)
Observe (63PPM/ 19PPF)Wide: 184.0 ft (56.08 m) / Tele: 4261.0 ft (1,298.75 m)
Recognize (125PPM/ 38PPF)Wide: 92.0 ft (28.04 m) / Tele: 2130.5 ft (649.38 m)
Identify (250PPM/ 76PPF)Wide: 46.0 ft (14.02 m) / Tele: 1065.2 ft (324.67 m)

Additional information

Weight9 lbs
Dimensions9 × 9 × 13 in
